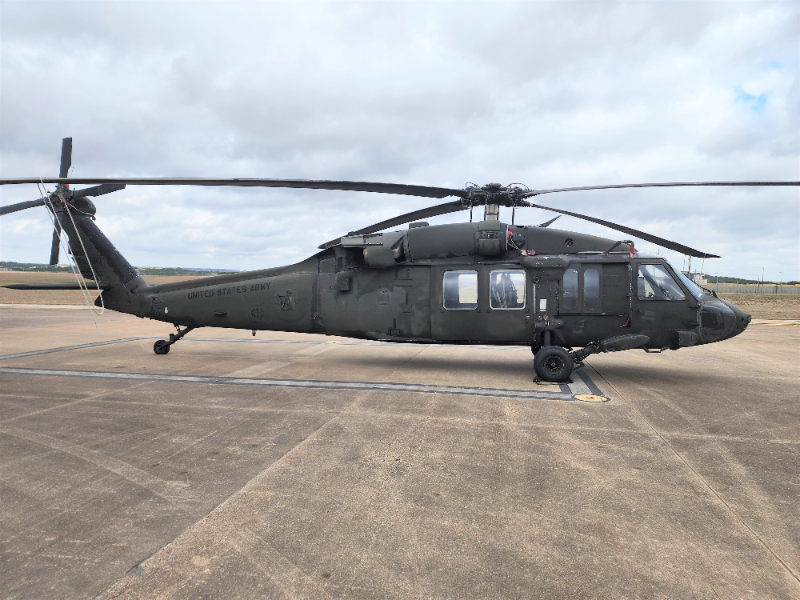

BladeStack UH-60L Demo

Component	PN	Serial	TSN	Hours at install	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
LATERAL SWASHPLATE LINK	70400-08151-061	1515206996	545.5	7,132 ACFT Hours at Install	2.9%	97.1%	18,454	19,000	$6,697
FORWARD BELLCRANK	70400-08101-046	2473	545.0	7,556 ACFT Hours at Install	2.9%	97.1%	18,455	19,000	$9,941
STATIONARY SWASHPLATE PARENT: SWASHPLATE ASSY	70104-08010-044	A22205802	545.0	423 Parent Component Hours at Install	2.9%	97.1%	18,455	19,000	$63,136
MAIN ROTOR SHAFT PARENT: MAIN TRANSMISSION MODULE	70351-38131-042	D32704988	545.5	0 Parent Component Hours at Install	3.0%	97.0%	17,454	18,000	$24,742
MAIN ROTOR SHAFT EXTENDER	70351-08186-043	A28600107	10,907.5	7,132 ACFT Hours at Install	68.2%	31.8%	5,092	16,000	$14,411
SERVO ASSY, TAIL ROTOR	70410-06520-046	B30003051	5,786.0	6,195 ACFT Hours at Install	38.6%	61.4%	9,214	15,000	$59,891
LEFT TIE ROD ASSY	70400-08115-046	34402249	2,504.0	5,528 ACFT Hours at Install	17.9%	82.1%	11,496	14,000	$14,781
BIFILAR, M/R ROTOR ASSY	70107-08400-046	AIM00454	545.0	7,556 ACFT Hours at Install	4.2%	95.8%	12,455	13,000	$64,335
SAS ACTUATOR	70410-02500-049	B11207917	7,942.5	7,132 ACFT Hours at Install	61.1%	38.9%	5,058	13,000	$7,353
SAS ACTUATOR	70410-02500-049	C11205947	2,666.0	5,528 ACFT Hours at Install	20.5%	79.5%	10,334	13,000	$15,024
SAS ACTUATOR	70410-02500-049	C11250651	2,985.0	6,308 ACFT Hours at Install	23.0%	77.0%	10,015	13,000	$14,560
AFT BELLCRANK	70400-08102-045	34503679	545.5	7,132 ACFT Hours at Install	4.2%	95.8%	12,454	13,000	$10,059
O/B RETENTION PLATE (T/R)	70102-11101-042	R25700636	1,057.0	7,556 ACFT Hours at Install	8.8%	91.2%	10,943	12,000	$12,410
PLANETARY CARRIER ASSY PARENT: MAIN TRANSMISSION MODULE	70351-38175-042	A31803017	545.5	0 Parent Component Hours at Install	4.5%	95.5%	11,454	12,000	$42,954
I/B RETENTION PLATE T/R PARENT: TAIL ROTOR GEARBOX ASSY	70358-06612-042	FM3238	2,240.1	5,584 Parent Component Hours at Install	18.7%	81.3%	9,760	12,000	$15,117
NUT,PLAIN,ROUND PARENT: SPINDLE,HEAD,ROTARYWING	70102-08105-102	G47904378	114.1	0 Parent Component Hours at Install	1.0%	99.0%	11,886	12,000	$1,358
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	C479-15382	2,527.0	0 Parent Component Hours at Install	21.1%	78.9%	9,473	12,000	$1,082
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	C479-02743	5,554.0	684 Parent Component Hours at Install	46.3%	53.7%	6,446	12,000	$736
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	F479-00777	3,106.0	357 Parent Component Hours at Install	25.9%	74.1%	8,894	12,000	$1,016
LATERAL SERVO BELLCRANK	70400-08166-041	F33707376	545.5	7,132 ACFT Hours at Install	5.0%	95.0%	10,454	11,000	$10,077
ROTATING SWASHPLATE PARENT: SWASHPLATE ASSY	70104-08001-045	C32601448	545.0	423 Parent Component Hours at Install	5.0%	95.0%	10,455	11,000	$61,780
NUT ASSY, MAIN ROTOR	70103-08005-104	211	545.5	7,132 ACFT Hours at Install	6.1%	93.9%	8,454	9,000	$2,318
PISTON, MAIN L/GEAR STR PARENT: FWD FIXED GEAR SHOCK	70250-12067-102	BEM0974	1,132.1	0 Parent Component Hours at Install	12.6%	87.4%	7,868	9,000	$4,152
PISTON, MAIN L/GEAR STR PARENT: FWD FIXED GEAR SHOCK	70250-12067-102	IA07405	3,835.0	0 Parent Component Hours at Install	42.6%	57.4%	5,165	9,000	$2,726
MAIN ROTOR BLADE ASSY	70150-09100-043	A00703246	4,930.4	7,375 ACFT Hours at Install	56.0%	44.0%	3,870	8,800	$71,913
MAIN ROTOR BLADE ASSY	70150-09100-043	A00715388	2,266.1	7,564 ACFT Hours at Install	25.8%	74.2%	6,534	8,800	$121,427
MAIN ROTOR BLADE ASSY	70150-09100-043	A00717045	927.0	7,132 ACFT Hours at Install	10.5%	89.5%	7,873	8,800	$146,313
MAIN ROTOR BLADE ASSY	70150-09100-043	A007-07662	6,766.0	6,658 ACFT Hours at Install	76.9%	23.1%	2,034	8,800	$37,800
CONTROL HORN ASSY PARENT: SPINDLE,HEAD,ROTARYWING	70102-08111-047	H24104483	114.1	0 Parent Component Hours at Install	1.3%	98.7%	8,586	8,700	$7,916
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	E241-01066	2,527.0	0 Parent Component Hours at Install	29.0%	71.0%	6,173	8,700	$5,691
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	A241-18986	3,433.0	0 Parent Component Hours at Install	39.5%	60.5%	5,267	8,700	$4,856
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	A241-18020	3,106.0	0 Parent Component Hours at Install	35.7%	64.3%	5,594	8,700	$5,158
HOUSING ASSY MGB PARENT: MAIN TRANSMISSION MODULE	70351-38110-045	J30700240	545.5	0 Parent Component Hours at Install	6.7%	93.3%	7,654	8,200	$95,275
MAIN ROTOR SPINDLE ASSY	70102-08200-069	A001-07172	3,106.0	5,507 ACFT Hours at Install	50.1%	49.9%	3,094	6,200	$47,907
MAIN ROTOR SPINDLE ASSY	70102-08200-069	A001-07895	3,433.0	5,507 ACFT Hours at Install	55.4%	44.6%	2,767	6,200	$42,844
MAIN ROTOR SPINDLE ASSY	70102-08200-069	D001-01392	2,527.0	5,507 ACFT Hours at Install	40.8%	59.2%	3,673	6,200	$56,872
SPINDLE,HEAD,ROTARYWING	70102-08200-073	A00118383	114.1	7,564 ACFT Hours at Install	1.8%	98.2%	6,086	6,200	$94,233
GEARSHAFT, BEVEL PARENT: TAIL ROTOR GEARBOX ASSY	70358-06620-102	G32000170	1,930.5	3,766 Parent Component Hours at Install	33.3%	66.7%	3,870	5,800	$23,350
FWD BELLCRANK SPT ASSY	70400-08162-042	B36710427	545.5	7,132 ACFT Hours at Install	10.1%	89.9%	4,854	5,400	$18,679
HUB, M/R ROTOR ASSY	70103-08112-047	B30800175	1,377.5	7,132 ACFT Hours at Install	27.0%	73.0%	3,722	5,100	$135,032
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	G23702909	3,433.6	4,627 Parent Component Hours at Install	68.7%	31.3%	1,566	5,000	$3,594
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	H23705282	311.1	2,152 Parent Component Hours at Install	6.2%	93.8%	4,689	5,000	$10,758
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	H23705740	927.0	0 Parent Component Hours at Install	18.5%	81.5%	4,073	5,000	$9,344
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	A237-15899	2,965.0	4,950 Parent Component Hours at Install	59.3%	40.7%	2,035	5,000	$4,669
FAN AXIAL	70361-03005-107	D51202936	3,407.0	7,556 ACFT Hours at Install	14.2%	85.8%	3,295	3,840	$29,604
T/R PITCH CHANGE SHAFT	70400-06100-042	138300786	545.5	7,132 ACFT Hours at Install	18.9%	81.1%	2,334	2,880	$7,164

Component	PN	Serial	TSN	Hours at install	TSN % of ACFT	Value remaining
MAIN TRANSMISSION MODULE	70351-48100-042	A80301669	545.5	7,132 ACFT Hours at Install	7.1%	$1,445,000
TAIL ROTOR GEARBOX ASSY	70358-06600-046	A00601289	5,696.5	7,132 ACFT Hours at Install	74.2%	$195,500
INPUT MODULE	70351-08001-050	A26405642	4,996.0	7,556 ACFT Hours at Install	65.1%	$192,950
INPUT MODULE	70351-08001-046	A264-00305	7,589.0	1,000 ACFT Hours at Install	98.8%	$192,100
SWASHPLATE ASSY	70104-08000-050	A10706162	545.0	7,556 ACFT Hours at Install	7.1%	$167,492
TAIL ROTOR BLADE ASSY	70101-31000-043	A00906692	2,448.5	7,132 ACFT Hours at Install	31.9%	$116,875
TAIL ROTOR BLADE ASSY	70101-31000-043	A009-09593	1,683.5	7,132 ACFT Hours at Install	21.9%	$116,875
FWD FIXED GEAR SHOCK	70250-12051-045	BEM0974	1,132.1	6,546 ACFT Hours at Install	14.7%	$95,692
FWD FIXED GEAR SHOCK	70250-12051-045	IA01471	3,835.0	3,843 ACFT Hours at Install	49.9%	$95,692
SERVO, PRIMARY MAIN ROTOR	70410-02820-055	B30304646AB	5,117.5	7,132 ACFT Hours at Install	66.7%	$92,225
SERVO, PRIMARY MAIN ROTOR	70410-02820-055	B30301698B	4,393.5	7,132 ACFT Hours at Install	57.2%	$92,225
SERVO, PRIMARY MAIN ROTOR	70410-02820-055	B30301549B	4,871.5	7,132 ACFT Hours at Install	63.4%	$92,225
ATTITUDE HEADING REFERENCE UNIT	765100-200	1000	1,236.0	7,457 ACFT Hours at Install	16.1%	$69,417
STABILATOR ACTUATOR	DL2155M31MOD1	2865	545.5	7,132 ACFT Hours at Install	7.1%	$64,175
STABILATOR ACTUATOR	DL2155M31MOD1	2698	545.5	7,132 ACFT Hours at Install	7.1%	$64,175
GENERATOR	28B302-8-DM	5344	3,348.0	5,505 ACFT Hours at Install	43.6%	$63,822
GENERATOR	28B302-8-DM	1999E	3,763.0	4,572 ACFT Hours at Install	49.0%	$63,822
AUTOMAT FLT CONT COMPUTER	825050-1-001	4175	3,294.6	7,147 ACFT Hours at Install	42.9%	$46,750
MIXER ASSEMBLY	70400-02300-048	B99503282	545.5	7,132 ACFT Hours at Install	7.1%	$37,825
PUMP MODULE ASSY, HYDRAULIC	53023-07	208919ABR	1,473.3	7,222 ACFT Hours at Install	19.2%	$36,975
PUMP MODULE ASSY, HYDRAULIC	53023-06	K5577ABR	5,962.0	5,860 ACFT Hours at Install	77.7%	$36,975
PUMP MODULE ASSY, HYDRAULIC	53023-06	K4679ABR	3,764.0	3,914 ACFT Hours at Install	49.0%	$36,975
ACCESSORY MODULE	70351-08080-045	A25805949	4,941.0	5,294 ACFT Hours at Install	64.4%	$36,422
ACCESSORY MODULE	70351-08080-043	A258-00967	6,250.0	2,011 ACFT Hours at Install	81.4%	$36,422
TAIL CONE FITTING	70219-05001-042	B497-00737	7,678.0	5,578 ACFT Hours at Install	100.0%	$34,000
INTERMEDIATE GEARBOX	70357-06300-042	A005-03863	3,766.0	4,929 ACFT Hours at Install	49.0%	$33,079
VALVE, SOLENIOD	3213850-3-1	26943	114.1	7,564 ACFT Hours at Install	1.5%	$32,304
VALVE, SOLENIOD	3213850-3-1	23660	61.2	7,617 ACFT Hours at Install	0.8%	$32,304
ENGINE SEQUENCING UNIT	2118806-2-2	64B1520	1,720.0	7,638 ACFT Hours at Install	22.4%	$28,679
ACCUMULATOR	3197170-5	9213031A	1,855.1	7,566 ACFT Hours at Install	24.2%	$27,476
STABILATOR AMPLIFIER (DUAL)	1011445-1	5473	1,947.0	5,731 ACFT Hours at Install	25.4%	$26,775
PANEL INDICATOR (PDU)	100-601581-000	6962	545.0	7,556 ACFT Hours at Install	7.1%	$19,524
DAMPER ASSY, M/R	70106-08100-046	WG1350500739	545.5	7,132 ACFT Hours at Install	7.1%	$18,371
DAMPER ASSY, M/R	70106-08100-046	WG1350500701	545.5	7,132 ACFT Hours at Install	7.1%	$18,371
DAMPER ASSY, M/R	70106-08100-046	WG1379100138	545.5	7,132 ACFT Hours at Install	7.1%	$18,371
DAMPER ASSY, M/R	70106-08100-046	WG1350500742	545.5	7,132 ACFT Hours at Install	7.1%	$18,371
ELASTOMERIC BEARING PARENT: SPINDLE,HEAD,ROTARYWING	SB7001-048	D20217810	114.1	0 Parent Component Hours at Install	1.5%	$16,996
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	LK6602	3,082.0	356 Parent Component Hours at Install	40.1%	$16,996
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	B324-19128	3,409.0	1,262 Parent Component Hours at Install	44.4%	$16,996
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	B324-24021	3,082.0	935 Parent Component Hours at Install	40.1%	$16,996
INDICATOR, HEIGHT	A3060591	791AA	2,100.0	5,578 ACFT Hours at Install	27.4%	$15,300
DRIVESHAFT ASSY ENGINE	70361-08014-041	C845-02673	3,106.0	4,929 ACFT Hours at Install	40.5%	$14,684
DRIVESHAFT ASSY ENGINE	70361-08014-041	C84503790	3,737.0	7,556 ACFT Hours at Install	48.7%	$14,684
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	A272-07693	6,084.0	4,929 ACFT Hours at Install	79.2%	$13,494
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	WG1020800190	2,749.0	4,929 ACFT Hours at Install	35.8%	$13,494
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	A272-07698	6,084.0	4,929 ACFT Hours at Install	79.2%	$13,494
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	B84910885	1,211.8	4,713 Parent Component Hours at Install	15.8%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	A84911616	1,950.1	2,152 Parent Component Hours at Install	25.4%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	B84907232	1,412.8	709 Parent Component Hours at Install	18.4%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	B84901745	2,176.0	4,590 Parent Component Hours at Install	28.3%	$12,591
RECEIVER-TRANSMITTER, RADAR ALT	HG7209AD01	0592AA	1,624.0	6,054 ACFT Hours at Install	21.2%	$12,015
AFT WALKING BEAM	70400-08104-048	E34610244	3,215.5	7,132 ACFT Hours at Install	41.9%	$11,513
PANEL INDICATOR (PDU)	70450-01916-104	2866	3,766.0	5,528 ACFT Hours at Install	49.0%	$9,860
SHOCK ABSORBER (TAIL)	70250-13101-044	BMC290	2,040.4	7,375 ACFT Hours at Install	26.6%	$9,779
FITTING,STRUCTURALCOMPONENT, AIRCRAFT	70209-22103-067	61088214	7,678.0	6,395 ACFT Hours at Install	100.0%	$8,500
FITTING,STRUCTURALCOMPONENT, AIRCRAFT	70209-22103-071	61808214	7,678.0	6,395 ACFT Hours at Install	100.0%	$8,500
FITTING,STRUCTURALCOMPONENT, AIRCRAFT	70209-22103-069	61808214	7,679.0	6,395 ACFT Hours at Install	100.0%	$8,500
SERVO BEAM FITTING	70209-22103-065	61808214	7,678.0	6,395 ACFT Hours at Install	100.0%	$8,500
SHAFT ASSY, T/R DRV SEC 7	70361-06002-047	A27400694	10,870.5	7,132 ACFT Hours at Install	141.6%	$4,708
AFT BELLCRANK SPT ASSY	70400-08163-043	36507944	545.0	7,556 ACFT Hours at Install	7.1%	$7,948
TAIL PYLON FITTING	70209-06051-043	A496-01236	7,678.0	0 ACFT Hours at Install	100.0%	$7,930
THRUST BEARING PARENT: SPINDLE,HEAD,ROTARYWING	SB7002-048	B32542542	710.1	0 Parent Component Hours at Install	9.2%	$7,646
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	B325-27096	3,082.0	356 Parent Component Hours at Install	40.1%	$7,646
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	B325-25355	3,409.0	1,262 Parent Component Hours at Install	44.4%	$7,646
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	B325-34673	3,093.0	935 Parent Component Hours at Install	40.3%	$7,646
TIE ROD (M/R SPINDLE) PARENT: SPINDLE,HEAD,ROTARYWING	38023-10372-101	D50400935	114.1	0 Parent Component Hours at Install	1.5%	$6,375
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	C504-06824	2,527.0	0 Parent Component Hours at Install	32.9%	$6,375
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	D504-00104	3,433.0	0 Parent Component Hours at Install	44.7%	$6,375
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	C504-04673	3,106.0	0 Parent Component Hours at Install	40.5%	$6,375
SHAFT ASSY, T/R DRV SEC 2	70361-03009-047	WG3002700097	545.0	7,556 ACFT Hours at Install	7.1%	$6,105
AFT TIE ROD ASSY	70400-08111-043	E392-00428	6,332.0	1,346 ACFT Hours at Install	82.5%	$5,173
SHAFT ASSY, T/R DRV SEC 6	70361-05002-045	A273-01386	7,678.0	4,929 ACFT Hours at Install	100.0%	$5,088
SHAFT ASSY, T/R DRV SEC 1	70361-03001-045	A271-01376	7,678.0	4,929 ACFT Hours at Install	100.0%	$4,671
BLADE PIN, SOLID	70103-08108-041	B94164578	545.0	7,556 ACFT Hours at Install	7.1%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94165409	545.0	7,556 ACFT Hours at Install	7.1%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94108089	3,521.0	4,929 ACFT Hours at Install	45.9%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94165679	545.0	7,556 ACFT Hours at Install	7.1%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94165426	545.0	7,556 ACFT Hours at Install	7.1%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94165684	545.0	7,556 ACFT Hours at Install	7.1%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94165683	545.0	7,556 ACFT Hours at Install	7.1%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94165367	545.0	7,556 ACFT Hours at Install	7.1%	$4,165
RIGHT TIE ROD ASSY	70400-08165-043	B366-01052	6,332.0	1,346 ACFT Hours at Install	82.5%	$3,996
BRNG T/R PITCH CHG SHFT PARENT: T/R PITCH CHANGE SHAFT	SB1162-102	13646	545.5	0 Parent Component Hours at Install	7.1%	$3,484
CTG AIRCRAFT FIRE EXT	897899-1	015757	111.7	7,566 ACFT Hours at Install	1.5%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	084255	1,019.6	6,658 ACFT Hours at Install	13.3%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	022959	1,019.6	6,658 ACFT Hours at Install	13.3%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	015766	111.7	7,566 ACFT Hours at Install	1.5%	$2,398
AFT TIE ROD SUPT FITTING	70400-08112-046	D391-00431	6,332.0	1,346 ACFT Hours at Install	82.5%	$974

Component	PN	Serial	TSN	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
TIE ROD COMPRESSOR PARENT: COLD SECTION MODULE	5043T04P02	GATJA2LG	149.0	1.5%	98.5%	9,851	10,000	$34,130
RING, SPACER COMPRESSOR PARENT: COLD SECTION MODULE	5066T79P01	FCV26M04	149.0	1.5%	98.5%	9,851	10,000	$11,105
COMPRESSOR REAR SHAFT PARENT: COLD SECTION MODULE	6080T48P01	F1A0LGAH	149.0	1.8%	98.2%	8,351	8,500	$74,275
GAS GEN TURBINE SHAFT PARENT: COLD SECTION MODULE	6068T44P02	NCU5634E	149.0	1.9%	98.1%	7,851	8,000	$89,593
STAGE 1 BLISK PARENT: COLD SECTION MODULE	6043T56G02	GLHW2J5C	149.0	2.1%	97.9%	6,851	7,000	$90,291
STAGE 2 BLISK PARENT: COLD SECTION MODULE	6032T27P08	GLHW2IA	149.0	2.1%	97.9%	6,851	7,000	$65,705
STAGE 3 & 4 BLISK PARENT: COLD SECTION MODULE	6038T08P04	GLHW2967	149.0	2.1%	97.9%	6,851	7,000	$87,845
STAGE 5 BLISK PARENT: COLD SECTION MODULE	6038T09P04	GLHW23CT	149.0	2.1%	97.9%	6,851	7,000	$47,119
STAGE 1 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T06P03	GATJ37HJ	2,237.0	32.0%	68.0%	4,763	7,000	$73,099
STAGE 2 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T12P03	GATJ3C1E	2,237.0	32.0%	68.0%	4,763	7,000	$69,158
STG 1 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T09P01	GFF5HJL4	2,237.0	32.0%	68.0%	4,763	7,000	$59,424
COMPRESSOR IMPELLER PARENT: COLD SECTION MODULE	6055T59P03	GLHTN67R	1,974.0	39.5%	60.5%	3,026	5,000	$74,082
STAGE 3 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T32P02	GATHP4T5	2,708.0	54.2%	45.8%	2,292	5,000	$41,848
STAGE 4 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T34P06	GATHP05H	2,708.0	54.2%	45.8%	2,292	5,000	$55,032
POWER TURBINE SHAFT PARENT: POWER TURBINE MODULE	5125T92G01	GATHPW1K	463.0	9.3%	90.7%	4,537	5,000	$204,821
STG 2 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	4106T80P01	GFF5HJ32	2,237.0	44.7%	55.3%	2,763	5,000	$42,784
STG 2 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T07P06	GFF5HJJN	2,237.0	53.3%	46.7%	1,963	4,200	$30,229
STG 1 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T08P03	GFF5HJGR	2,237.0	58.9%	41.1%	1,563	3,800	$33,024

Component	PN	Serial	TSN	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
TIE ROD COMPRESSOR PARENT: COLD SECTION MODULE	5043T04P02	GATHCM7K	2,457.0	24.6%	75.4%	7,543	10,000	$26,133
RING, SPACER COMPRESSOR PARENT: COLD SECTION MODULE	5066T79P01	BFM77839	2,125.0	21.2%	78.8%	7,875	10,000	$8,877
COMPRESSOR REAR SHAFT PARENT: COLD SECTION MODULE	6080T48P01	FIAATLLE	1,507.0	17.7%	82.3%	6,993	8,500	$62,197
GAS GEN TURBINE SHAFT PARENT: COLD SECTION MODULE	6068T44P02	GATJ85DD	1,006.0	12.6%	87.4%	6,994	8,000	$79,814
STAGE 1 BLISK PARENT: COLD SECTION MODULE	6043T56G02	GLHW09AE	1,006.0	14.4%	85.6%	5,994	7,000	$78,996
STAGE 2 BLISK PARENT: COLD SECTION MODULE	6032T27P08	GLHW1FC1	1,006.0	14.4%	85.6%	5,994	7,000	$57,486
STAGE 3 & 4 BLISK PARENT: COLD SECTION MODULE	6038T08P04	GLHW043L	1,006.0	14.4%	85.6%	5,994	7,000	$76,857
STAGE 5 BLISK PARENT: COLD SECTION MODULE	6038T09P04	GLHW03WT	1,006.0	14.4%	85.6%	5,994	7,000	$41,225
STAGE 1 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T06P03	GATHHDN5	1,627.0	23.2%	76.8%	5,373	7,000	$82,461
STAGE 2 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T12P03	GATJ2C1K	2,278.0	32.5%	67.5%	4,722	7,000	$68,563
STG 1 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T09P01	GFF5FF1M	2,121.0	30.3%	69.7%	4,879	7,000	$60,871
COMPRESSOR IMPELLER PARENT: COLD SECTION MODULE	6055T59P03	GLHW0M7F	1,006.0	20.1%	79.9%	3,994	5,000	$97,781
STAGE 3 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T32P02	GATHMFCL	2,945.0	58.9%	41.1%	2,055	5,000	$37,520
STAGE 4 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T34P06	GATHMF9W	2,945.0	58.9%	41.1%	2,055	5,000	$49,341
POWER TURBINE SHAFT PARENT: POWER TURBINE MODULE	5125T92G01	GATJ8D3C	1,006.0	20.1%	79.9%	3,994	5,000	$180,308
STG 2 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	4106T80P01	GFF5GECE	2,778.0	55.6%	44.4%	2,222	5,000	$34,407
STG 2 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T07P06	GFF5FF0F	3,132.0	74.6%	25.4%	1,068	4,200	$16,446
STG 1 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T08P03	GFF5CH3F	2,066.0	54.4%	45.6%	1,734	3,800	$36,637

Component	PN	Serial	TSN	TSN % of Engine	Value remaining
COLD SECTION MODULE	6071T25G01	GEC614184	2,237.0	100.0%	$421,896
COMBUSTION LINER	6080T13G08	ACK003C5	149.0	6.7%	$282,885
MTCHD ROTOR/STATOR ASSY	3048T90G01	MRSCK430	2,237.0	100.0%	$265,200
FUEL CONTROL (HMU)	4046T52G42	15215021	3,241.0	144.9%	$154,753
ACCESSORY MODULE	6071T27G01	GED614184	2,237.0	100.0%	$256,588
STAGE 1 NOZZLE ASSY	6071T04G32	MDK3MAWC	2,237.0	100.0%	$137,275
POWER TURBINE MODULE	6071T26G02	GEL767423C	4,435.0	198.3%	$67,500
PARTICLE SEPARATOR BLOWER	6034T62P18	SUPL0496	2,237.0	100.0%	$67,076
EDECU	4155T12P09	20USG5015	1,037.0	46.4%	$35,700
VALVE ASSEMBLY, ANTI- ICING, JET EN	5066T38G09	GRTV1578	3,657.0	163.5%	$14,425
NO 1 BALL BEARING PARENT: OUTPUT SHAFT ASSY	6064T34P02	FCAKR206	149.0	6.7%	$20,903
HISTORY RECORDER	4046T26G05	LMDH7845	149.0	6.7%	$20,025
O/S DRAIN VALVE ASSY	3046T17G02	APM457JP	2,237.0	100.0%	$19,437
COOLER, OIL	4046T25G06	UDDK7644	2,237.0	100.0%	$12,563
NO 2 ROLLER BEARING PARENT: OUTPUT SHAFT ASSY	5121T46P02	FCAJL237	149.0	6.7%	$12,360

Component	PN	Serial	TSN	TSN % of Engine	Value remaining
COLD SECTION MODULE	6071T25G01	GEC002280	5,084.0	85.8%	$421,896
COMBUSTION LINER	6080T13G08	GGM9T8CH	1,006.0	17.0%	$282,885
MTCHD ROTOR/STATOR ASSY	3048T90G01	MRSGG587	3,195.0	53.9%	$265,200
FUEL CONTROL (HMU)	4046T52G42	22040365	1,006.0	17.0%	$263,080
ACCESSORY MODULE	6071T27G01	GED001742	1,006.0	17.0%	$256,588
STAGE 1 NOZZLE ASSY	6071T04G32	MDK4AD59	1,006.0	17.0%	$137,275
POWER TURBINE MODULE	6071T26G02	GEL002979C	5,286.0	89.2%	$114,750
PARTICLE SEPARATOR BLOWER	6034T62P18	GHJ03625	1,006.0	17.0%	$67,076
EDECU	4155T12P09	22USG6538	1,006.0	17.0%	$35,700
VALVE ASSEMBLY,ANTI- ICING,JET ENGINE	4046T28G14	COMH5197	1,006.0	17.0%	$24,522
NO 1 BALL BEARING PARENT: OUTPUT SHAFT ASSY	6064T34P02	FCAFP720	5,084.0	85.8%	$20,903
HISTORY RECORDER	4046T26G05	LMDH2152	1,006.0	17.0%	$20,025
O/S DRAIN VALVE ASSY	3046T17G02	APM321JC	1,653.0	27.9%	$19,437
COOLER, OIL	4046T25G06	UDDK9432	1,006.0	17.0%	$12,563
NO 2 ROLLER BEARING PARENT: OUTPUT SHAFT ASSY	5121T46P02	FCAGB912	5,084.0	85.8%	$12,360

Insp #	Item	Type	Frequency	Completed	Next due	Life used %	Life remaining %	Status	Price	Value remaining
A160	90 DAY CORROSION INSPECTION	Calendar	90 D	03 Jan 2026	03 Apr 2026	202.2%	-102.2%	DUE	$10,152	$0
A501	MAIN ROTOR BLADE SPAR PRESSURE CHECK	Calendar	6 M	26 Aug 2025	26 Feb 2026	170.1%	-70.1%	DUE	$1,897	$0
A665	REPLACE FUEL CELL O-RING SEAL PN MS29513-215	Calendar	48 M	26 Apr 2022	26 Apr 2026	104.7%	-4.7%	DUE	$20,000	$0
A673	FUEL CELL CORROSION INSPECTION	Calendar	48 M	26 Apr 2022	26 Apr 2026	104.7%	-4.7%	DUE	$20,000	$0
A533	PITOT STATIC SYSTEM INSPECTION	Calendar	12 M	25 Jun 2025	25 Jun 2026	102.5%	-2.5%	DUE	$5,147	$0
A675	FLIGHT CONTROL RODS INSPECTION	Calendar	48 M	30 Jun 2022	30 Jun 2026	100.3%	-0.3%	DUE	$20,000	$0
A670	CABIN TUB INSPECTION	Calendar	48 M	05 Jul 2022	05 Jul 2026	99.9%	0.1%	NEAR DUE	$20,000	$20
A399	PMI DUE	Calendar	48 M	10 Jul 2022	10 Jul 2026	99.6%	0.4%	NEAR DUE	$80,000	$320
A473	REPLACE T/R SHAFT SUPPORT BEARINGS (AFT)	Hours	2880 H	4929.1	7809.1	95.4%	4.6%	NEAR DUE	$10,000	$460
A472	REPLACE T/R SHAFT SUPPORT BEARINGS (CENTER)	Hours	2880 H	4929.1	7809.1	95.4%	4.6%	NEAR DUE	$10,000	$460
A471	REPLACE T/R SHAFT SUPPORT BEARINGS (FWD)	Hours	2880 H	4929.1	7809.1	95.4%	4.6%	NEAR DUE	$10,000	$460
A210	120 HOUR INSPECTION REQUIREMENTS	Hours	120 H	7565.9	7685.9	93.4%	6.6%	NEAR DUE	$12,766	$843
A470	REPLACE NUMBER TWO CROSSFEED VALVE	Hours	1500 H	6429.1	7929.1	83.3%	16.7%	NEAR DUE	$10,000	$1,670
A296	INSPECT STABILATOR ATTACH FITTINGS	Hours	360 H	7374.6	7738.4	83.2%	16.8%	NEAR DUE	$4,223	$709
A110	PMS 40 HOUR INSPECTION	Hours	40 H	7644.2	7685.9	80.3%	19.7%	NEAR DUE	$6,325	$1,246
A401	PMI-2	Hours	960 H	7566.3	8046.3	61.6%	38.4%	OK	$230,000	$88,320
A477	REPLACEMENT OF STABILATOR ACTUATOR BOLTS	Hours	5000 H	4929.1	9929.1	55.0%	45.0%	OK	$10,000	$4,500
A625	REPLACEMENT OF SLAB BATTERY (SLAB)	Calendar	60 M	13 Nov 2024	13 Nov 2029	32.8%	67.2%	OK	$5,000	$3,360
A480	REPLACE PIVOT BOLT 70400-08159-101,102,103,1 04	Hours	10000 H	4929.1	14929.1	27.5%	72.5%	OK	$10,000	$7,250
A485	REPLACE BELLCRANK BOLT 70400-08159-105,106,1 07,108	Hours	10000 H	4929.1	14929.1	27.5%	72.5%	OK	$10,000	$7,250
A305	LUBRICATE ROTARY INPUTS	Hours	480 H	7565.9	8045.9	23.4%	76.6%	OK	$10,037	$7,688
A320	ENGINE INSPECTION CLEANING	Hours	480 H	7565.9	8045.9	23.4%	76.6%	OK	$2,240	$1,716
A648	REPLACE T/R SPRING CAPSULE ASSY	Calendar	180 M	23 Nov 2023	23 Nov 2038	17.4%	82.6%	OK	$20,000	$16,520
A400	PMI-1	Hours	960 H	7566.3	8526.3	11.6%	88.4%	OK	$125,000	$110,500

This aircraft has multiple open restrictions affecting airworthiness: restricted from cargo hook operations due to removed hardware, restricted from GPS navigation due to inoperative 128D screen, restricted from UHF use due to control head removal, and restricted from hostile environments due to missing armor wing cable. Additionally, trim is inoperative restricting IMC/overwater operations, and blade de-ice is inoperative restricting flight in icing conditions.

Fault 2026-01-09 7,675.2 hrs high

Aircraft restricted from cargo hook operations due to removed cargo hook hardware, preventing slingload missions.

AIRCRAFT RESTRICTED FROM CARGO HOOK OPERATIONS DUE TO REMOVAL OF SQUIB FOR BEST PROGRAM TURN IN | status: open | recorded 2026-01-09 @ 7675.2h
Fault 2025-07-19 7,618.4 hrs high

Aircraft restricted from GPS navigation due to inoperative 128D screen, limiting navigation capability.

AIRCRAFT RESTRICTED FROM GPS NAVIGATION DUE TO 128D SCREEN NOT POWERING ON. | resolved: REPLACED SN:2542B | status: closed | recorded 2025-07-19 @ 7618.4h | closed 2025-08-15 @ 7637.5h
Fault 2025-08-20 7,643.0 hrs high

Aircraft restricted from GPS navigational flight due to inoperative 128D screen.

ACFT RESTRICTED FROM GPS NAVIGATIONAL FLIGHT DUE TO COPILOTS # 1 NEEDLE INDICATING 10 DEGREES AND PILOTS #1 GPS NEEDLE INDICA TING 180 DEGREES DEVIATION FROM INTENDED COURSE | resolved: REPLACED PILOTS HSI SN:0923 WITH SN:0756 | status:…
Fault 2025-09-25 7,667.3 hrs high

Aircraft restricted from UHF use due to UHF control head removal, limiting communications.

AIRCRAFT RESTRICTED FROM UHF USE DUE TO UHF CONTROL HEAD INOPE RABILITY. UHF CONTROL HEAD REQUIRES REPLACEMENT. | resolved: REPLACED WITH UHF CONTROL HEAD S/N: AB0074. | status: closed | recorded 2025-09-25 @ 7667.3h | closed 2025-10-07 @…
Fault 2025-05-30 7,591.8 hrs high

Aircraft restricted from flight in hostile environments due to missing armor wing cable.

ACFT RESTRICTED FROM FLIGHT IN HOSTILE ENVIRONMENTS DUE TO TRA SNPONDER NOT TAKING MODE 5 KEYS | resolved: New Keys Loaded, Fault Corrected | status: closed | recorded 2025-05-30 @ 7591.8h | closed 2025-06-17 @ 7595.9h
Fault 2025-03-08 7,565.9 hrs high

Right side windshield heater inoperative, aircraft restricted from known icing conditions.

RIGHT SIDE WINDSHIELD HEATER IS INOP, AIRCRAFT IS RESTRICTED FROM KNOWN ICING | resolved: REPLACED WINDSHIELD AND APPLIED PROSEAL | status: closed | recorded 2025-03-08 @ 7565.9h | closed 2025-04-08 @ 7565.9h
Fault 2025-03-08 7,565.9 hrs high

Main rotor blade de-ice inoperative, aircraft restricted from known icing conditions.

M/R BLADE DEICE IS INOP, AIRCRAFT IS RESTRICTED FROM KNOWN ICI NG CONDITIONS | resolved: Replaced Yellow Blade De Ice Harness Sn: 4551 With Sn: 203 7294 Moc Completed, Check Found Okay | status: closed | recorded 2025-03-08 @ 7565.9h |…
Fault 2025-02-19 7,565.9 hrs high

Aircraft restricted from icing conditions due to main rotor blade ground de-ice system failure.

AIRCRAFT RESTRICTED FROM ICING CONDITIONS, M/R BLADE GROUND WI RE 4EA NOT INSTALLED. TO BE INSTALLED UPON HARWARE ARRIVAL | resolved: AIRCRAFT RESTRICTED FROM FLYING TO KNOWN STATIC ELECTRICIT Y | status: closed | recorded 2025-02-19 @…
Fault 2025-01-30 7,565.9 hrs high

Aircraft restricted from known static electricity environments due to missing bonding jumpers.

AIRCRAFT RESTRICTED FROM KNOWN STATIC ELECTRICITY CONDITIONS, M/R BLADE GROUND WIRE 4EA NOT INSTALLED. TO BE INSTALLED UPON HARWARE ARRIVAL | resolved: INSTALLED REFER TO: "BLADE CUFF BONDING JUMPERS NOT INSTA LLED 3EA [BLUE,RED,YELLOW]"…
Fault 2025-04-16 7,565.9 hrs high

Pilot collective friction at 10 lbs, aircraft restricted from flight until adjusted.

PILOTS COLLECTIVE FRICTION IS AT 10 LBS. AIRCRAFT IS RESTRICTE D FROM INTENTIONAL FLIGHT INTO TURBULENCE WITH A SLING LOAD AT TACHED. | resolved: REPLACED COLLET BLOCKS. COLLECTIVE FRICTION IS NOW 33LB. | status: closed | recorded…

Multiple structural concerns exist including cabin roof skin with 1/2 inch crack above de-ice junction box, left engine upper firewall support with crack near forward latch, number 2 IPS blower duct with crack on aft lower corner, number 1 IPS blower duct with multiple cracks, main transmission drip pan drain tube torn, and number 2 drip pan drain line requiring replacement. Several historical entries document prior beam and firewall repairs.

Fault 2024-03-18 7,503.9 hrs high

Cabin roof skin has 1/2 inch crack above de-ice junction box requiring repair.

CABIN ROOF SKIN HAS 1/2 INCH CRACK ABOVE DE-ICE JUNCTION BOX R /H SIDE | resolved: INSPECTED AREA NO FAULTS FOUND | status: closed | recorded 2024-03-18 @ 7503.9h | closed 2025-03-25 @ 7565.9h
Fault 2025-03-18 7,565.9 hrs high

Left engine upper firewall support has one crack near forward latch requiring repair.

L/H ENGINE UPPER FIREWALL SUPPORT HAS 1(EA) CRACK NEAR FWD LA TCH MOUNT INBOARD SIDE | resolved: 1 ea crack found within negliable tolerance cracked area removed | status: closed | recorded 2025-03-18 @ 7565.9h | closed 2025-04-08 @…
Fault 2025-03-08 7,565.9 hrs high

Number 2 IPS blower duct has one crack on aft lower corner requiring repair.

NO.2 IPS BLOWER DUCT HAS (1EA) CRACK ON AFT LOWER CORNER | resolved: REPAIRED 1 EA CRACK WITH IMPREGNATED FIBERGLASS PATCH WITH ADHESIVE | status: closed | recorded 2025-03-08 @ 7565.9h | closed 2025-03-15 @ 7565.9h
Fault 2025-03-08 7,565.9 hrs high

Number 1 IPS blower duct is cracked, four cracks repaired.

NO.1 IPS BLOWER DUCT IS CRACKED | resolved: REPAIRED 4 EA CRACKS WITH IMPREGNATED FIBERGLASS PATCHES W ITH ADHESIVE | status: closed | recorded 2025-03-08 @ 7565.9h | closed 2025-03-15 @ 7565.9h
Fault 2025-08-15 7,637.5 hrs high

Number 1 engine IPS blower duct has 3 cracks requiring repair.

#1 ENG IPS BLOWER DUCT HAS 3 CRACKS, REQUIRES REPAIR. | resolved: REPAIRED #1 ENG IPS BLOWER DUCT WITH 9313. | status: closed | recorded 2025-08-15 @ 7637.5h | closed 2025-08-25 @ 7644.2h
Fault 2025-03-19 7,565.9 hrs medium

Crack in fiberglass on number 1 air inlet repaired.

CRACK IN FIBERGLASS ON #1 AIR INLET | resolved: Repaired 1 ea crack with impregnated fiberglass patch with adhesive | status: closed | recorded 2025-03-19 @ 7565.9h | closed 2025-03-19 @ 7565.9h
Fault 2025-04-16 7,565.9 hrs medium

Threads worn on main transmission drip pan nut plate requiring replacement.

THREADS WORN ON MAIN XSMN DRIP PAN NUT PLATE, REQUIRES REPLACE MENT | status: open | recorded 2025-04-16 @ 7565.9h
Fault 2025-03-22 7,565.9 hrs medium

Number 2 drip pan drain line by strut requires replacement.

#2 DRIP PAN DRAIN LINE BY STRUT REQ REPLACEMENT | resolved: REPLACED | status: closed | recorded 2025-03-22 @ 7565.9h | closed 2025-03-22 @ 7565.9h
Fault 2025-06-04 7,591.8 hrs high

Oil cooler pneumatic tube cracked, requires replacement.

OIL COOLER PNEUMATIC TUBE CRACKED REQS REPLACEMENT | resolved: REINSTALLED NO CRACK FOUND | status: closed | recorded 2025-06-04 @ 7591.8h | closed 2025-06-09 @ 7591.8h
Fault 2025-06-09 7,591.8 hrs medium

Number 2 upper door track has crack, stop drilled and repaired.

#2 upper door track has crack | resolved: STOP DRILLED CRACK WAS PERFORMED IAW TM 1-1500-204-23-10. | status: closed | recorded 2025-06-09 @ 7591.8h | closed 2025-06-10 @ 7591.8h

Aircraft has one open critical safety message: H-60-26-SOF-02 regarding non-conforming primary main rotor servos not complied with. Multiple historical compliance entries exist for prior messages including H-60-25-ASAM-04 (main rotor blade), H-60-25-ASAM-03 (tail rotor), H-60-25-ASAM-06 (ADS-B), H-60-25-ASAM-07 (servo), H-60-25-ASAM-08 (main rotor), H-60-25-ASAM-10 (pilot seat), and H-60-25-ASAM-11 (main landing gear axle).

Fault 2026-01-07 7,675.1 hrs high

H-60-26-SOF-02 non-conforming primary main rotor servos not complied with, open safety message.

COMPLY WITH H-60-26-SOF-02, NON-CONFORMING PRIMARY MAIN ROTOR SERVOS, PRIOR TO NEXT FLIGHT, BUT NOT TO EXCEED 17 DEC 25. | resolved: COMPLIED WITH | status: closed | recorded 2026-01-07 @ 7675.1h | closed 2026-01-07 @ 7675.1h
Fault 2025-03-24 7,565.9 hrs medium

H-60-ASAM-05 T700 series accessory module compliance required.

COMPLY WITH H-60-ASAM-05, T700 SERIES ACCESORY MODULE REPLACEM ENT, BEFORE [1338.8] AIRCRAFT HOURS, BUT NOT LATER THAN 07 APR 25 | resolved: COMPLIED WITH H-60-25-ASAM-05 | status: closed | recorded 2025-03-24 @ 7565.9h | closed 2025-03-24…
Fault 2025-03-10 7,565.9 hrs medium

H-60-25-ASAM-04 main rotor blade compliance required.

Comply with H-60-25-ASAM-04, Main Rotor Blade PN 70150-09100-0 43 Inspection | resolved: Complied with "H-60-25-ASAM-04 Main Rotor Blade PN 70150-0 9100-043 Inspection. | status: closed | recorded 2025-03-10 @ 7565.9h | closed 2025-03-10 @…
Fault 2025-03-10 814.9 hrs medium

H-60-25-ASAM-04 main rotor blade compliance message.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-04 DESCRIPTION: MAIN ROTOR BLADE PN 70150-09100-043 INSPECTION FOR MAIN ROTOR BLADE ASSY CAGE: 78286 PN: 70150-09100-043 NSN: 1615011061903 SN: A00717 045 IS DUE: 17 MAR 2025 CALENDAR | resolved: Comply…
Fault 2025-03-10 4,818.3 hrs medium

H-60-25-ASAM-04 main rotor blade compliance message.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-04 DESCRIPTION: MAIN ROTOR BLADE PN 70150-09100-043 INSPECTION FOR MAIN ROTOR BLADE ASSY CAGE: 78286 PN: 70150-09100-043 NSN: 1615011061903 SN: A00703 246 IS DUE: 17 MAR 2025 CALENDAR | resolved: Comply…
Fault 2025-03-06 1,571.4 hrs medium

H-60-25-ASAM-03 tail rotor compliance message.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-03 DESCRIPTION: TAIL ROTOR BLADE SPAR INSPECTION INTERVAL CHANGE FOR TAIL ROTOR BLADE AS SY CAGE: 78286 PN: 70101-31000-043 NSN: 1615011138188 SN: A009 -09593 WAS DUE: 17 DEC 2024 CALENDAR | resolved:…
Fault 2025-03-06 2,336.4 hrs medium

H-60-25-ASAM-03 tail rotor compliance message.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-03 DESCRIPTION: TAIL ROTOR BLADE SPAR INSPECTION INTERVAL CHANGE FOR TAIL ROTOR BLADE AS SY CAGE: 78286 PN: 70101-31000-043 NSN: 1615011138188 SN: A009 06692 WAS DUE: 17 DEC 2024 CALENDAR | resolved:…
Fault 2025-04-07 1,571.4 hrs medium

H-60-25-ASAM-03 tail rotor compliance message.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-03 DESCRIPTION: (UPDATE) T AIL ROTOR BLADE SPAR INSPECTION INTERVAL CHANGE FOR TAIL ROTOR BLADE ASSY CAGE: 78286 PN: 70101-31000-043 NSN: 1615011138188 SN: A009-09593 WAS DUE: 30 DEC 2024 CALENDAR |…
Fault 2025-04-07 2,336.4 hrs medium

H-60-25-ASAM-03 tail rotor compliance message.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-03 DESCRIPTION: (UPDATE) T AIL ROTOR BLADE SPAR INSPECTION INTERVAL CHANGE FOR TAIL ROTOR BLADE ASSY CAGE: 78286 PN: 70101-31000-043 NSN: 1615011138188 SN: A00906692 WAS DUE: 30 DEC 2024 CALENDAR |…
Fault 2025-03-10 6,653.9 hrs medium

H-60-25-ASAM-04 main rotor blade compliance message.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-04 DESCRIPTION: MAIN ROTOR BLADE PN 70150-09100-043 INSPECTION FOR MAIN ROTOR BLADE ASSY CAGE: 78286 PN: 70150-09100-043 NSN: 1615011061903 SN: A007-0 7662 IS DUE: 17 MAR 2025 CALENDAR | resolved: Comply…
Fault 2025-03-10 2,154.0 hrs medium

H-60-25-ASAM-04 main rotor blade compliance message.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-04 DESCRIPTION: MAIN ROTOR BLADE PN 70150-09100-043 INSPECTION FOR MAIN ROTOR BLADE ASSY CAGE: 78286 PN: 70150-09100-043 NSN: 1615011061903 SN: A00715 388 IS DUE: 17 MAR 2025 CALENDAR | resolved: Comply…
Fault 2025-04-25 7,566.3 hrs medium

H-60-25-ASAM-06 automatic dependent surveillance broadcast compliance.

COMPLY WITH H-60-25-ASAM-06, AUTOMATIC DEPENDENT SURVEILLANCE- BROADCAST(OUT) (ADS-B(OUT) INSPECTION BY 24MAY2025. | resolved: COMPLIED WITH H-60-25-ASAM-06, AUTOMATIC DEPENDENT SURVEIL LANCE-BROADCAST(OUT) (ADS-B(OUT) INSPECTION." |…
Fault 2025-04-28 7,566.3 hrs medium

H-60-25-ASAM-07 reliability enhanced servo compliance.

COMPLY WITH H-60-25-ASAM-07, RELIABILITY ENHANCED STABILATOR A CTUATOR INSPECTION, PRIOR TO NEXT FLIGHT, BUT NOT TO EXCEED 01 MAY 25 | resolved: INSP OK | status: closed | recorded 2025-04-28 @ 7566.3h | closed 2025-04-28 @ 7566.3h
Fault 2025-05-02 7,574.8 hrs medium

H-60-25-ASAM-08 main rotor blade compliance message.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-08 DESCRIPTION: MAIN GENER ATOR LUG TERMINAL INSPECTION. IS DUE: 12 MAY 2025 CALENDAR | resolved: AIRCRAFT RECORDS INSPECTED MWO 1-1520-280-50-26 AND MWO 1- 1520-237-50-121 HAVE NOT BEEN APPLIED …
Fault 2025-07-11 7,609.7 hrs medium

H-60-25-ASAM-10 pilot seat compliance message.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-10 DESCRIPTION: PILOT AND COPILOT SEAT HARNESS ASSEMBLY REPLACEMENT. IS DUE: 22 JUL 202 5 CALENDAR | resolved: COMPLIED WITH H-60-ASAM-19 PILOT AND COPILOT SEAT HARNESS ASSEMBLY REPLACEMENT | status:…
Fault 2025-08-15 7,637.5 hrs medium

H-60-25-ASAM-11 main landing gear axle radial bearing compliance.

Comply with H-60-25-ASAM-11, Main Landing Gear Axle Radial Mov ement Inspection, at [8046.3] aircraft hours at the NEXT sched uled Preventive Maintenance Inspection (PMI), but not to excee d 14 AUG 27. | status: open | recorded 2025-08-15…
Fault 2025-05-19 7,582.3 hrs high

H-60-22-ASAM-02 verification required for aircraft admin grounded until compliance.

ACFT ADMIN GROUNDED UNTIL VERIFICATION OF H-60-22-ASAM-02 AND H-60-22-ASAM-03 IS COMPLETE | resolved: COMPLIED WITH H-60-22-ASAM-02 AND H-60-22-ASAM-03 SPLIT HO RN TAIL ROTOR BLADE S/N VERIFICATION | status: closed | recorded 2025-05-19 @…

Aircraft inducted into BEST Program on 06-APR-2026 with no flight operations authorized. Multiple high-time components nearing replacement intervals including pilot and copilot seat harness assemblies worn excessively, number 1 engine combustion drain line worn beyond limits, and various battery replacements due. Engine records show one engine removed for internal leak and another for low ETFs requiring QCA. Historical records indicate 7678.0 aircraft hours at BEST induction.

Fault 2026-04-23 7,678.0 hrs high

Aircraft inducted into BEST Program on 06-APR-2026, no flight operations authorized, end of service life phase.

Aircraft inducted into the BEST Program on 06-APR-2026. No DA 2408-18 scheduled maintenance performed after this date. | status: open | recorded 2026-04-23 @ 7678h
Fault 2025-03-08 7,565.9 hrs high

Number 1 pilot shoulder seat harness webbing worn excessively, requires replacement.

#1 PILOT SHOULDER SEAT HARNESS WEBBING IS WORN EXCESSIVELY | resolved: INSPECTED FOUND TO BE WITHIN LIMITS | status: closed | recorded 2025-03-08 @ 7565.9h | closed 2025-04-14 @ 7565.9h
Fault 2025-03-08 7,565.9 hrs high

Number 2 pilot shoulder seat harness webbing worn excessively, requires replacement.

#2 PILOT SHOULDER SEAT HARNESS WEBBING IS WORN EXCESSIVELY | resolved: INSPECTED IN ACCORDANCE WITH 1500-204-23. FOUND TO BE WITH ING LIMITS | status: closed | recorded 2025-03-08 @ 7565.9h | closed 2025-04-11 @ 7565.9h
Fault 2025-04-15 7,565.9 hrs high

Number 2 pilot shoulder seat harness webbing worn beyond limits, requires replacement.

#2 PILOT SHOULDER SEAT HARNESS WEBBING IS WORN BEYOND LIMITS | resolved: REPLACED | status: closed | recorded 2025-04-15 @ 7565.9h | closed 2025-04-16 @ 7565.9h
Fault 2025-08-27 7,644.2 hrs high

Number 1 engine combustion drain line worn beyond limits, requires replacement.

#1 ENGINE COMBUSTION DRAIN LINE WORN BEYOND LIMITS. REQUIRES R EPLACEMENT. | resolved: REPLACED | status: closed | recorded 2025-08-27 @ 7644.2h | closed 2025-09-04 @ 7644.2h
Fault 2025-08-27 7,644.2 hrs high

Number 1 side engine combustion drain hose melted down to metal braid, requires replacement.

#1 SIDE ENGINE COMBUSTION DRAIN HOSE IS MELTED DOWN TO FABRIC LINER. REQUIRES FURTHER INSPECTION. | resolved: INSPECTION COMPLETED. REFERENCE FURTHER 13-1 ANNOTATED 8 A UG 2027 | status: closed | recorded 2025-08-27 @ 7644.2h | closed…
Fault 2025-08-25 7,644.2 hrs medium

Number 1 and 2 engine LDS cables have tears measuring less than one inch, nearing replacement criteria.

#1 & #2 ENGINE LDS CABLES HAVE TEARS MEASURING LESS THEN 1IN. RTV REPAIR APPLIED AT 14:00 REQ'D 24 HOUR CURE TIME | resolved: CURING COMPLETE | status: closed | recorded 2025-08-25 @ 7644.2h | closed 2025-08-27 @ 7644.2h
Fault 2025-04-17 7,566.3 hrs high

Number 2 engine requires removal due to internal leak, component at end of service interval.

#2 ENGINE REQ REMOVAL DUE TO INTERNAL LEAK | resolved: REINSTALLED SN-GE-E-762584 REFER TO 13-1 "INSP OF #2 ENG R EQ DUE TO OIL LEAK" DATED 22 APR 2025 ENG SN: GE-E-762584 | status: closed | recorded 2025-04-17 @ 7566.3h | closed…
Fault 2025-04-21 7,566.3 hrs high

Engine number 1 removed due to low ETFs, QCA required, component nearing retirement.

REMOVAL OF ENG # 1 DUE TO LOW ETFs QCA REQ ENG S/N: GEE-761734 C | resolved: QCA COMPLETED NEW ENG S/N: GE-E614164 | status: closed | recorded 2025-04-21 @ 7566.3h | closed 2025-04-22 @ 7566.3h
Fault 2026-04-16 7,678.0 hrs medium

Engine serial GEE614184 records indicate component time accumulation requiring attention.

In reference to Aircraft Engine S/N: GEE614184, the following components S/N:'s must be verified at next engine "tear down" Power Turbine Module Power Turbine Rotor Stage 3 Turbine D isk Stage 4 Turbine Disk Power Turbine Shaft No. 5…

Seller has flagged critical items for buyer: blanking plates required on areas where components were removed, aircraft prepared for lateral transfer to ASF Hood with multiple removed items, and notice to buyer regarding removed components including aft cabin soundproofing not installed, armor wing cable not installed, and cargo hook hardware removed. Aircraft folded for transport multiple times and configured for shipment.

Fault 2026-04-17 7,678.0 hrs high

NOTICE TO BUYER: multiple items removed from aircraft including aft cabin soundproofing, armor wing cable, cargo hook hardware, and other components.

NOTICE TO BUYER: The following items have been removed from th e aircraft at the direction of the U.S. Government; to include but not limited to: CMWS JUNCTION BOC; SA-26669/ALE-47 (V) CM WS SEQUENCER; SENSOR ELECTRO-OPTIC MISSLE…
Fault 2026-01-13 7,678.0 hrs high

Blanking plates required on areas where components were removed, indicating missing equipment.

BLANKING PLATES REQUIRED ON AREAS WHERE COMPONENTS WERE RMVD F OR ASF HOOD LATERAL TRANSFER. | resolved: HDWR AND CANNON PLUGS COVERED ALONG W/ BLANKING PLATES. RE FER TO 13-1 "LATERAL TRANSFER COMPONENT REMOVAL" FOR LOCAT IONS COVERED. |…
Fault 2026-01-13 7,678.0 hrs high

Aircraft prepared for lateral transfer to ASF Hood, see 13-2 entries for removed components.

ACFT PREPARED FOR LATERAL TRANSFER TO ASF HOOD. SEE 13-2'S FOR FOLLOWING COMPONENTS RMVD. | resolved: RMVD COMPONENTS | status: closed | recorded 2026-01-13 @ 7678h | closed 2026-01-14 @ 7678h
Fault 2025-06-06 7,591.8 hrs high

Aft cabin soundproofing not installed, flagged as open item.

AFT CABIN SOUNDPROOFING NOT INSTALLED | status: open | recorded 2025-06-06 @ 7591.8h
Fault 2023-03-31 7,223.1 hrs medium

Aft cabin soundproofing not installed, write up could not duplicate.

AFT CABIN SOUND PROOFING NOT INSTALLED | resolved: WRITE UP HAS BEEN ACTIONED. SEE WRITE UP DATED 06JUN25 FOR FURTHER INFORMATION. | status: closed | recorded 2023-03-31 @ 7223.1h | closed 2025-06-10 @ 7591.8h
Fault 2025-10-23 7,675.1 hrs medium

Aircraft folded for transport, unfolded and closed, indicates shipment preparation.

ACFT FOLDED FOR TRANSPORT | resolved: ACFT UNFOLDED COMPLETED | status: closed | recorded 2025-10-23 @ 7675.1h | closed 2026-01-07 @ 7675.1h
Fault 2025-10-22 7,675.1 hrs Entry error low

Aircraft folded for transport entry error, closed in error.

[ENTRY ERROR] ACFT FOLDED FOR TRANSPORT | resolved: CLOSED IN ERROR BY Acevedo Gonzalez, Jonathan SSG Entry m ade in error. | status: closed | recorded 2025-10-22 @ 7675.1h | closed 2025-10-23
Fault 2025-10-22 7,675.1 hrs Entry error low

Aircraft folded for transport entry error, closed in error.

[ENTRY ERROR] ACFT FOLDED FOR TRANSPORT | resolved: CLOSED IN ERROR BY Acevedo Gonzalez, Jonathan SSG Entry m ade in error. | status: closed | recorded 2025-10-22 @ 7675.1h | closed 2025-10-23
Fault 2025-10-23 7,675.1 hrs Entry error low

Folding of main rotor blades required entry error.

[ENTRY ERROR] D.Co FOLDING OF MAIN ROTOR BLADES REQUIRED | resolved: CLOSED IN ERROR BY Acevedo Gonzalez, Jonathan SSG Entry m ade in error. | status: closed | recorded 2025-10-23 @ 7675.1h | closed 2025-10-23
Fault 2025-10-23 7,675.1 hrs Entry error medium

Main rotor blades folded for shipment, reinstalled.

[ENTRY ERROR] M/R BLADES FOLDED FOR SHIPMENT | resolved: ENTERRED IN ERROR | status: closed | recorded 2025-10-23 @ 7675.1h | closed 2025-10-23 @ 7675.1h

Multiple administrative issues exist including entry errors for inspections, admin grounds for record discrepancies regarding PMD requirements and flight hour documentation, and data quality issues with entries closed in error. Several entries marked as entry error for inspections and maintenance actions that were incorrectly documented.

Fault 2025-09-09 7,644.7 hrs high

Admin ground due to record discrepancies for PMD dated 13-1, requires correction.

ADMIN GROUND DUE TO RECORD DISCREPANCIES: 2408-13-1 "PMD REQ B EFORE NEXT FLIGHT" DATED 07 SEP 25 HAS NO TOOL BOX NUMBER ON 2 408-13-2 "TOOLBOX INV DUE" | resolved: CORRECTIVE COMPLETED | status: closed | recorded 2025-09-09 @ 7644.7h |…
Fault 2025-09-09 7,644.7 hrs high

Admin ground due to record discrepancies for A110 PMS 40 hour inspection dated 13-1.

ADMIN GROUND DUE TO RECORD DISCREPANCIES: 2408-13-1 "A110 40 H OUR INSPECTION (PMS)" HAS NO TQ VALUE, VOID DATE OR SERIAL NUM BER ON 2408-13-2 ON FUEL ENCLOSURE PANEL. | resolved: CORRECTION COMPLETED | status: closed | recorded 2025-09-09…
Fault 2025-08-12 7,637.5 hrs high

Admin ground for record discrepancy, no PMD required prior to flight on 11 AUG 25.

ADMIN GROUND FOR RECORD DISCREPANCY: NO "PMD REQD" PRIOR TO FL IGHT DATED 16 JULY 25 | resolved: COMPLETED | status: closed | recorded 2025-08-12 @ 7637.5h | closed 2025-08-12 @ 7637.5h
Fault 2025-08-12 7,637.5 hrs high

Admin ground for record discrepancy, DA 2408-12 for flight dated 11 AUG 25 missing.

ADMIN GROUND FOR RECORD DISCREPANCY: DA 2408-12 FOR FLIGHT DAT ED 12 JUL 25 "MISSING" TRAINING TAB | resolved: COMPLETED | status: closed | recorded 2025-08-12 @ 7637.5h | closed 2025-08-12 @ 7637.5h
Fault 2025-08-12 7,637.5 hrs high

Aircraft admin grounded due to potential FOD, 100% inspection required.

ACFT ADMIN GROUNDED DUE TO POTENTIAL FOD. 100% INSP REQ'D | resolved: COMPLETED | status: closed | recorded 2025-08-12 @ 7637.5h | closed 2025-08-14 @ 7637.5h
Fault 2025-03-03 7,565.9 hrs Entry error medium

Entry error, left internal CE ICS does not transmit or receive, data quality issue.

[ENTRY ERROR] L/H INSTERNAL CE ICS DOES NOT TRANSMIT OR RECEIVE | resolved: ENTERED IN ERROR (DUPLICATE) REFER TO 2408-13-1 LABELED "L /H CE ICS BOX WILL NOT TRANSMIT/RECIEVE " DATED 08 MAR 202 5 | status: closed | recorded 2025-03-03 @…
Fault 2025-10-23 7,675.1 hrs Entry error medium

Entry error for inspection A803 10HR/14 day visual inspection of SATCOM.

[ENTRY ERROR] INSP A803 10HR/14 DAY VISUAL INSPECTION OF SATCOM IAW AWR 1037 FOR HELICPTR UTIL UH-60L CAGE: 78286 PN: UH-60L NSN: 15200129 84532 SN: 8926180 WAS DUE. STATUS UPGRADED TO X ON: 7567.0 AIR CRAFT HOURS OR 18 NOV 2024 …
Fault 2025-10-23 7,675.1 hrs Entry error medium

Entry error for inspection A822 upload of IVHUMS software.

[ENTRY ERROR] INSP A822 2408-15-2 UPLOAD OF IVHUMS VIBRATION DATA FOR ENG'S, OIL COOLER AND TAIL ROTOR FOR HELICPTR UTIL UH-60L CAGE: 7828 6 PN: UH-60L NSN: 1520012984532 SN: 8926180 WAS DUE. STATUS UP GRADED TO X ON: 7624.4 AIRCRAFT HOURS…
Fault 2025-10-22 7,675.1 hrs Entry error medium

Entry error for inspection A803 10HR/14 day visual inspection of SATCOM.

[ENTRY ERROR] INSP A803 10HR/14 DAY VISUAL INSPECTION OF SATCOM IAW AWR 1037 FOR HELICPTR UTIL UH-60L CAGE: 78286 PN: UH-60L NSN: 15200129 84532 SN: 8926180 WAS DUE. STATUS UPGRADED TO X ON: 18 NOV 202 4 OR 7567.0 AIRCRAFT HOURS …
Fault 2025-10-23 7,675.1 hrs Entry error medium

Entry error for inspection A822 upload of IVHUMS software.

[ENTRY ERROR] INSP A822 2408-15-2 UPLOAD OF IVHUMS VIBRATION DATA FOR ENG'S, OIL COOLER AND TAIL ROTOR FOR HELICPTR UTIL UH-60L CAGE: 7828 6 PN: UH-60L NSN: 1520012984532 SN: 8926180 WAS DUE. STATUS UP GRADED TO X ON: 7624.4 AIRCRAFT HOURS…
Fault 2025-10-22 7,675.1 hrs Entry error medium

Entry error for inspection A822 upload of IVHUMS software.

[ENTRY ERROR] INSP A822 2408-15-2 UPLOAD OF IVHUMS VIBRATION DATA FOR ENG'S, OIL COOLER AND TAIL ROTOR FOR HELICPTR UTIL UH-60L CAGE: 7828 6 PN: UH-60L NSN: 1520012984532 SN: 8926180 WAS DUE. STATUS UP GRADED TO X ON: 7624.4 AIRCRAFT HOURS…
Fault 2025-10-23 7,675.1 hrs Entry error medium

Entry error for inspection A822 upload of IVHUMS software.

[ENTRY ERROR] INSP A822 2408-15-2 UPLOAD OF IVHUMS VIBRATION DATA FOR ENG'S, OIL COOLER AND TAIL ROTOR FOR HELICPTR UTIL UH-60L CAGE: 7828 6 PN: UH-60L NSN: 1520012984532 SN: 8926180 WAS DUE. STATUS UP GRADED TO X ON: 7624.4 AIRCRAFT HOURS…
Fault 2025-10-23 7,675.1 hrs Entry error medium

Entry error for inspection A822 upload of IVHUMS software.

[ENTRY ERROR] INSP A822 2408-15-2 UPLOAD OF IVHUMS VIBRATION DATA FOR ENG'S, OIL COOLER AND TAIL ROTOR FOR HELICPTR UTIL UH-60L CAGE: 7828 6 PN: UH-60L NSN: 1520012984532 SN: 8926180 WAS DUE. STATUS UP GRADED TO X ON: 7624.4 AIRCRAFT HOURS…
Fault 2025-10-23 7,675.1 hrs Entry error medium

Entry error for inspection A822 upload of IVHUMS software.

[ENTRY ERROR] INSP A822 2408-15-2 UPLOAD OF IVHUMS VIBRATION DATA FOR ENG'S, OIL COOLER AND TAIL ROTOR FOR HELICPTR UTIL UH-60L CAGE: 7828 6 PN: UH-60L NSN: 1520012984532 SN: 8926180 WAS DUE. STATUS UP GRADED TO X ON: 7624.4 AIRCRAFT HOURS…
Fault 2025-10-23 7,675.1 hrs Entry error medium

Entry error for inspection A822 upload of IVHUMS software.

[ENTRY ERROR] INSP A822 2408-15-2 UPLOAD OF IVHUMS VIBRATION DATA FOR ENG'S, OIL COOLER AND TAIL ROTOR FOR HELICPTR UTIL UH-60L CAGE: 7828 6 PN: UH-60L NSN: 1520012984532 SN: 8926180 WAS DUE. STATUS UP GRADED TO X ON: 7624.4 AIRCRAFT HOURS…

Records Search

Risk Analysis

Custom Analysis
