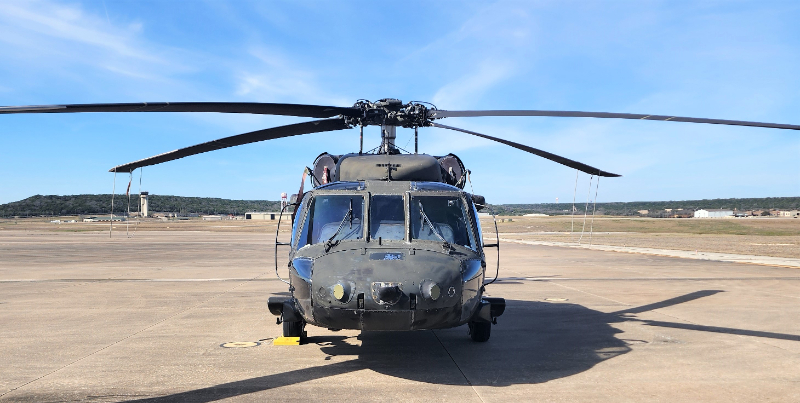

BladeStack UH-60L Demo

Component	PN	Serial	TSN	Hours at install	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
LATERAL SWASHPLATE LINK	70400-08151-061	1515206388	163.5	8,899 ACFT Hours at Install	0.9%	99.1%	18,836	19,000	$6,836
FORWARD BELLCRANK	70400-08101-046	1915	2,419.6	6,643 ACFT Hours at Install	12.7%	87.3%	16,580	19,000	$8,932
STATIONARY SWASHPLATE PARENT: SWASHPLATE ASSY	70104-08010-044	A22202541	6,863.6	3,452 Parent Component Hours at Install	36.1%	63.9%	12,136	19,000	$41,519
MAIN ROTOR SHAFT PARENT: MAIN TRANSMISSION MODULE	70351-38131-042	D32705383	2,419.6	0 Parent Component Hours at Install	13.4%	86.6%	15,580	18,000	$22,085
MAIN ROTOR SHAFT EXTENDER	70351-08186-043	2010391	3,136.6	7,948 ACFT Hours at Install	19.6%	80.4%	12,863	16,000	$36,402
MAIN ROTOR BLADE ASSY	70150-09100-048	a00719746	2.3	9,060 ACFT Hours at Install	0.0%	100.0%	14,998	15,000	$61,491
MAIN ROTOR BLADE ASSY	70150-09100-048	A00719582	2.3	9,060 ACFT Hours at Install	0.0%	100.0%	14,998	15,000	$61,491
SERVO ASSY, TAIL ROTOR	70410-06520-046	C30005794	3,086.6	7,948 ACFT Hours at Install	20.6%	79.4%	11,913	15,000	$77,437
LEFT TIE ROD ASSY	70400-08115-046	A34401107	3,136.6	5,926 ACFT Hours at Install	22.4%	77.6%	10,863	14,000	$13,967
BIFILAR, M/R ROTOR ASSY	70107-08400-046	AIM00094	2,121.6	7,948 ACFT Hours at Install	16.3%	83.7%	10,878	13,000	$56,191
SAS ACTUATOR	70410-02500-049	B11201901	10,064.6	7,829 ACFT Hours at Install	77.4%	22.6%	2,935	13,000	$4,268
SAS ACTUATOR	70410-02500-049	B11212028	2,885.6	7,948 ACFT Hours at Install	22.2%	77.8%	10,114	13,000	$14,705
SAS ACTUATOR	70410-02500-049	B112-05404	10,082.6	4,880 ACFT Hours at Install	77.6%	22.4%	2,917	13,000	$4,241
AFT BELLCRANK	70400-08102-045	345-01779	9,062.6	4,880 ACFT Hours at Install	69.7%	30.3%	3,937	13,000	$3,180
O/B RETENTION PLATE (T/R)	70102-11101-042	257-5238	5,594.6	7,948 ACFT Hours at Install	46.6%	53.4%	6,405	12,000	$7,264
PLANETARY CARRIER ASSY PARENT: MAIN TRANSMISSION MODULE	70351-38175-042	E31820795	2,419.6	0 Parent Component Hours at Install	20.2%	79.8%	9,580	12,000	$35,926
I/B RETENTION PLATE T/R PARENT: TAIL ROTOR GEARBOX ASSY	70358-06612-042	FM2551	1,115.6	5,211 Parent Component Hours at Install	9.3%	90.7%	10,884	12,000	$16,859
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	F47911456	1,304.3	468 Parent Component Hours at Install	10.9%	89.1%	10,696	12,000	$1,222
NUT,PLAIN,ROUND PARENT: SPINDLE,HEAD,ROTARYWING	70102-08105-102	F47920278	48.4	0 Parent Component Hours at Install	0.4%	99.6%	11,952	12,000	$1,365
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	F47906938	3,136.6	0 Parent Component Hours at Install	26.1%	73.9%	8,863	12,000	$1,013
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	F47907433	163.5	0 Parent Component Hours at Install	1.4%	98.6%	11,836	12,000	$1,352
LATERAL SERVO BELLCRANK	70400-08166-041	F33703048	4,219.6	4,843 ACFT Hours at Install	38.4%	61.6%	6,780	11,000	$6,536
ROTATING SWASHPLATE PARENT: SWASHPLATE ASSY	70104-08001-045	A32600304	6,534.6	3,038 Parent Component Hours at Install	59.4%	40.6%	4,465	11,000	$26,386
NUT ASSY, MAIN ROTOR	70103-08005-104	AL01348	62.6	9,000 ACFT Hours at Install	0.7%	99.3%	8,937	9,000	$2,450
PISTON, MAIN L/GEAR STR PARENT: FWD FIXED GEAR SHOCK	70250-12067-102	BEM1393	3,995.6	245 Parent Component Hours at Install	44.4%	55.6%	5,004	9,000	$2,641
PISTON, MAIN L/GEAR STR PARENT: FWD FIXED GEAR SHOCK	70250-12067-102	BEM1866	954.8	13 Parent Component Hours at Install	10.6%	89.4%	8,045	9,000	$4,246
MAIN ROTOR BLADE ASSY	70150-09100-043	A00709004	2,278.5	8,899 ACFT Hours at Install	25.9%	74.1%	6,522	8,800	$121,196
MAIN ROTOR BLADE ASSY	70150-09100-043	A00718959	11.3	9,051 ACFT Hours at Install	0.1%	99.9%	8,789	8,800	$163,330
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	G24106740	481.3	468 Parent Component Hours at Install	5.5%	94.5%	8,219	8,700	$7,578
CONTROL HORN ASSY PARENT: SPINDLE,HEAD,ROTARYWING	70102-08111-047	H24104559	48.4	0 Parent Component Hours at Install	0.6%	99.4%	8,652	8,700	$7,977
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	G24101947	3,136.6	0 Parent Component Hours at Install	36.1%	63.9%	5,563	8,700	$5,129
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	H24101299	163.5	0 Parent Component Hours at Install	1.9%	98.1%	8,536	8,700	$7,871
HOUSING ASSY MGB PARENT: MAIN TRANSMISSION MODULE	70351-38110-045	H30701166	2,419.6	0 Parent Component Hours at Install	29.5%	70.5%	5,780	8,200	$71,948
MAIN ROTOR SPINDLE ASSY	70102-08200-069	A00115407	481.3	9,049 ACFT Hours at Install	7.8%	92.2%	5,719	6,200	$88,548
MAIN ROTOR SPINDLE ASSY	70102-08200-069	D00113088	3,136.6	7,948 ACFT Hours at Install	50.6%	49.4%	3,063	6,200	$47,433
MAIN ROTOR SPINDLE ASSY	70102-08200-069	D00113392	163.5	8,899 ACFT Hours at Install	2.6%	97.4%	6,036	6,200	$93,468
SPINDLE,HEAD,ROTARYWING	70102-08200-073	A00118109	48.4	9,014 ACFT Hours at Install	0.8%	99.2%	6,152	6,200	$95,251
GEARSHAFT, BEVEL PARENT: TAIL ROTOR GEARBOX ASSY	70358-06620-102	C32001208	5,158.6	5,211 Parent Component Hours at Install	88.9%	11.1%	641	5,800	$3,871
FWD BELLCRANK SPT ASSY	70400-08162-042	B36708944	1,391.6	7,671 ACFT Hours at Install	25.8%	74.2%	4,008	5,400	$15,423
HUB, M/R ROTOR ASSY	70103-08112-047	1515201202	3,878.6	7,948 ACFT Hours at Install	76.1%	23.9%	1,221	5,100	$44,306
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	H23707704	11.3	0 Parent Component Hours at Install	0.2%	99.8%	4,989	5,000	$11,445
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	H23708239	2.3	0 Parent Component Hours at Install	0.0%	100.0%	4,998	5,000	$11,466
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	H23708466	2.3	0 Parent Component Hours at Install	0.0%	100.0%	4,998	5,000	$11,466
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	G23704404	2,278.5	0 Parent Component Hours at Install	45.6%	54.4%	2,722	5,000	$6,244
FAN AXIAL	70361-03005-107	D51201939	2,871.6	7,948 ACFT Hours at Install	57.9%	42.1%	1,615	3,840	$14,513
T/R PITCH CHANGE SHAFT	70400-06100-042	138301160	163.5	8,899 ACFT Hours at Install	5.7%	94.3%	2,716	2,880	$8,336

Component	PN	Serial	TSN	Hours at install	TSN % of ACFT	Value remaining
MAIN TRANSMISSION MODULE	70351-48100-042	A80301901	2,419.6	7,948 ACFT Hours at Install	26.7%	$1,445,000
TAIL ROTOR GEARBOX ASSY	70358-06600-046	A00601697	6,325.6	7,948 ACFT Hours at Install	69.8%	$195,500
INPUT MODULE	70351-08001-049	A264-06380	9,062.6	0 ACFT Hours at Install	100.0%	$192,100
INPUT MODULE	70351-08001-049	A264-06381	9,062.6	0 ACFT Hours at Install	100.0%	$192,100
SWASHPLATE ASSY	70104-08000-050	A10701746	6,863.6	7,948 ACFT Hours at Install	75.7%	$167,492
TAIL ROTOR BLADE ASSY	70101-31000-043	A009-13211	1,391.6	7,948 ACFT Hours at Install	15.4%	$116,875
TAIL ROTOR BLADE ASSY	70101-31000-043	A009-13358	1,391.6	7,948 ACFT Hours at Install	15.4%	$116,875
FWD FIXED GEAR SHOCK	70250-12051-045	BEM1393	3,995.6	7,196 ACFT Hours at Install	44.1%	$95,692
FWD FIXED GEAR SHOCK	70250-12051-045	BEM1866	967.6	8,095 ACFT Hours at Install	10.7%	$95,692
ATTITUDE HEADING REFERENCE UNIT	765100-200	1781	580.5	8,899 ACFT Hours at Install	6.4%	$69,417
STABILATOR ACTUATOR	70400-06641-117	B29202144	4,992.6	7,948 ACFT Hours at Install	55.1%	$64,175
STABILATOR ACTUATOR	70400-06641-117	687	3,382.6	7,948 ACFT Hours at Install	37.3%	$64,175
GENERATOR	28B302-8-DM	1365E	6,675.6	2,691 ACFT Hours at Install	73.7%	$63,822
GENERATOR	28B302-8-DM	1339E	8,389.6	6,643 ACFT Hours at Install	92.6%	$63,822
AUTOMAT FLT CONT COMPUTER	825050-1-001	3111792	2,417.6	7,948 ACFT Hours at Install	26.7%	$46,750
SERVO, PRIMARY MAIN ROTOR	70410-02820-054	B30302635	6,912.6	6,838 ACFT Hours at Install	76.3%	$43,775
SERVO, PRIMARY MAIN ROTOR	70410-02820-054	B30301757	8,211.6	7,671 ACFT Hours at Install	90.6%	$43,775
SERVO, PRIMARY MAIN ROTOR	70410-02820-054	B30308102	6,127.6	7,671 ACFT Hours at Install	67.6%	$43,775
MIXER ASSEMBLY	70400-02300-048	B99502460	1,391.6	7,671 ACFT Hours at Install	15.4%	$37,825
STABILATOR AMPLIFIER (DUAL)	1011445-1-002	3332	1,565.5	8,899 ACFT Hours at Install	17.3%	$37,366
PUMP MODULE ASSY, HYDRAULIC	53023-06	K6474ABC	4,094.6	6,838 ACFT Hours at Install	45.2%	$36,975
PUMP MODULE ASSY, HYDRAULIC	53023-06	K6262ABR	2,419.6	6,643 ACFT Hours at Install	26.7%	$36,975
ACCESSORY MODULE	70351-08080-045	A258-06111	9,062.6	0 ACFT Hours at Install	100.0%	$36,422
ACCESSORY MODULE	70351-08080-045	A258-06112	9,062.6	0 ACFT Hours at Install	100.0%	$36,422
TAIL CONE FITTING	70219-05001-044	B497-01669	9,062.6	0 ACFT Hours at Install	100.0%	$34,000
INTERMEDIATE GEARBOX	70357-06300-042	A00500719	6,934.6	7,948 ACFT Hours at Install	76.5%	$33,079
VALVE, SOLENIOD	3213850-3-1	16377	2,355.6	7,948 ACFT Hours at Install	26.0%	$32,304
VALVE, SOLENIOD	3213850-3-1	11300	163.5	8,899 ACFT Hours at Install	1.8%	$32,304
PUMP MODULE ASSY, HYDRAULIC	70652-02300-050	252185CABR	2,383.6	8,108 ACFT Hours at Install	26.3%	$29,750
ENGINE SEQUENCING UNIT	4504587	2801	3,135.6	7,948 ACFT Hours at Install	34.6%	$22,525
PANEL INDICATOR (PDU)	1006848-70	1216	1,114.6	7,948 ACFT Hours at Install	12.3%	$19,524
PANEL INDICATOR (PDU)	1006848-70	2012A	1,114.6	7,948 ACFT Hours at Install	12.3%	$19,524
DAMPER ASSY, M/R	70106-08100-046	WG1379100006	163.5	8,899 ACFT Hours at Install	1.8%	$18,371
DAMPER ASSY, M/R	70106-08100-046	WG1379100005	163.5	8,899 ACFT Hours at Install	1.8%	$18,371
DAMPER ASSY, M/R	70106-08100-046	WG1350500631	163.5	8,899 ACFT Hours at Install	1.8%	$18,371
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	D32461056	13.3	468 Parent Component Hours at Install	0.1%	$16,996
ELASTOMERIC BEARING PARENT: SPINDLE,HEAD,ROTARYWING	SB7001-048	D32461118	48.4	0 Parent Component Hours at Install	0.5%	$16,996
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	B324-25408	3,105.6	717 Parent Component Hours at Install	34.3%	$16,996
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	B324-34995	163.5	0 Parent Component Hours at Install	1.8%	$16,996
ACCUMULATOR, PNEUMATIC	70651-03201-104	C40101735	3,912.6	7,196 ACFT Hours at Install	43.2%	$16,556
INDICATOR, HEIGHT	A3060591	119AA	1,277.9	8,389 ACFT Hours at Install	14.1%	$15,300
DRIVESHAFT ASSY ENGINE	70361-08014-041	C84509705	1,114.6	7,948 ACFT Hours at Install	12.3%	$14,684
DRIVESHAFT ASSY ENGINE	70361-08014-041	C84508328	1,114.6	7,948 ACFT Hours at Install	12.3%	$14,684
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	A272-08495	9,062.6	7,948 ACFT Hours at Install	100.0%	$13,494
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	A272-08494	9,062.6	7,948 ACFT Hours at Install	100.0%	$13,494
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	A272-08493	9,062.6	7,948 ACFT Hours at Install	100.0%	$13,494
DAMPER ASSY, M/R	70106-08100-042	WG1350500605	163.5	8,899 ACFT Hours at Install	1.8%	$13,314
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	B84925247	11.3	0 Parent Component Hours at Install	0.1%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	B84923869	2.3	0 Parent Component Hours at Install	0.0%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	b84925385	2.3	0 Parent Component Hours at Install	0.0%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	B84901985	2,278.5	0 Parent Component Hours at Install	25.1%	$12,591
RECEIVER-TRANSMITTER, RADAR ALT	SM-C-967292	167GG	1,628.6	7,948 ACFT Hours at Install	18.0%	$12,015
AFT WALKING BEAM	70400-08104-048	R34600790	1,114.6	7,948 ACFT Hours at Install	12.3%	$11,513
TAIL SHOCK STRUT ASSY	70250-13101-046	L00200017	2,230.6	7,195 ACFT Hours at Install	24.6%	$9,779
FITTING,STRUCTURALCOMPONENT, AIRCRAFT	70209-22103-071	F338-02637	9,062.6	0 ACFT Hours at Install	100.0%	$8,500
FITTING,STRUCTURALCOMPONENT, AIRCRAFT	70209-22103-067	F338-02467	9,062.6	0 ACFT Hours at Install	100.0%	$8,500
FITTING,STRUCTURALCOMPONENT, AIRCRAFT	70209-22103-069	F338-02116	9,062.6	0 ACFT Hours at Install	100.0%	$8,500
SERVO BEAM FITTING	70209-22103-065	F338-02674	9,062.6	0 ACFT Hours at Install	100.0%	$8,500
SHAFT ASSY, T/R DRV SEC 7	70361-06002-047	A274-02984	9,062.6	7,948 ACFT Hours at Install	100.0%	$8,003
AFT BELLCRANK SPT ASSY	70400-08163-043	365-05170	2,419.6	6,643 ACFT Hours at Install	26.7%	$7,948
TAIL PYLON FITTING	70209-06051-043	B496-01302	9,062.6	0 ACFT Hours at Install	100.0%	$7,930
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	D32511769	13.3	468 Parent Component Hours at Install	0.1%	$7,646
THRUST BEARING PARENT: SPINDLE,HEAD,ROTARYWING	SB7002-048	D32511948	48.4	0 Parent Component Hours at Install	0.5%	$7,646
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	B325-36520	3,136.6	717 Parent Component Hours at Install	34.6%	$7,646
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	C32504414	163.5	0 Parent Component Hours at Install	1.8%	$7,646
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	B50404331	3,517.3	468 Parent Component Hours at Install	38.8%	$6,375
TIE ROD (M/R SPINDLE) PARENT: SPINDLE,HEAD,ROTARYWING	38023-10372-101	C50422223	48.4	0 Parent Component Hours at Install	0.5%	$6,375
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	C50410723	3,136.6	0 Parent Component Hours at Install	34.6%	$6,375
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	C504-11930	163.5	0 Parent Component Hours at Install	1.8%	$6,375
SHAFT ASSY, T/R DRV SEC 2	70361-03009-047	WG3005900234	2,224.6	6,838 ACFT Hours at Install	24.5%	$6,105
AFT TIE ROD ASSY	70400-08111-043	A392-00709	9,062.6	0 ACFT Hours at Install	100.0%	$5,173
SHAFT ASSY, T/R DRV SEC 6	70361-05002-045	D108	6,422.6	7,948 ACFT Hours at Install	70.9%	$5,088
SHAFT ASSY, T/R DRV SEC 1	70361-03001-045	A271-01995	9,062.6	7,948 ACFT Hours at Install	100.0%	$4,671
BLADE PIN, SOLID	70103-08108-041	B94131502	1,866.6	7,948 ACFT Hours at Install	20.6%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94154769	1,114.6	7,948 ACFT Hours at Install	12.3%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-65539	13.3	9,049 ACFT Hours at Install	0.1%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94112268	4,076.6	7,948 ACFT Hours at Install	45.0%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94112220	5,013.6	7,948 ACFT Hours at Install	55.3%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94149334	2,283.6	7,948 ACFT Hours at Install	25.2%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94119820	2,605.6	7,948 ACFT Hours at Install	28.8%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94105957	5,013.6	7,948 ACFT Hours at Install	55.3%	$4,165
RIGHT TIE ROD ASSY	70400-08165-043	C366-00073	9,062.6	0 ACFT Hours at Install	100.0%	$3,996
BRNG T/R PITCH CHG SHFT PARENT: T/R PITCH CHANGE SHAFT	SB1162-102	14069	163.5	0 Parent Component Hours at Install	1.8%	$3,484
CTG AIRCRAFT FIRE EXT	897899-1	057132	393.3	8,669 ACFT Hours at Install	4.3%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	057155	393.3	8,669 ACFT Hours at Install	4.3%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	015668	156.4	8,906 ACFT Hours at Install	1.7%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	057145	393.3	8,669 ACFT Hours at Install	4.3%	$2,398
AFT TIE ROD SUPT FITTING	70400-08112-046	E391-00978	9,062.6	0 ACFT Hours at Install	100.0%	$974

Component	PN	Serial	TSN	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
TIE ROD COMPRESSOR PARENT: COLD SECTION MODULE	5043T04P02	GATMT302	4,817.0	48.2%	51.8%	5,183	10,000	$17,957
RING, SPACER COMPRESSOR PARENT: COLD SECTION MODULE	5066T79P01	GATBMW97	5,724.0	57.2%	42.8%	4,276	10,000	$4,820
COMPRESSOR REAR SHAFT PARENT: COLD SECTION MODULE	6080T48P01	FIAAV7M8	2,371.0	27.9%	72.1%	6,129	8,500	$54,512
GAS GEN TURBINE SHAFT PARENT: COLD SECTION MODULE	6068T44P02	GATHFPJH	4,201.0	52.5%	47.5%	3,799	8,000	$43,353
STAGE 1 BLISK PARENT: COLD SECTION MODULE	6043T56G02	GLHTW9WN	1,138.0	16.3%	83.7%	5,862	7,000	$77,257
STAGE 2 BLISK PARENT: COLD SECTION MODULE	6032T27P08	GLHTWGHP	1,138.0	16.3%	83.7%	5,862	7,000	$56,220
STAGE 3 & 4 BLISK PARENT: COLD SECTION MODULE	6038T08P04	GLHTWGWK	1,138.0	16.3%	83.7%	5,862	7,000	$75,164
STAGE 5 BLISK PARENT: COLD SECTION MODULE	6038T09P04	GLHTWC0F	1,138.0	16.3%	83.7%	5,862	7,000	$40,317
STAGE 1 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T06P03	GATJ1CGW	2,533.0	36.2%	63.8%	4,467	7,000	$68,556
STAGE 2 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T12P03	GATJ1DLM	2,533.0	36.2%	63.8%	4,467	7,000	$64,860
STG 1 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T09P01	GFF5GGRF	2,533.0	36.2%	63.8%	4,467	7,000	$55,731
COMPRESSOR IMPELLER PARENT: COLD SECTION MODULE	6055T59P03	GLHTMF5C	2,003.0	40.1%	59.9%	2,997	5,000	$73,372
STAGE 3 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T32P02	GATHJDC5	3,476.0	69.5%	30.5%	1,524	5,000	$27,825
STAGE 4 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T34P06	GATHJP6R	2,900.0	58.0%	42.0%	2,100	5,000	$50,422
POWER TURBINE SHAFT PARENT: POWER TURBINE MODULE	5125T92G01	GATH67H9	4,165.0	83.3%	16.7%	835	5,000	$37,696
STG 2 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	4106T80P01	GFF5GRD4	2,533.0	50.7%	49.3%	2,467	5,000	$38,200
STG 2 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T07P06	GFF5GRG4	2,533.0	60.3%	39.7%	1,667	4,200	$25,670
STG 1 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T08P03	GFF5GRAJ	2,533.0	66.7%	33.3%	1,267	3,800	$26,770

Component	PN	Serial	TSN	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
TIE ROD COMPRESSOR PARENT: COLD SECTION MODULE	5043T04P02	GATHTC8H	4,118.0	41.2%	58.8%	5,882	10,000	$20,379
RING, SPACER COMPRESSOR PARENT: COLD SECTION MODULE	5066T79P01	BJWF3146	3,729.0	37.3%	62.7%	6,271	10,000	$7,069
COMPRESSOR REAR SHAFT PARENT: COLD SECTION MODULE	6080T48P01	FIA09WYK	2,447.0	28.8%	71.2%	6,053	8,500	$53,836
GAS GEN TURBINE SHAFT PARENT: COLD SECTION MODULE	6068T44P02	GATHHKG8	2,575.0	32.2%	67.8%	5,425	8,000	$61,909
STAGE 1 BLISK PARENT: COLD SECTION MODULE	6043T56G02	GLHTWC3N	1,538.0	22.0%	78.0%	5,462	7,000	$71,985
STAGE 2 BLISK PARENT: COLD SECTION MODULE	6032T27P08	GLHTWHG9	1,538.0	22.0%	78.0%	5,462	7,000	$52,384
STAGE 3 & 4 BLISK PARENT: COLD SECTION MODULE	6038T08P04	GLHTWHL6	1,538.0	22.0%	78.0%	5,462	7,000	$70,035
STAGE 5 BLISK PARENT: COLD SECTION MODULE	6038T09P04	GLHTWJF1	1,538.0	22.0%	78.0%	5,462	7,000	$37,566
STAGE 1 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T06P03	GATHL4HK	2,929.0	41.8%	58.2%	4,071	7,000	$62,479
STAGE 2 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T12P03	GATHKRPJ	3,116.0	44.5%	55.5%	3,884	7,000	$56,395
STG 1 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T09P01	GFF5D6AL	2,145.0	30.6%	69.4%	4,855	7,000	$60,572
COMPRESSOR IMPELLER PARENT: COLD SECTION MODULE	6055T59P03	GLHTLLK1	2,291.0	45.8%	54.2%	2,709	5,000	$66,322
STAGE 3 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T32P02	GATHNKGP	3,480.0	69.6%	30.4%	1,520	5,000	$27,752
STAGE 4 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T34P06	GATHNKE2	3,480.0	69.6%	30.4%	1,520	5,000	$36,496
POWER TURBINE SHAFT PARENT: POWER TURBINE MODULE	5125T92G01	GATJ729N	1,128.0	22.6%	77.4%	3,872	5,000	$174,800
STG 2 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	4106T80P01	GFF5EFTG	1,912.0	38.2%	61.8%	3,088	5,000	$47,816
STG 2 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T07P06	GFF5GM30	2,307.0	54.9%	45.1%	1,893	4,200	$29,151
STG 1 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T08P03	GFF5E8FJ	3,528.0	92.8%	7.2%	272	3,800	$40,145

Component	PN	Serial	TSN	TSN % of Engine	Value remaining
COLD SECTION MODULE	6071T25G01	GEC914395	4,200.0	62.7%	$421,896
COMBUSTION LINER	6080T13G08	GGM9MDNK	3,250.0	48.5%	$282,885
MTCHD ROTOR/STATOR ASSY	3048T90G01	MRSCF851	2,533.0	37.8%	$265,200
FUEL CONTROL (HMU)	4046T52G42	17788642	3,252.0	48.6%	$263,080
ACCESSORY MODULE	6071T27G01	GED005230C	6,250.0	93.3%	$256,588
STAGE 1 NOZZLE ASSY	6071T04G32	MDK39FFR	3,250.0	48.5%	$137,275
POWER TURBINE MODULE	6071T26G02	GEL002101C	5,809.0	86.7%	$114,750
PARTICLE SEPARATOR BLOWER	6034T62P18	SUPK7402	5,364.0	80.1%	$67,076
ELECTRICAL CONTROL UNIT	4082T99G17	LMDU4002	11,740.0	175.3%	$21,000
ANTI-ICE VALVE	5066T38G08	M3220	4,180.0	62.4%	$25,936
NO 1 BALL BEARING PARENT: OUTPUT SHAFT ASSY	6064T34P02	FCAU6815	5,668.0	84.6%	$20,903
HISTORY RECORDER	4046T26G05	LMDH2181	3,250.0	48.5%	$20,025
O/S DRAIN VALVE ASSY	3046T17G02	APM639JD	5,212.0	77.8%	$19,437
COOLER, OIL	4046T25G06	UDDK3170	3,250.0	48.5%	$12,563
NO 2 ROLLER BEARING PARENT: OUTPUT SHAFT ASSY	5121T46P02	FCAK3861	5,826.0	87.0%	$12,360

Component	PN	Serial	TSN	TSN % of Engine	Value remaining
COLD SECTION MODULE	6071T25G01	GEC004256C	8,392.0	100.0%	$421,896
COMBUSTION LINER	6080T13G08	GGM9CH1E	2,571.0	30.6%	$282,885
MTCHD ROTOR/STATOR ASSY	3048T90G01	MRSCB038	2,415.0	28.8%	$265,200
ACCESSORY MODULE	6071T27G01	GED001405	5,240.0	62.4%	$256,588
POWER TURBINE MODULE	6071T26G02	GEL991805	3,480.0	41.5%	$114,750
FUEL CONTROL (HMU)	4046T52G37	17788768	3,092.0	36.8%	$72,250
PARTICLE SEPARATOR BLOWER	6034T62P18	GFM01698	1,949.0	23.2%	$67,076
NOZZLE,TURBINE,AIRCRAFT GAS TURBINE EN	6071T04G29	MDK2D1F6	2,081.0	24.8%	$41,480
ELECTRICAL CONTROL UNIT	4082T99G17	EDCU3776	6,657.0	79.3%	$35,700
ANTI-ICE VALVE	5066T38G08	AEX10146	3,764.0	44.9%	$25,936
NO 1 BALL BEARING PARENT: OUTPUT SHAFT ASSY	6064T34P02	FCAU9944	6,768.0	80.6%	$20,903
HISTORY RECORDER	4046T26G05	LMDH4476	1,538.0	18.3%	$20,025
O/S DRAIN VALVE ASSY	3046T17G02	APM679JN	1,703.0	20.3%	$19,437
COOLER, OIL	4046T25G06	UDC03013	4,588.0	54.7%	$12,563
NO 2 ROLLER BEARING PARENT: OUTPUT SHAFT ASSY	5121T46P02	FCABK464	6,289.0	74.9%	$12,360

Insp #	Item	Type	Frequency	Completed	Next due	Life used %	Life remaining %	Status	Price	Value remaining
A160	90 DAY CORROSION INSPECTION	Calendar	90 D	24 Nov 2025	22 Feb 2026	246.7%	-146.7%	DUE	$10,152	$0
A533	PITOT STATIC SYSTEM INSPECTION	Calendar	12 M	15 Jul 2024	15 Jul 2025	196.9%	-96.9%	DUE	$5,147	$0
A501	MAIN ROTOR BLADE SPAR PRESSURE CHECK	Calendar	6 M	13 Aug 2025	13 Feb 2026	177.2%	-77.2%	DUE	$1,897	$0
A110	PMS 40 HOUR INSPECTION	Hours	40 H	9024.7	9064.7	94.7%	5.3%	NEAR DUE	$6,325	$335
A625	REPLACEMENT OF SLAB BATTERY (SLAB)	Calendar	60 M	22 Apr 2022	22 Apr 2027	84.0%	16.0%	NEAR DUE	$5,000	$800
A472	REPLACE T/R SHAFT SUPPORT BEARINGS (CENTER)	Hours	2880 H	6837.9	9717.9	77.2%	22.8%	NEAR DUE	$10,000	$2,280
A473	REPLACE T/R SHAFT SUPPORT BEARINGS (AFT)	Hours	2880 H	6837.9	9717.9	77.2%	22.8%	NEAR DUE	$10,000	$2,280
A471	REPLACE T/R SHAFT SUPPORT BEARINGS (FWD)	Hours	2880 H	6837.9	9717.9	77.2%	22.8%	NEAR DUE	$10,000	$2,280
A296	INSPECT STABILATOR ATTACH FITTINGS	Hours	360 H	8788.0	9148.0	76.3%	23.7%	NEAR DUE	$4,223	$1,001
A670	CABIN TUB INSPECTION	Calendar	48 M	04 Jul 2023	04 Jul 2027	75.0%	25.0%	OK	$20,000	$5,000
A675	FLIGHT CONTROL RODS INSPECTION	Calendar	48 M	05 Jul 2023	05 Jul 2027	75.0%	25.0%	OK	$20,000	$5,000
A470	REPLACE NUMBER TWO CROSSFEED VALVE	Hours	1500 H	7947.7	9447.7	74.3%	25.7%	OK	$10,000	$2,570
A665	REPLACE FUEL CELL O-RING SEAL PN MS29513-215	Calendar	48 M	25 Jul 2023	25 Jul 2027	73.6%	26.4%	OK	$20,000	$5,280
A673	FUEL CELL CORROSION INSPECTION	Calendar	48 M	25 Jul 2023	25 Jul 2027	73.6%	26.4%	OK	$20,000	$5,280
A399	PMI DUE	Calendar	48 M	02 Aug 2023	02 Aug 2027	73.0%	27.0%	OK	$80,000	$21,600
A400	PMI-1	Hours	960 H	8899.1	9379.1	67.0%	33.0%	OK	$125,000	$41,250
A480	REPLACE PIVOT BOLT 70400-08159-101,102,103,1 04	Hours	10000 H	4842.8	14842.8	42.2%	57.8%	OK	$10,000	$5,780
A485	REPLACE BELLCRANK BOLT 70400-08159-105,106,1 07,108	Hours	10000 H	4842.8	14842.8	42.2%	57.8%	OK	$10,000	$5,780
A648	REPLACE T/R SPRING CAPSULE ASSY	Calendar	180 M	17 May 2021	17 May 2036	34.2%	65.8%	OK	$20,000	$13,160
A305	LUBRICATE ROTARY INPUTS	Hours	480 H	8899.1	9379.1	34.1%	65.9%	OK	$10,037	$6,614
A320	ENGINE INSPECTION CLEANING	Hours	480 H	8899.1	9379.1	34.1%	65.9%	OK	$2,240	$1,476
A210	120 HOUR INSPECTION REQUIREMENTS	Hours	120 H	9024.7	9144.7	31.6%	68.4%	OK	$12,766	$8,732
A477	REPLACEMENT OF STABILATOR ACTUATOR BOLTS	Hours	5000 H	7947.7	12947.7	22.3%	77.7%	OK	$10,000	$7,770
A401	PMI-2	Hours	960 H	8899.1	9859.1	17.0%	83.0%	OK	$230,000	$190,900

This aircraft has multiple open safety items requiring immediate attention before flight. The aircraft is restricted from IMC/overwater operations due to trim inoperative, and cargo hook operations are restricted due to intermittent manual release. VHF and FM2 backlighting are inoperative, and a deice system MOC is required. Additionally, the aircraft was inducted into the BEST program in April 2026 with no scheduled maintenance performed after that date.

Fault 2025-02-12 9,053.3 hrs high

Aircraft restricted from IMC and overwater operations due to inoperative trim and DGNS limitations per AWR.

OPERATE WITHIN THE LIMITATIONS PRESCRIBED IN THE ENCLOSED AWR’ S: AWR2369R3 DTD 28 MAR 24 (DGNS, AN/ASN-128D): AWR2294R3 DTD 28 OCT 24 (PPA); AWR 2277R2 DTD 27SEP24 (Getac T800 Windows 1 0 Tablet); AWR 2261R2 DTD 01 MAY 24 (EFB); AWR…
Fault 2024-09-24 9,024.7 hrs high

Aircraft restricted from cargo hook operations due to intermittent manual release.

ACFT restricted from cargo hook operations due to cargo hook m anual release intermittent operation. Cargo hook release fails step 6 of Operational Check - Manual Release Mode. TM 1-1520- 237-CL-1, page D4-1. | resolved: Completed cargo…
Fault 2024-11-26 9,049.3 hrs high

VHF backlighting inoperative, open since November 2024.

VHF BACKLIGHTING INOP | status: open | recorded 2024-11-26 @ 9049.3h
Fault 2024-11-26 9,049.3 hrs high

FM2 inoperative, removed due to BEST program induction.

FM2 INOP | resolved: FM'S REMOVED DUE TO INDUCTION INTO BEST PROGRAM. | status: closed | recorded 2024-11-26 @ 9049.3h | closed 2026-02-26 @ 9062.6h
Fault 2025-05-15 9,060.3 hrs high

Deice system MOC required due to disconnection of deice cables on black main rotor blade.

DEICE SYSTEM MOC REQUIRED DUE TO DISCONNECTION OF DEICE CABLES ON BLACK M/R BLADE | status: open | recorded 2025-05-15 @ 9060.3h
Fault 2025-11-24 9,062.6 hrs medium

Tail wheel valve cap not installed, missing part.

TAIL WHEEL VALVE CAP NOT INSTALLED, NOT ON ACFT, NSN: 1650-00- 222-4525 | status: open | recorded 2025-11-24 @ 9062.6h

One structural issue identified: the left-hand copilot's windshield was cracked in the outer pane only and has been replaced. No other open structural concerns are documented.

Fault 2025-04-27 9,056.6 hrs high

Left-hand copilot windshield cracked on top side in outer pane only, cleared for one-time flight.

LH COPILOT'S WINDSHIELD CRACKED ON TOP SIDE IN THE OUTER PANE ONLY. AIRCRAFT CLEARED FOR ONE TIME FLIGHT FROM KCRP TO HOME S TATION AT KHLR PER LTC SAAD 2-227 GSAB BN COMMANDER | resolved: Writeup entered for one time flight. Upgraded to…
Fault 2025-04-27 9,060.3 hrs high

Damaged windshield was replaced, closed fault documenting the repair.

LH COPILOT'S WINDSHIELD CRACKED ON TOP SIDE IN THE OUTER PANE ONLY. | resolved: REPLACED DAMAGED WINDSHEILD | status: closed | recorded 2025-04-27 @ 9060.3h | closed 2025-06-09 @ 9060.3h

This aircraft has multiple open Aviation Safety Action Messages requiring compliance. Critical items include H-60-26-SOF-02 (non-conforming primary main rotor servos), H-60-26-SOF-01 (non-conforming primary main rotor servos), GEN-26-AMAM-01 (recurring ADS-B inspection), H-60-25-ASAM-10 (pilot and copilot seat harness replacement due by 31 Jan 26), H-60-25-ASAM-11 (main landing gear axle radial movement inspection), and H-60-22-AMAM-08 (NAS1304 bolt inspection due by 14 Jul 26). Several historical ASAMs have been complied with.

Fault 2025-12-11 8,211.6 hrs high

H-60-26-SOF-02 non-conforming primary main rotor servos not complied with, open at 8211.6 hours.

SAFETY MESSAGE NUMBER: H-60-26-SOF-02 DESCRIPTION: COMPLY WITH H-60-26-SOF-02, NON-CONFORMING PRIMARY MAIN ROTOR SERVOS, PRI OR TO NEXT FLIGHT, BUT NOT TO EXCEED 17 DEC 2025. FOR SERVO, P RIMARY MAIN ROTOR CAGE: 78286 PN: 70410-02820-054…
Fault 2025-12-11 6,912.6 hrs high

H-60-26-SOF-02 non-conforming primary main rotor servos not complied with, duplicate entry at 6912.6 hours.

SAFETY MESSAGE NUMBER: H-60-26-SOF-02 DESCRIPTION: COMPLY WITH H-60-26-SOF-02, NON-CONFORMING PRIMARY MAIN ROTOR SERVOS, PRI OR TO NEXT FLIGHT, BUT NOT TO EXCEED 17 DEC 2025. FOR SERVO, P RIMARY MAIN ROTOR CAGE: 78286 PN: 70410-02820-054…
Fault 2025-12-11 6,127.6 hrs high

H-60-26-SOF-02 non-conforming primary main rotor servos not complied with, duplicate entry at 6127.6 hours.

SAFETY MESSAGE NUMBER: H-60-26-SOF-02 DESCRIPTION: COMPLY WITH H-60-26-SOF-02, NON-CONFORMING PRIMARY MAIN ROTOR SERVOS, PRI OR TO NEXT FLIGHT, BUT NOT TO EXCEED 17 DEC 2025. FOR SERVO, P RIMARY MAIN ROTOR CAGE: 78286 PN: 70410-02820-054…
Fault 2025-12-04 9,062.6 hrs high

H-60-26-SOF-01 non-conforming primary main rotor servos not complied with, open.

SAFETY MESSAGE NUMBER: H-60-26-SOF-01 DESCRIPTION: COMPLY WITH H-60-26-SOF-01, NON-CONFORMING PRIMARY MAIN ROTOR SERVOS, PRI OR TO NEXT FLIGHT, BUT NOT TO EXCEED 7 DEC 2025.. IS DUE: 07 DEC 2025 CALENDAR | resolved: Complied with…
Fault 2026-01-17 9,062.6 hrs high

GEN-26-AMAM-01 recurring ADS-B inspection not complied with, open.

SAFETY MESSAGE NUMBER: GEN-26-AMAM-01 DESCRIPTION: COMPLY WITH GEN-26-AMAM-01, RECURRING AUTOMATIC DEPENDENT SURVEILLANCE-BR OADCAST(OUT) [ADS-B(OUT)] INSPECTION LCF UPDATE. WAS DUE: 16 JAN 2026 CALENDAR | status: open | recorded…
Fault 2026-01-14 9,062.6 hrs high

GEN-26-AMAM-01 recurring ADS-B inspection not complied with, duplicate entry.

SAFETY MESSAGE NUMBER: GEN-26-AMAM-01 DESCRIPTION: COMPLY WITH GEN-26-AMAM-01, RECURRING AUTOMATIC DEPENDENT SURVEILLANCE-BR OADCAST(OUT) [ADS-B(OUT)] INSPECTION LCF UPDATE. IS DUE: 16 J AN 2026 CALENDAR | resolved: STATUS SYMBOL UPGRADED…
Fault 2025-07-08 9,062.6 hrs high

H-60-25-ASAM-10 pilot and copilot seat harness assembly replacement due 22 Jan 26.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-10 DESCRIPTION: PILOT AND COPILOT SEAT HARNESS ASSEMBLY REPLACEMENT. IS DUE: 22 JUL 202 5 CALENDAR | resolved: Inspected Pilot and Co-pilot seats; both seats are config 2. | status: closed | recorded…
Fault 2025-07-10 9,062.6 hrs high

H-60-25-ASAM-10 pilot seat harness assembly replaced, closed fault.

PILOT SEAT HARNESS ASSEMBLY REQUIRES REPLACEMENT PER H-60-25-A SAM-10 NO LATER THAN 31 JAN 26 | resolved: replaced seat belt | status: closed | recorded 2025-07-10 @ 9062.6h | closed 2025-09-04 @ 9062.6h
Fault 2025-07-10 9,062.6 hrs high

H-60-25-ASAM-10 copilot seat harness assembly replaced, closed fault.

COPILOT SEAT HARNESS ASSEMBLY REQUIRES REPLACEMENT PER H-60-25 -ASAM-10 NO LATER THAN 31 JAN 26 | resolved: replaced seat belt assybly | status: closed | recorded 2025-07-10 @ 9062.6h | closed 2025-09-04 @ 9062.6h
Fault 2025-08-15 9,062.6 hrs high

H-60-25-ASAM-11 main landing gear axle radial movement inspection due at 9062.6 hours at next scheduled inspection.

COMPLY WITH H-60-25-ASAM-11, MAIN LANDING GEAR AXLE RADIAL MOV EMENT INSEPECITON, AT 9062.6 ACFT HOURS AT THE NEXT SCHEDULED PREVENTIVE MAINTENANCE INSPECTION (PMI) BUT NOT TO EXCEED 14 A UG 2027. | status: open | recorded 2025-08-15 @…
Fault 2025-04-29 9,060.3 hrs high

H-60-25-ASAM-07 reliability enhanced stabilator actuator inspection complied with prior to next flight.

COMPLY WITH H-60-25-ASAM-07, RELIABILITY ENHANCED STABILATOR A CTUATOR INSPECTION, PRIOR TO NEXT FLIGHT, BUT NOT TO EXCEED 1 MAY 25. | resolved: COMPLIED WITH H-60-25-ASAM-07, RELIABILITY ENHANCED STABIL ATOR ACTUATOR INSPECION. | status:…
Fault 2025-04-29 9,060.3 hrs high

H-60-25-ASAM-08 main generator lug terminal inspection complied with by 12 May 25.

COMPLY WITH H-60-25-ASAM-08, MAIN GENERATOR LUG TERMINAL INSPE CTION BY 12 MAY 25. | resolved: COMPLIED WITH H-60-25-ASAM-08, MAIN GENERATOR LUG TERMINAL INSPECTION. | status: closed | recorded 2025-04-29 @ 9060.3h | closed 2025-05-05 @…
Fault 2025-04-29 9,060.3 hrs high

H-60-25-ASAM-06 ADS-B inspection complied with by 28 May 25.

COMPLY WITH H-60-25-ASAM-06, AUTOMATIC DEPENDENT SURVEILLANCE- BROADCAST (OUT) (ADS-B(OUT)) INSPECTION BY 28 MAY 25. | resolved: MOC COMPLETE CHECK FOUND GOOD | status: closed | recorded 2025-04-29 @ 9060.3h | closed 2025-06-16 @ 9060.3h
Fault 2025-04-29 9,060.3 hrs high

H-60-25-ASAM-04 main rotor blade inspection complied with by 11 May 25.

COMPLY WITH H-60-25-ASAM-04, MAIN ROTOR BLADE PN 70150-09100-0 43 INSPECTION BY 11 MAY 25. | resolved: COMPLIED WITH H-60-25-ASAM-04, MAIN ROTOR BLADE PN 70150-0 9100-043 INSPECTION. THE FOLLOWING BLADES ARE AFFECTED AND REQUIRE…
Fault 2025-04-29 9,060.3 hrs high

H-60-25-ASAM-05 T700 series accessory module replacement before 9070.3 hours, but not later than 11 May 25.

COMPLY WITH H-60-25-ASAM-05, T700 SERIES ACCESSORY MODULE REPL ACEMENT, BEFORE 9070.3 HOURS, BUT NOT LATER THAN 11 MAY 25. | resolved: COMPLIED WITH H-60-25-ASAM-05, T700 SERIES ACCESSORY SECTI ON MODULE REPLACEMENT. | status: closed |…
Fault 2022-07-15 8,767.9 hrs high

H-60-22-AMAM-08 NAS1304 bolt inspection at next scheduled inspection, due by 14 Jul 26.

SAFETY MESSAGE NUMBER: H-60-22-AMAM-08 DESCRIPTION: COMPLY WIT H H-60-22-AMAM-08, NAS1304 BOLT INSPECTION AT THE NEXT SCHEDUL ED PMI BUT NOT TO EXCEED 14 JUL 26.. IS DUE: 14 JUL 2026 CALE NDAR | status: open | recorded 2022-07-15 @ 8767.9h
Fault 2023-07-05 8,899.1 hrs high

H-60-22-AMAM-08 NAS1304 inboard 2nd stage attachment bolts require replacement by 14 Jul 26.

BOLTS NAS1304 ( INBOARD 2ND STAGE ATTACHMENT BOLTS 2EA) REQUIR ES REPLACEMENT PER "H-60-22AMAM-08 BY 14 JUL 26" | status: open | recorded 2023-07-05 @ 8899.1h
Fault 2023-07-05 8,899.1 hrs high

H-60-22-AMAM-08 NAS1304 all 1st stage attachment bolts require replacement by 14 Jul 26.

BOLTS NAS1304 ( ALL 1ST STAGE ATTACHMENT BOLTS 4EA) REQUIRES R EPLACEMENT PER "H-60-22AMAM-08 BY 14 JUL 26" | status: open | recorded 2023-07-05 @ 8899.1h
Fault 2025-07-10 9,062.6 hrs Entry error medium

Entry error: copilot seat harness assembly requires replacement per H-60-25-ASAM-10 no later than 31 Jan 26.

[ENTRY ERROR] COPILOT SEAT HARNESS ASSEMBLY REQUIRES REPLACEMENT PER H-60-25 -ASAM-10 NO LATER THAN 31 JAN 26 | resolved: CLOSED IN ERROR BY MUELLER, JASON CIV Entry made in error. | status: closed | recorded 2025-07-10 @ 9062.6h |…
Fault 2025-07-10 9,062.6 hrs Entry error medium

Entry error: copilot seat harness assembly requires replacement per H-60-25-ASAM-10 no later than 31 Jan 26, duplicate.

[ENTRY ERROR] COPILOT SEAT HARNESS ASSEMBLY REQUIRES REPLACEMENT PER H-60-25 -ASAM-10 NO LATER THAN 31 JAN 26 | resolved: CLOSED IN ERROR BY MUELLER, JASON CIV Entry made in error. | status: closed | recorded 2025-07-10 @ 9062.6h |…

The aircraft was inducted into the BEST program on 06 April 2026 at 9062.6 hours, with no DA 2408-18 scheduled maintenance performed after that date. Multiple components are nearing end of life or require replacement, including main rotor blades requiring replacement per H-60-25-ASAM-04 at 9110.3 hours, and several 9-11 hour torque checks due on main rotor blade hardware. High-time items and accumulated wear are evident across multiple systems.

Fault 2026-04-23 9,062.6 hrs high

Aircraft inducted into BEST program on 06 April 2026 at 9062.6 hours; no scheduled maintenance performed after this date.

Aircraft inducted into the BEST Program on 06-APR-2026. No DA 2408-18 scheduled maintenance performed after this date. | status: open | recorded 2026-04-23 @ 9062.6h
Fault 2025-05-02 9,060.3 hrs high

Main rotor blade PN 70150-09100-043F SN A007-16450 requires replacement per H-60-25-ASAM-04 at 9110.3 aircraft hours.

MAIN ROTOR BLADE PN 70150-09100-043F, SN A007-16450 REQUIRES R EPLACEMENT PER H-60-25-ASAM-04 AT 9110.3 AIRCRAFT HOURS, BUT N OT TO EXCEED 3 JUN 25. | resolved: REPLACED WITH SN: A007-19756 | status: closed | recorded 2025-05-02 @ 9060.3h…
Fault 2025-05-02 9,060.3 hrs high

Main rotor blade PN 70150-09100-043F SN A007-07151 requires replacement per H-60-25-ASAM-04 at 9110.3 aircraft hours.

MAIN ROTOR BLADE PN 70150-09100-043F, SN A007-07151 REQUIRES R EPLACEMENT PER H-60-25-ASAM-04 AT 9110.3 AIRCRAFT HOURS, BUT N OT TO EXCEED 3 JUN 25. | resolved: REPLACED WITH SN: A007-19582 | status: closed | recorded 2025-05-02 @ 9060.3h…
Fault 2025-05-14 9,060.3 hrs high

9-11 hour torque check required on black main rotor blade outboard damper attachment hardware due to replacement.

9-11 HOUR TORQUE CHECK REQUIRED ON BLACK MAIN ROTOR BLADE OUTB OARD DAMPER ATTACHMENT HDWR DUE TO THE REPLACEMENT OF BLACK SP INDLE. DUE BETWEEN 9069.3 TO 9071.3 FLIGHT HOURS. 2ND ATTEMPT | status: open | recorded 2025-05-14 @ 9060.3h
Fault 2025-05-15 9,060.3 hrs high

9-11 hour torque check due on black spindle attachment hardware at 9069.3 to 9071.3 flight hours.

9-11 HR TQ CHECK DUE ON BLACK SPINDLE ATTACHMENT HARDWARE AT 9 069.3 TO 9071.3 FLIGHT HOURS DUE TO THE REPLACEMENT OF SPINDLE . 2ND ATTEMPT | resolved: WRITTEN UP TWICE | status: closed | recorded 2025-05-15 @ 9060.3h | closed 2025-06-16 @…
Fault 2025-05-15 9,060.3 hrs Entry error medium

Entry error: 9-11 hour torque check due on spindle attachment hardware at 9069.3 to 9071.3 flight hours.

[ENTRY ERROR] 9-11 HR TQ CHECK DUE ON SPINDLE ATTACHMENT HARDWARE AT 9069.3 TO 9071.3 FLIGHT HOURS DUE TO THE REPLACEMENT OF SPINDLE. 2ND ATTEMPT | resolved: WRITTEN IN ERROR | status: closed | recorded 2025-05-15 @ 9060.3h | closed…
Fault 2024-12-19 9,049.3 hrs high

Black outboard damper attachment hardware requires proseal after 9-11 hour torque stabilized, open since December 2024.

BLACK OUTBOARD DAMPER ATTACHMENT HARDWARE REQUIRES PROSEAL AFT ER 9-11 HOUR TORQUE STABILIZED | status: open | recorded 2024-12-19 @ 9049.3h
Fault 2024-12-19 9,049.3 hrs high

9-11 hour torque check required on black main rotor blade spindle to blade bonding jumper hardware.

9-11 HOUR TORQUE CHECK REQUIRED ON BLACK MAIN ROTOR BLADE SPIN DLE TO BLADE BODING JUMPER HARDWARE DUE TO THE REPLACEMENT OF BLACK SPINDLE. DUE BETWEEN 9058.3 TO 9060.3 FLIGHT HOURS | resolved: comlpeted. tq'd to 713 in lbs | status:…
Fault 2024-12-19 9,049.3 hrs high

9-11 hour torque check required on black main rotor blade outboard damper attachment hardware, duplicate entry.

9-11 HOUR TORQUE CHECK REQUIRED ON BLACK MAIN ROTOR BLADE OUTB OARD DAMPER ATTACHMENT HDWR DUE TO THE REPLACEMENT OF BLACK SP INDLE. DUE BETWEEN 9058.3 TO 9060.3 FLIGHT HOURS | resolved: COMPLETED. TQ CHECK FAILED | status: closed |…
Fault 2024-12-19 9,049.3 hrs high

9-11 hour torque check due on spindle attachment hardware at 9058.3 to 9060.3 flight hours.

9-11 HR TQ CHECK DUE ON SPINDLE ATTACHMENT HARDWARE AT 9058.3 TO 9060.3 FLIGHT HOURS DUE TO THE REPLACEMENT OF BLACK SPINDLE | resolved: TQ CHECK FAILED. BOLTS 6,8, AND 11 FAILED TO STABILIZE | status: closed | recorded 2024-12-19 @…
Fault 2024-12-19 9,049.3 hrs Entry error medium

Entry error: 9-11 hour torque check required on black main rotor blade anti-flap hardware due to replacement.

[ENTRY ERROR] 9-11 HOUR TORQUE CHECK REQUIRED ON BLACK MAIN ROTOR BLADE ANTI FLAP HDWR DUE TO THE REPLACEMENT OF BLACK SPINDLE. DUE BETWEEN 9058.3 TO 9060.3 FLIGHT HOURS | resolved: entered in error. tq verified to 195 in lbs | status:…

The seller has flagged critical items for buyer attention. The following items have been removed from the aircraft at the direction of the U.S. Government: specific components are listed in the notice to buyer. The aircraft was inducted into the BEST program on 23 February 2026 and transferred to ASF HOOD. Resample of APU and main transmission module is required prior to next start-up due to incomplete records. Batteries were removed due to ORF status.

Fault 2026-04-17 9,062.6 hrs high

Notice to buyer: items have been removed from the aircraft at the direction of the U.S. Government.

NOTICE TO BUYER: The following items have been removed from th e aircraft at the direction of the U.S. Government; to include but not limited to: CMWS JUNCTION BOC; SA-26669/ALE-47 (V) CM WS SEQUENCER; SENSOR ELECTRO-OPTIC MISSLE…
Historical 2026-02-23 high

Aircraft transferred to BEST program on 23 February 2026 for ARMY/BEST program by ASF HOOD at 9062.6 aircraft hours.

Aircraft transfered to BEST program on 23 February 2026 for AR MY / BEST program by ASF HOOD (W6TU14) @ 9062.6 acft hrs. Data Plate remains installed | at W6TU14 | on 2026-02-23
Fault 2026-04-23 9,062.6 hrs high

Resample of APU SN SPE041042 required prior to next start-up due to incomplete records.

RESAMPLE OF APU SN: SPE041042 REQUIRED PRIOR TO NEXT START UP DUE TO INCOMPLETE RECORDS. | status: open | recorded 2026-04-23 @ 9062.6h
Fault 2026-04-23 9,062.6 hrs high

Resample required of main transmission module SN A80301901 due to incomplete records.

RESAMPLE REQUIRED OF MAIN TRANSMISSION MODULE SN: A80301901 DU E TO INCOMPLETE RECORDS | status: open | recorded 2026-04-23 @ 9062.6h
Fault 2025-08-27 9,062.6 hrs medium

Informational write-up: batteries were removed due to aircraft being on ORF status.

INFORMATIONAL WRITE-UP: THE FOLLOWING BATTERIES WERE REMOVED D UE TO THE AIRCRAFT BEING ON ORF STATUS. THE BATTERIES WILL BE REINSTALLED WHEN THE AIRCRAFT RETURNS TO A FLYABLE STATUS: GMR BATTERY, KGV BATTERY, KY-58 BATTERIES (2 EA),…
Historical 2025-07-10 high

Pilot and copilot seat harness assembly replacement performed on 10 July 2025.

PILOT AND COPILOT SEAT HARNESS ASSEMBLY REPLACEMENT | at WYPPA0 TX,CO,CA,KS | on 2025-07-10

Several administrative gaps and data-quality issues are present. Multiple entry errors have been documented, including duplicate entries for seat harness replacement requirements and torque check requirements. One entry was made in error with incorrect tail number. These issues may indicate incomplete or inconsistent record-keeping.

Fault 2025-07-10 9,062.6 hrs Entry error high

Entry error: copilot seat harness assembly requires replacement per H-60-25-ASAM-10, duplicate administrative entry.

[ENTRY ERROR] COPILOT SEAT HARNESS ASSEMBLY REQUIRES REPLACEMENT PER H-60-25 -ASAM-10 NO LATER THAN 31 JAN 26 | resolved: CLOSED IN ERROR BY MUELLER, JASON CIV Entry made in error. | status: closed | recorded 2025-07-10 @ 9062.6h |…
Fault 2025-07-10 9,062.6 hrs Entry error high

Entry error: copilot seat harness assembly requires replacement per H-60-25-ASAM-10, duplicate administrative entry.

[ENTRY ERROR] COPILOT SEAT HARNESS ASSEMBLY REQUIRES REPLACEMENT PER H-60-25 -ASAM-10 NO LATER THAN 31 JAN 26 | resolved: CLOSED IN ERROR BY MUELLER, JASON CIV Entry made in error. | status: closed | recorded 2025-07-10 @ 9062.6h |…
Fault 2025-05-15 9,060.3 hrs Entry error high

Entry error: 9-11 hour torque check due on spindle attachment hardware, administrative duplicate.

[ENTRY ERROR] 9-11 HR TQ CHECK DUE ON SPINDLE ATTACHMENT HARDWARE AT 9069.3 TO 9071.3 FLIGHT HOURS DUE TO THE REPLACEMENT OF SPINDLE. 2ND ATTEMPT | resolved: WRITTEN IN ERROR | status: closed | recorded 2025-05-15 @ 9060.3h | closed…
Fault 2024-12-19 9,049.3 hrs Entry error high

Entry error: 9-11 hour torque check required on black main rotor blade anti-flap hardware, administrative duplicate.

[ENTRY ERROR] 9-11 HOUR TORQUE CHECK REQUIRED ON BLACK MAIN ROTOR BLADE ANTI FLAP HDWR DUE TO THE REPLACEMENT OF BLACK SPINDLE. DUE BETWEEN 9058.3 TO 9060.3 FLIGHT HOURS | resolved: entered in error. tq verified to 195 in lbs | status:…
Fault 2025-06-11 9,060.3 hrs Entry error medium

Entry error: inspection manually generated, PMI due entry was made in error.

[ENTRY ERROR] INSP A399 PMI DUE FOR HELICPTR UTIL UH-60L CAGE: 78286 PN: UH- 60L NSN: 1520012984532 SN: 9826812 WAS DUE. STATUS UPGRADED TO X ON: 10 JUN 2025 REFERENCE: TM 1-1520-237-20P | resolved: Fault entered in error. PMI-2…
Historical 2022-01-31 Entry error high

Entry error: entry was made in error with incorrect tail number, late entry MEC F348328.

[ENTRY ERROR] THE FOLLOWING ENTRY WAS MADE IN ERROR, INCORRECT TAIL NUMBER " LATE ENRTY: MEC F348328 FT HOOD AMCOM LRC-A MAY REUSE THE ROTA RY INPUT BARRELS PROVIDED THAT THEY PASS THE NDI REQUIREMENT" | at WDX9A0 Hunter Army Airfield | on…

Records Search

Risk Analysis

Custom Analysis
