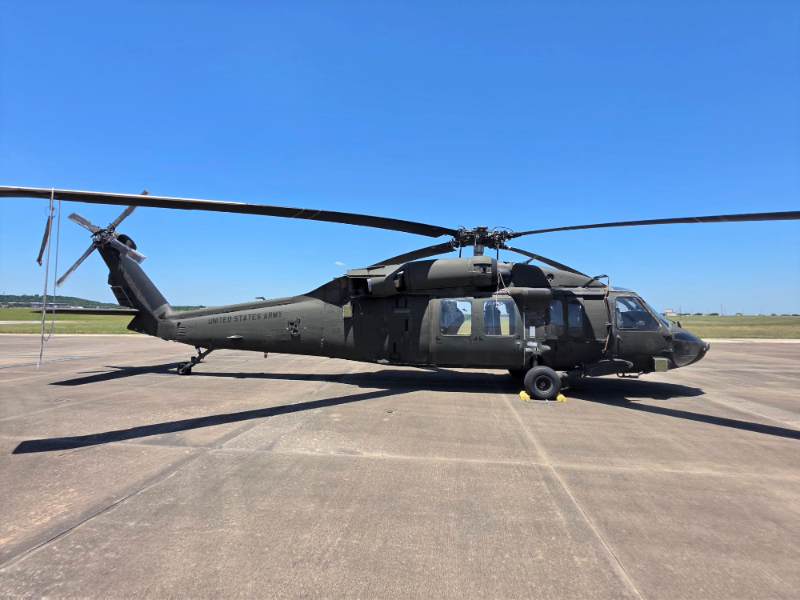

BladeStack UH-60L Demo

Component	PN	Serial	TSN	Hours at install	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
LATERAL SWASHPLATE LINK	70400-08151-061	1515206992	361.5	6,661 ACFT Hours at Install	1.9%	98.1%	18,638	19,000	$6,764
FORWARD BELLCRANK	70400-08101-046	1423	2,901.6	4,121 ACFT Hours at Install	15.3%	84.7%	16,098	19,000	$8,672
STATIONARY SWASHPLATE PARENT: SWASHPLATE ASSY	70104-08010-044	151521701	3,865.6	1,942 Parent Component Hours at Install	20.3%	79.7%	15,134	19,000	$51,776
MAIN ROTOR SHAFT PARENT: MAIN TRANSMISSION MODULE	70351-38131-042	B32700456	6,000.6	2,594 Parent Component Hours at Install	33.3%	66.7%	11,999	18,000	$17,009
MAIN ROTOR SHAFT EXTENDER	70351-08186-043	C286-00493	6,580.6	3,454 ACFT Hours at Install	41.1%	58.9%	9,419	16,000	$26,656
SERVO ASSY, TAIL ROTOR	70410-06520-048	C30008231	361.5	6,661 ACFT Hours at Install	2.4%	97.6%	14,638	15,000	$70,509
LEFT TIE ROD ASSY	70400-08115-046	34402148	760.6	6,262 ACFT Hours at Install	5.4%	94.6%	13,239	14,000	$17,022
BIFILAR, M/R ROTOR ASSY	70107-08400-046	A32701845	7,022.6	5,099 ACFT Hours at Install	54.0%	46.0%	5,977	13,000	$30,876
SAS ACTUATOR	70410-02500-049	C11200658	1,881.6	5,538 ACFT Hours at Install	14.5%	85.5%	11,118	13,000	$16,164
SAS ACTUATOR	70410-02500-049	C11201531	913.5	6,661 ACFT Hours at Install	7.0%	93.0%	12,086	13,000	$17,572
SAS ACTUATOR	70410-02500-049	C11204213	1,920.6	5,538 ACFT Hours at Install	14.8%	85.2%	11,079	13,000	$16,108
AFT BELLCRANK	70400-08102-045	H34501539	760.6	6,262 ACFT Hours at Install	5.9%	94.1%	12,239	13,000	$9,886
O/B RETENTION PLATE (T/R)	70102-11101-042	A25702128	5,780.6	6,262 ACFT Hours at Install	48.2%	51.8%	6,219	12,000	$7,053
PLANETARY CARRIER ASSY PARENT: MAIN TRANSMISSION MODULE	70351-38175-042	E31815017	1,923.6	2,594 Parent Component Hours at Install	16.0%	84.0%	10,076	12,000	$37,786
I/B RETENTION PLATE T/R PARENT: TAIL ROTOR GEARBOX ASSY	70358-06612-042	FM0766	1,228.6	3,593 Parent Component Hours at Install	10.2%	89.8%	10,771	12,000	$16,684
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	C47912197	1,986.6	3,460 Parent Component Hours at Install	16.6%	83.4%	10,013	12,000	$1,144
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	F47916683	760.6	0 Parent Component Hours at Install	6.3%	93.7%	11,239	12,000	$1,284
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	F47905339	1,923.6	0 Parent Component Hours at Install	16.0%	84.0%	10,076	12,000	$1,151
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	389134790	1,228.6	595 Parent Component Hours at Install	10.2%	89.8%	10,771	12,000	$1,231
LATERAL SERVO BELLCRANK	70400-08166-041	F33703702	2,901.6	4,121 ACFT Hours at Install	26.4%	73.6%	8,098	11,000	$7,806
ROTATING SWASHPLATE PARENT: SWASHPLATE ASSY	70104-08001-045	015152-1958	3,865.6	0 Parent Component Hours at Install	35.1%	64.9%	7,134	11,000	$42,158
NUT ASSY, MAIN ROTOR	70103-08005-104	9	916.9	6,340 ACFT Hours at Install	10.2%	89.8%	8,083	9,000	$2,216
PISTON, MAIN L/GEAR STR PARENT: FWD FIXED GEAR SHOCK	70250-12067-102	BEM1917	1,923.6	0 Parent Component Hours at Install	21.4%	78.6%	7,076	9,000	$3,735
PISTON, MAIN L/GEAR STR PARENT: FWD FIXED GEAR SHOCK	70250-12067-102	IA07561	4,183.6	0 Parent Component Hours at Install	46.5%	53.5%	4,816	9,000	$2,542
MAIN ROTOR BLADE ASSY	70150-09100-043	A00702600	3,765.6	6,661 ACFT Hours at Install	42.8%	57.2%	5,034	8,800	$93,560
MAIN ROTOR BLADE ASSY	70150-09100-043	A007-05219	6,728.6	6,661 ACFT Hours at Install	76.5%	23.5%	2,071	8,800	$38,495
MAIN ROTOR BLADE ASSY	70150-09100-043	A00716223	994.6	6,661 ACFT Hours at Install	11.3%	88.7%	7,805	8,800	$145,056
MAIN ROTOR BLADE ASSY	70150-09100-043	A007-17256	142.2	6,880 ACFT Hours at Install	1.6%	98.4%	8,658	8,800	$160,897
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	A24116046	4,143.6	1,935 Parent Component Hours at Install	47.6%	52.4%	4,556	8,700	$4,201
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	H24103176	760.6	0 Parent Component Hours at Install	8.7%	91.3%	7,939	8,700	$7,320
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	33137519	361.5	1,562 Parent Component Hours at Install	4.2%	95.8%	8,338	8,700	$7,688
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	E24100628	1,821.6	595 Parent Component Hours at Install	20.9%	79.1%	6,878	8,700	$6,342
HOUSING ASSY MGB PARENT: MAIN TRANSMISSION MODULE	70351-38110-045	A30700375	4,433.6	2,594 Parent Component Hours at Install	54.1%	45.9%	3,766	8,200	$46,880
MAIN ROTOR SPINDLE ASSY	70102-08200-069	A00115913	760.6	6,262 ACFT Hours at Install	12.3%	87.7%	5,439	6,200	$84,223
MAIN ROTOR SPINDLE ASSY	70102-08200-069	D00112546	1,923.6	5,794 ACFT Hours at Install	31.0%	69.0%	4,276	6,200	$66,215
MAIN ROTOR SPINDLE ASSY	70102-08200-069	A00100374	4,072.6	6,410 ACFT Hours at Install	65.7%	34.3%	2,127	6,200	$32,940
MAIN ROTOR SPINDLE ASSY	70102-08200-069	D00112985	1,823.6	5,794 ACFT Hours at Install	29.4%	70.6%	4,376	6,200	$67,764
GEARSHAFT, BEVEL PARENT: TAIL ROTOR GEARBOX ASSY	70358-06620-102	G32000268	1,228.6	3,593 Parent Component Hours at Install	21.2%	78.8%	4,571	5,800	$27,586
FWD BELLCRANK SPT ASSY	70400-08162-042	B367-04189	2,901.6	4,121 ACFT Hours at Install	53.7%	46.3%	2,498	5,400	$9,613
HUB, M/R ROTOR ASSY	70103-08112-047	B30801507	1,923.6	5,099 ACFT Hours at Install	37.7%	62.3%	3,176	5,100	$115,222
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	G237-02927	1,876.6	4,852 Parent Component Hours at Install	37.5%	62.5%	3,123	5,000	$7,166
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	A23711020	441.6	6,087 Parent Component Hours at Install	8.8%	91.2%	4,558	5,000	$10,458
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	H237-06106	142.2	0 Parent Component Hours at Install	2.8%	97.2%	4,858	5,000	$11,145
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	G23703972	994.6	0 Parent Component Hours at Install	19.9%	80.1%	4,005	5,000	$9,189
FAN AXIAL	70361-03005-107	5036000060	5,373.6	4,475 ACFT Hours at Install	66.3%	33.7%	1,292	3,840	$11,611
T/R PITCH CHANGE SHAFT	70400-06100-042	D23301128	3,595.5	6,661 ACFT Hours at Install	12.6%	87.4%	2,518	2,880	$7,729

Component	PN	Serial	TSN	Hours at install	TSN % of ACFT	Value remaining
MAIN TRANSMISSION MODULE	70351-48100-042	A80300494	4,517.6	5,099 ACFT Hours at Install	64.3%	$1,445,000
TAIL ROTOR GEARBOX ASSY	70358-06600-046	A00602164	4,821.6	5,794 ACFT Hours at Install	68.7%	$195,500
INPUT MODULE	70351-08001-049	A264-02088	6,816.6	3,454 ACFT Hours at Install	97.1%	$192,100
INPUT MODULE	70351-08001-049	A264-00624	7,329.6	3,454 ACFT Hours at Install	104.4%	$113,000
SWASHPLATE ASSY	70104-08000-050	151521958	3,865.6	5,099 ACFT Hours at Install	55.0%	$167,492
SERVO, PRIMARY MAIN ROTOR	274000-1035	B30321440	361.5	6,661 ACFT Hours at Install	5.1%	$165,747
TAIL ROTOR BLADE ASSY	70101-31000-043	A009-10451	2,004.4	6,541 ACFT Hours at Install	28.5%	$116,875
TAIL ROTOR BLADE ASSY	70101-31000-043	A00909481	2,007.6	6,262 ACFT Hours at Install	28.6%	$116,875
FWD FIXED GEAR SHOCK	70250-12051-045	BEM1917	1,923.6	5,099 ACFT Hours at Install	27.4%	$95,692
FWD FIXED GEAR SHOCK	70250-12051-045	IA01550	4,183.6	5,099 ACFT Hours at Install	59.6%	$95,692
SERVO, PRIMARY MAIN ROTOR	70410-02820-055	B30302419B	4,780.6	6,262 ACFT Hours at Install	68.1%	$92,225
SERVO, PRIMARY MAIN ROTOR	274000-1031	B303-16355	1,397.6	5,625 ACFT Hours at Install	19.9%	$80,580
ATTITUDE HEADING REFERENCE UNIT	765100-200	10099	506.1	6,936 ACFT Hours at Install	7.2%	$69,417
STABILATOR ACTUATOR	DL2155M31MOD1	1644	646.6	6,971 ACFT Hours at Install	9.2%	$64,175
STABILATOR ACTUATOR	DL2155M31MOD1	3207	31.5	6,991 ACFT Hours at Install	0.4%	$64,175
GENERATOR	28B302-8-DM	5278E	1,477.8	6,665 ACFT Hours at Install	21.0%	$63,822
MIXER ASSEMBLY	70400-02300-046	TMD0464375303	1,651.6	5,371 ACFT Hours at Install	23.5%	$55,592
AUTOMAT FLT CONT COMPUTER	825050-1-001	2007011116	2,421.6	5,605 ACFT Hours at Install	34.5%	$46,750
PUMP MODULE ASSY, HYDRAULIC	53023-06	4182215ABR	2,784.6	5,099 ACFT Hours at Install	39.7%	$36,975
PUMP MODULE ASSY, HYDRAULIC	53023-07	K2649ABR	2,464.5	6,661 ACFT Hours at Install	35.1%	$36,975
ACCESSORY MODULE	70351-08080-043	A258-05296	6,905.6	668 ACFT Hours at Install	98.3%	$36,422
ACCESSORY MODULE	70351-08080-045	A258-07061	2,106.6	4,916 ACFT Hours at Install	30.0%	$36,422
TAIL CONE FITTING	70219-05001-044	B49701190	7,022.6	0 ACFT Hours at Install	100.0%	$34,000
INTERMEDIATE GEARBOX	70357-06300-042	A005-03028	6,777.6	4,075 ACFT Hours at Install	96.5%	$33,079
PUMP MODULE ASSY, HYDRAULIC	70652-02300-050	K8935ABR	1,821.3	6,842 ACFT Hours at Install	25.9%	$29,750
GENERATOR	70550-02031-111	C101104235	1,900.4	6,727 ACFT Hours at Install	27.1%	$28,292
STABILATOR AMPLIFIER (DUAL)	1011445-1	2681545	2,162.6	5,102 ACFT Hours at Install	30.8%	$26,775
ENGINE SEQUENCING UNIT	4504587	1510	7,022.6	5,099 ACFT Hours at Install	100.0%	$22,525
PANEL INDICATOR (PDU)	100-601581-000	10362506	1,923.6	5,099 ACFT Hours at Install	27.4%	$19,524
DAMPER ASSY, M/R	70106-08100-046	WG1379100008	361.5	6,661 ACFT Hours at Install	5.1%	$18,371
DAMPER ASSY, M/R	70106-08100-046	R10601119	2,379.5	6,661 ACFT Hours at Install	33.9%	$18,371
DAMPER ASSY, M/R	70106-08100-046	WG1350500776	361.5	6,661 ACFT Hours at Install	5.1%	$18,371
DAMPER ASSY, M/R	70106-08100-046	A10606220	7,181.6	5,099 ACFT Hours at Install	102.3%	$10,806
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	D32450844	612.6	3,460 Parent Component Hours at Install	8.7%	$16,996
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	B32426352	760.6	0 Parent Component Hours at Install	10.8%	$16,996
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	LK7511	1,923.6	695 Parent Component Hours at Install	27.4%	$16,996
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	B32419347	4,383.6	595 Parent Component Hours at Install	62.4%	$16,996
ACCUMULATOR	70651-03201-105	B40106593	1,228.6	5,794 ACFT Hours at Install	17.5%	$15,725
INDICATOR, HEIGHT	A3060591	326BB	1,712.6	5,310 ACFT Hours at Install	24.4%	$15,300
DRIVESHAFT ASSY ENGINE	70361-08014-041	C84512514	1,228.6	5,794 ACFT Hours at Install	17.5%	$14,684
DRIVESHAFT ASSY ENGINE	70361-08014-041	C84512532	1,228.6	5,794 ACFT Hours at Install	17.5%	$14,684
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	A27206004	6,358.6	5,794 ACFT Hours at Install	90.5%	$13,494
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	A272-06566	7,022.6	0 ACFT Hours at Install	100.0%	$13,494
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	A272-06569	7,022.6	0 ACFT Hours at Install	100.0%	$13,494
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	B849-11848	1,876.6	4,852 Parent Component Hours at Install	26.7%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	B84900091	3,226.6	2,771 Parent Component Hours at Install	45.9%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	B849-20425	142.2	0 Parent Component Hours at Install	2.0%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	A849-06349	1,586.8	993 Parent Component Hours at Install	22.6%	$12,591
RECEIVER-TRANSMITTER, RADAR ALT	SM-C-967292	736A	1,369.6	5,794 ACFT Hours at Install	19.5%	$12,015
AFT WALKING BEAM	70400-08104-048	E34611042	1,589.6	6,262 ACFT Hours at Install	22.6%	$11,513
PANEL INDICATOR (PDU)	70450-01916-104	195	3,739.6	6,262 ACFT Hours at Install	53.3%	$9,860
SHOCK ABSORBER (TAIL)	70250-13101-044	BMC156	2,988.6	5,897 ACFT Hours at Install	42.6%	$9,779
SHAFT ASSY, T/R DRV SEC 7	70361-06002-047	A274-02382	7,022.6	0 ACFT Hours at Install	100.0%	$8,003
AFT BELLCRANK SPT ASSY	70400-08163-043	36507933	760.6	6,262 ACFT Hours at Install	10.8%	$7,948
TAIL PYLON FITTING	70209-06051-043	B496-00873	7,022.6	0 ACFT Hours at Install	100.0%	$7,930
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	D32507043	2,137.6	1,935 Parent Component Hours at Install	30.4%	$7,646
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	B32528899	760.6	0 Parent Component Hours at Install	10.8%	$7,646
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	B32526410	1,806.6	695 Parent Component Hours at Install	25.7%	$7,646
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	B32526886	2,217.6	595 Parent Component Hours at Install	31.6%	$7,646
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	B50400150	4,011.6	3,460 Parent Component Hours at Install	57.1%	$6,375
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	C50420847	760.6	0 Parent Component Hours at Install	10.8%	$6,375
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	C50410977	1,923.6	0 Parent Component Hours at Install	27.4%	$6,375
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	C50415265	1,228.6	595 Parent Component Hours at Install	17.5%	$6,375
SHAFT ASSY, T/R DRV SEC 2	70361-03009-047	WG 30037-00070	3,568.6	3,454 ACFT Hours at Install	50.8%	$6,105
AFT TIE ROD ASSY	70400-08111-043	E392-00669	7,022.6	0 ACFT Hours at Install	100.0%	$5,173
SHAFT ASSY, T/R DRV SEC 6	70361-05002-045	A273-01869	7,022.6	0 ACFT Hours at Install	100.0%	$5,088
VALVE, SOLENIOD	70306-02107-104	P-1154	3,966.6	5,099 ACFT Hours at Install	56.5%	$5,000
VALVE, SOLENIOD	70306-02107-104	9602	4,022.6	5,099 ACFT Hours at Install	57.3%	$5,000
SHAFT ASSY, T/R DRV SEC 1	70361-03001-045	33149-46	5,234.6	1,788 ACFT Hours at Install	74.5%	$4,671
BLADE PIN, SOLID	70103-08108-041	B941-01115	4,177.6	4,777 ACFT Hours at Install	59.5%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-02857	3,865.6	3,157 ACFT Hours at Install	55.0%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-01032	4,177.6	4,777 ACFT Hours at Install	59.5%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-04945	3,218.6	5,221 ACFT Hours at Install	45.8%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-02859	3,865.6	3,157 ACFT Hours at Install	55.0%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-02873	3,865.6	3,157 ACFT Hours at Install	55.0%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-05002	3,218.6	5,221 ACFT Hours at Install	45.8%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-00877	4,177.6	4,777 ACFT Hours at Install	59.5%	$4,165
RIGHT TIE ROD ASSY	70400-08165-043	B366-01135	7,022.6	0 ACFT Hours at Install	100.0%	$3,996
BRNG T/R PITCH CHG SHFT PARENT: T/R PITCH CHANGE SHAFT	SB1162-102	C84017459	3,595.5	0 Parent Component Hours at Install	51.2%	$3,484
CTG AIRCRAFT FIRE EXT	897899-1	122503	404.3	6,618 ACFT Hours at Install	5.8%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	015703	404.3	6,618 ACFT Hours at Install	5.8%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	015680	404.3	6,618 ACFT Hours at Install	5.8%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	015693	404.3	6,618 ACFT Hours at Install	5.8%	$2,398
SERVO BEAM FITTING	70209-22103-054	B33802978	7,022.6	6,262 ACFT Hours at Install	100.0%	$2,023
SERVO BEAM FITTING	70209-22103-056	D33800474	7,022.6	6,262 ACFT Hours at Install	100.0%	$1,970
SERVO BEAM FITTING	70209-22103-050	F33800016	7,022.6	6,262 ACFT Hours at Install	100.0%	$1,938
SERVO BEAM FITTING	70209-22103-052	F33800039	7,022.6	6,262 ACFT Hours at Install	100.0%	$1,814
AFT TIE ROD SUPT FITTING	70400-08112-046	E391-00134	7,022.6	0 ACFT Hours at Install	100.0%	$974

Component	PN	Serial	TSN	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
TIE ROD COMPRESSOR PARENT: COLD SECTION MODULE	5043T04P02	GATJ00GF	1,505.0	15.0%	85.0%	8,495	10,000	$29,432
RING, SPACER COMPRESSOR PARENT: COLD SECTION MODULE	5066T79P01	PAMHJ055	1,573.0	15.7%	84.3%	8,427	10,000	$9,499
COMPRESSOR REAR SHAFT PARENT: COLD SECTION MODULE	6080T48P01	FIAALJP4	3,364.0	39.6%	60.4%	5,136	8,500	$45,680
GAS GEN TURBINE SHAFT PARENT: COLD SECTION MODULE	6068T44P02	NCE902AF	2,191.0	27.4%	72.6%	5,809	8,000	$66,291
STAGE 1 BLISK PARENT: COLD SECTION MODULE	6043T56G02	GLHW0DR3	373.0	5.3%	94.7%	6,627	7,000	$87,339
STAGE 2 BLISK PARENT: COLD SECTION MODULE	6032T27P08	GLHW09MP	373.0	5.3%	94.7%	6,627	7,000	$63,557
STAGE 3 & 4 BLISK PARENT: COLD SECTION MODULE	6038T08P04	GLHW0D62	373.0	5.3%	94.7%	6,627	7,000	$84,973
STAGE 5 BLISK PARENT: COLD SECTION MODULE	6038T09P04	GLHW09AR	373.0	5.3%	94.7%	6,627	7,000	$45,578
STAGE 1 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T06P03	GATHMH2K	1,573.0	22.5%	77.5%	5,427	7,000	$83,290
STAGE 2 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T12P03	GATHLW66	2,299.0	32.8%	67.2%	4,701	7,000	$68,258
STG 1 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T09P01	GFF5F09L	1,642.0	23.5%	76.5%	5,358	7,000	$66,847
COMPRESSOR IMPELLER PARENT: COLD SECTION MODULE	6055T59P03	GLHTMN27	1,177.0	23.5%	76.5%	3,823	5,000	$93,594
STAGE 3 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T32P02	GATHTE0J	1,413.0	28.3%	71.7%	3,587	5,000	$65,492
STAGE 4 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T34P06	GATHTCKG	1,413.0	28.3%	71.7%	3,587	5,000	$86,125
POWER TURBINE SHAFT PARENT: POWER TURBINE MODULE	5125T92G01	GATHTD15	1,549.0	31.0%	69.0%	3,451	5,000	$155,794
STG 2 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	4106T80P01	GFF5GCK9	1,883.0	37.7%	62.3%	3,117	5,000	$48,265
STG 2 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T07P06	GFF5E3N2	1,463.0	34.8%	65.2%	2,737	4,200	$42,148
STG 1 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T08P03	GFF5EN90	1,306.0	34.4%	65.6%	2,494	3,800	$52,695

Component	PN	Serial	TSN	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
STAGE 1 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T06P03	GATJ5AN7	888.0	12.7%	87.3%	6,112	7,000	$93,803
STAGE 2 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T12P03	GATHKMH1	1,847.0	26.4%	73.6%	5,153	7,000	$74,821
STG 1 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T09P01	GFF5FRMW	2,374.0	33.9%	66.1%	4,626	7,000	$57,715
STAGE 3 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T32P02	6038T32P02	1,331.0	26.6%	73.4%	3,669	5,000	$66,989
STAGE 4 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T34P06	GATHMAMJ	1,331.0	26.6%	73.4%	3,669	5,000	$88,094
POWER TURBINE SHAFT PARENT: POWER TURBINE MODULE	5125T92G01	GATH67PP	2,984.0	59.7%	40.3%	2,016	5,000	$91,012
STG 2 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	4106T80P01	GFF5FTAR	2,374.0	47.5%	52.5%	2,626	5,000	$40,662
STG 2 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T07P06	GFF5GPKA	1,617.0	38.5%	61.5%	2,583	4,200	$39,776
STG 1 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T08P03	GFF5FNAJ	2,374.0	62.5%	37.5%	1,426	3,800	$30,130

Component	PN	Serial	TSN	TSN % of Engine	Value remaining
COLD SECTION MODULE	6071T25G01	GEC001333	3,424.0	119.8%	$248,174
COMBUSTION LINER	6080T13G08	GGM9H8TW	758.0	26.5%	$282,885
MTCHD ROTOR/STATOR ASSY	3048T90G01	MRSGJ065	1,145.0	40.1%	$265,200
FUEL CONTROL (HMU)	4046T52G42	14704875	2,481.0	86.8%	$263,080
ACCESSORY MODULE	6071T27G01	GED613012	1,266.0	44.3%	$256,588
STAGE 1 NOZZLE ASSY	6071T04G32	MDK3GCAR	943.0	33.0%	$137,275
POWER TURBINE MODULE	6071T26G02	GEL903329	1,413.0	49.5%	$114,750
PARTICLE SEPARATOR BLOWER	6034T62P18	K0487	2,662.0	93.2%	$67,076
ELECTRICAL CONTROL UNIT	4082T99G17	LMDU4333	2,999.0	105.0%	$21,000
VALVE ASSEMBLY,ANTI- ICING,JET ENGINE	4046T28G14	COMH7139	3,795.0	132.8%	$14,425
NO 1 BALL BEARING PARENT: OUTPUT SHAFT ASSY	6064T34P02	FCAS9959	2,625.0	91.9%	$20,903
HISTORY RECORDER	4046T26G05	LMDH4008	373.0	13.1%	$20,025
O/S DRAIN VALVE ASSY	3046T17G02	APM457JK	1,494.0	52.3%	$19,437
COOLER, OIL	4046T25G06	UDDK3631	1,494.0	52.3%	$12,563
NO 2 ROLLER BEARING PARENT: OUTPUT SHAFT ASSY	5121T46P01	TMKAFRPM	2,625.0	91.9%	$4,127

Component	PN	Serial	TSN	TSN % of Engine	Value remaining
COLD SECTION MODULE	6071T25G01	GEC903546	890.0	78.4%	$421,896
COMBUSTION LINER	6080T13G08	GGM9CLEE	1,637.0	144.2%	$166,403
MTCHD ROTOR/STATOR ASSY	3048T90G01	MRSCY328	2,374.0	209.2%	$156,000
ACCESSORY MODULE	6071T27G01	GED903475	1,951.0	171.9%	$150,934
POWER TURBINE MODULE	6071T26G02	GEL991553	1,331.0	117.3%	$67,500
FUEL CONTROL (HMU)	4046T52G37	16840734	4,611.0	406.3%	$42,500
PARTICLE SEPARATOR BLOWER	6034T62P18	K5282	2,246.0	197.9%	$39,456
NOZZLE,TURBINE,AIRCRAFT GAS TURBINE EN	6071T04G29	MDK2R104	2,474.0	218.0%	$24,400
ELECTRICAL CONTROL UNIT	4082T99G17	EMDU3157	3,437.0	302.8%	$21,000
ANTI-ICE VALVE	5066T38G07	GRTR1869	1,818.0	160.2%	$15,256
HISTORY RECORDER	4046T26G05	LMDH6096	609.0	53.7%	$20,025
O/S DRAIN VALVE ASSY	3046T17G02	APM465JL	1,951.0	171.9%	$11,434
COOLER, OIL	4046T25G06	UDDK4760	1,951.0	171.9%	$7,390

Insp #	Item	Type	Frequency	Completed	Next due	Life used %	Life remaining %	Status	Price	Value remaining
A160	90 DAY CORROSION INSPECTION	Calendar	90 D	03 Dec 2025	03 Mar 2026	236.7%	-136.7%	DUE	$10,152	$0
A533	PITOT STATIC SYSTEM INSPECTION	Calendar	12 M	06 Feb 2025	06 Feb 2026	140.5%	-40.5%	DUE	$5,147	$0
A501	MAIN ROTOR BLADE SPAR PRESSURE CHECK	Calendar	6 M	03 Dec 2025	03 Jun 2026	117.0%	-17.0%	DUE	$1,897	$0
A399	PMI DUE	Calendar	48 M	01 Jun 2022	01 Jun 2026	102.3%	-2.3%	DUE	$80,000	$0
A673	FUEL CELL CORROSION INSPECTION	Calendar	48 M	07 Jun 2022	07 Jun 2026	101.8%	-1.8%	DUE	$20,000	$0
A665	REPLACE FUEL CELL O-RING SEAL PN MS29513-215	Calendar	48 M	07 Jun 2022	07 Jun 2026	101.8%	-1.8%	DUE	$20,000	$0
A670	CABIN TUB INSPECTION	Calendar	48 M	23 Jun 2022	23 Jun 2026	100.8%	-0.8%	DUE	$20,000	$0
A675	FLIGHT CONTROL RODS INSPECTION	Calendar	48 M	30 Jun 2022	30 Jun 2026	100.3%	-0.3%	DUE	$20,000	$0
A625	REPLACEMENT OF SLAB BATTERY (SLAB)	Calendar	60 M	01 Sep 2021	01 Sep 2026	96.8%	3.2%	NEAR DUE	$5,000	$160
A648	REPLACE T/R SPRING CAPSULE ASSY	Calendar	180 M	22 Oct 2012	22 Oct 2027	91.3%	8.7%	NEAR DUE	$20,000	$1,740
A400	PMI-1	Hours	960 H	6262.0	7141.1	87.7%	12.3%	NEAR DUE	$125,000	$15,375
A320	ENGINE INSPECTION CLEANING	Hours	480 H	6661.1	7141.1	75.3%	24.7%	NEAR DUE	$2,240	$553
A305	LUBRICATE ROTARY INPUTS	Hours	480 H	6661.1	7141.1	75.3%	24.7%	NEAR DUE	$10,037	$2,479
A470	REPLACE NUMBER TWO CROSSFEED VALVE	Hours	1500 H	6182.2	7677.4	56.3%	43.7%	OK	$10,000	$4,370
A472	REPLACE T/R SHAFT SUPPORT BEARINGS (CENTER)	Hours	2880 H	5613.9	8493.9	48.9%	51.1%	OK	$10,000	$5,110
A473	REPLACE T/R SHAFT SUPPORT BEARINGS (AFT)	Hours	2880 H	5613.9	8493.9	48.9%	51.1%	OK	$10,000	$5,110
A471	REPLACE T/R SHAFT SUPPORT BEARINGS (FWD)	Hours	2880 H	5613.9	8493.9	48.9%	51.1%	OK	$10,000	$5,110
A477	REPLACEMENT OF STABILATOR ACTUATOR BOLTS	Hours	5000 H	5099.1	10099.1	38.5%	61.5%	OK	$10,000	$6,150
A401	PMI-2	Hours	960 H	6661.1	7621.1	37.7%	62.3%	OK	$230,000	$143,290
A110	PMS 40 HOUR INSPECTION	Hours	40 H	7013.3	7051.3	28.3%	71.7%	OK	$6,325	$4,535
A485	REPLACE BELLCRANK BOLT 70400-08159-105,106,1 07,108	Hours	10000 H	5099.1	15099.1	19.2%	80.8%	OK	$10,000	$8,080
A480	REPLACE PIVOT BOLT 70400-08159-101,102,103,1 04	Hours	10000 H	5099.1	15099.1	19.2%	80.8%	OK	$10,000	$8,080
A296	INSPECT STABILATOR ATTACH FITTINGS	Hours	360 H	6972.0	7332.0	14.1%	85.9%	OK	$4,223	$3,628
A210	120 HOUR INSPECTION REQUIREMENTS	Hours	120 H	7013.3	7133.2	7.8%	92.2%	OK	$12,766	$11,770

This aircraft has 3 open safety items requiring immediate attention before flight: restricted from known icing conditions due to main rotor blade deice failure, restricted from IMC/overwater operations, and restricted from CEFS use due to a capped fuel line.

Fault 2025-02-13 7,013.3 hrs high

Aircraft restricted from known icing conditions due to main rotor blade deice failure, limiting operational envelope.

RESTRICTED FROM KNOWN ICING CONDITIONS DUE TO MR BLADE DEICE F AIL | status: open | recorded 2025-02-13 @ 7013.3h
Fault 2020-05-06 6,264.6 hrs high

Aircraft restricted from CEFS use due to capped CEFS line at station 379, eliminating external fuel capability.

AIRCRAFT RESTRICTED FROM CEFS USE DUE TO CAPPED CEFS LINE AT S TA. 379 R/BL 34.5 | status: open | recorded 2020-05-06 @ 6264.6h
Fault 2021-04-12 6,429.9 hrs high

ERFS auxiliary fuel control panel not installed, restricting aircraft from ERFS/ESSS mission requirements.

ERFS (ESSS) AUXILIARY FUEL CONTROL PANEL NOT INSTALLED. AIRCR AFT RESTRICTED FROM ERFS/ESSS MISSION REQUIREMENTS. | status: open | recorded 2021-04-12 @ 6429.9h
Fault 2024-09-03 6,953.2 hrs medium

Pilot side number 1 engine top RPM light burnt out, affecting crew awareness of engine overspeed conditions.

PILOT SIDE #1 ENGINE TOP RPM LIGHT BURNT OUT | status: open | recorded 2024-09-03 @ 6953.2h
Fault 2025-06-02 7,020.8 hrs high

Aircraft restricted from secure communications due to KY58 missing fills.

ACFT RESTRICTED FROM SECURE COMMS DUE TO KY58 MISSING FILLS | resolved: acft ransfered to USAR and no fills for the KY-58 availabl e at this time. when fills become available the KY-58's wi ll be tested for operational capabilities |…

The airframe has a history of significant repairs including oil cooler attachment hardware failure causing damage at station 379, multiple beam and skin repairs, and a repaired crack in the aft tail rotor pylon. These repairs are documented but indicate prior stress events.

Historical 2003-04-09 high

Oil cooler attachment hardware vibrated loose causing oil cooler mounts to break and airframe damage with a crack at station 379 BL-0 beam, repaired under MEC.

OIL COOLER ATTACHMENT HDWRE VIBRATED LOOSE & OIL COOLER MOUNTS BROKE CAUSING AIRFRAME DAMAGE WITH A CRACK @ STA 379 BL 0 BEA M. (WS7954) Original Location: A CO 8-101 AVN REGT KUWAIT | at WH6BA0 Ft. Hood, TX | on 2003-04-09
Historical 2010-03-19 high

Crack found on aft tail rotor pylon at station 677 WL 230, authorized repair applied.

LATE ENTRY: 19 JULY 2007 MEC# LE-BAL016-0029 CRACK FOUND ON AF T T/R PYLON @ STA 677 WL 230. AUTHORIZED REPAIR OF CRACK IAW DMWR 1-1520-237; REPAIR IAW WITH WP 0173, 0264 THROUGH 0266 AN | at WH6BA0 Ft. Hood, TX | on 2010-03-19
Historical 2012-02-24 medium

Left hand beaded skin panel and both 34.5 tabs installed under MEC for repair.

LT HAND BEADED SKIN PANEL AND BOTH 34.5 INSTALLED IAW MEC#1398 48 AND DMWR 1-1520-237 WP 0333 AND 0335 Original Location: ALM D/DOL FORT BRAGG,NC | at WH6BA0 Ft. Hood, TX | on 2012-02-24
Historical 2017-01-23 medium

Upper cabin plating at station 361 BL 16R WL 269 repaired under MEC.

UPPER CABIN PLATING, STA 361, BL 16R, WL 269 REPAIRED IAW MEC F319977A AT 5794.4 ACFT HRS. Original Location: LRC-A FT. HOOD , TX | at WH6BA0 Ft. Hood, TX | on 2017-01-23
Historical 2017-01-17 medium

Right hand cabin splice strap at aft cargo door opening station 379 repaired under MEC.

R/H CABIN SPLICE STRAP AT AFT CARGO DOOR OPENING STA 379 REPAI RED IAW MEC F320109 AT 5794.4 ACFT HRS. Original Location: LRC -A FT. HOOD, TX | at WH6BA0 Ft. Hood, TX | on 2017-01-17
Historical 2021-05-05 medium

Left hand main landing gear drag beam fitting lug bores repaired under MEC.

L/H MAIN LANDING GEAR DRAG BEAM FITTIND P/N 70219-02526-044 LU G BORES REPAIRED IAW MEC F381135A BY LRC-A FT HOOD, TX AT 6433 .9 ACFT HRS. | at WH6BA0 Ft. Hood, TX | on 2021-05-05
Historical 2020-05-05 medium

Number one side upper door track repaired for damage under MEC.

MEC F367964C Number One Side Crack On Upper Door Track Complie d With At 6264.6 ACFT HRS. | at W0H95J Ft. Hood, TX | on 2020-05-05
Fault 2025-05-16 7,020.8 hrs high

Yellow main rotor blade tip replaced due to damage in airframe, resolved with new tip cap installed.

YELLOW M/R BLADE TIP REQUIRES REPLACEMENT DUE TO CRACK IN AIRF RAME | resolved: REPLACED S/N:B84914244 WITH S/N: A84906349 | status: closed | recorded 2025-05-16 @ 7020.8h | closed 2025-05-20 @ 7020.8h

This aircraft has 4 open safety messages requiring compliance: H-60-26-SOF-02 (non-conforming primary main rotor servos), H-60-26-SOF-01 (non-conforming primary main rotor servos), H-60-25-ASAM-11 (main landing gear axle radial movement inspection), and H-60-25-ASAM-10 (pilot and copilot seat harness assembly replacement). Two seat harness assemblies were replaced in July 2025 but the ASAM remains open. Additionally, H-60-22-AMAM-08 (NAS1304 bolt inspection) and H-60-19-AMAM-03 (main rotor deice/chip detector harness chaffing) were not complied with prior to BEST induction.

Fault 2025-12-11 361.5 hrs high

H-60-26-SOF-02 non-conforming primary main rotor servos not complied with, open at 361.5 aircraft hours.

SAFETY MESSAGE NUMBER: H-60-26-SOF-02 DESCRIPTION: COMPLY WITH H-60-26-SOF-02, NON-CONFORMING PRIMARY MAIN ROTOR SERVOS, PRI OR TO NEXT FLIGHT, BUT NOT TO EXCEED 17 DEC 2025. FOR SERVO, P RIMARY MAIN ROTOR CAGE: 82106 PN: 274000-1035 NSN:…
Fault 2025-12-11 4,780.6 hrs high

H-60-26-SOF-02 non-conforming primary main rotor servos not complied with, open at 4780.6 aircraft hours.

SAFETY MESSAGE NUMBER: H-60-26-SOF-02 DESCRIPTION: COMPLY WITH H-60-26-SOF-02, NON-CONFORMING PRIMARY MAIN ROTOR SERVOS, PRI OR TO NEXT FLIGHT, BUT NOT TO EXCEED 17 DEC 2025. FOR SERVO, P RIMARY MAIN ROTOR CAGE: 78286 PN: 70410-02820-055…
Fault 2025-12-01 361.5 hrs high

H-60-26-SOF-01 non-conforming primary main rotor servos not complied with, open at 361.5 aircraft hours.

SAFETY MESSAGE NUMBER: H-60-26-SOF-01 DESCRIPTION: COMPLY WITH H-60-26-SOF-01, NON-CONFORMING PRIMARY MAIN ROTOR SERVOS, PRI OR TO NEXT FLIGHT, BUT NOT TO EXCEED 7 DEC 2025. FOR SERVO, PR IMARY MAIN ROTOR CAGE: 82106 PN: 274000-1035 NSN:…
Fault 2025-12-01 4,780.6 hrs high

H-60-26-SOF-01 non-conforming primary main rotor servos not complied with, open at 4780.6 aircraft hours.

SAFETY MESSAGE NUMBER: H-60-26-SOF-01 DESCRIPTION: COMPLY WITH H-60-26-SOF-01, NON-CONFORMING PRIMARY MAIN ROTOR SERVOS, PRI OR TO NEXT FLIGHT, BUT NOT TO EXCEED 7 DEC 2025. FOR SERVO, PR IMARY MAIN ROTOR CAGE: 78286 PN: 70410-02820-055…
Fault 2025-08-15 7,022.6 hrs high

H-60-25-ASAM-11 main landing gear axle radial movement inspection due at 7141.1 aircraft hours at next scheduled PMI.

COMPLY WITH H-60-25-ASAM-11, MAIN LANDING GEAR AXLE RADIAL MOV EMENT INSEPECITON, AT 7141.1 ACFT HOURS AT THE NEXT SCHEDULED PREVENTIVE MAINTENANCE INSPECTION (PMI) BUT NOT TO EXCEED 14 A UG 2027. | status: open | recorded 2025-08-15 @…
Fault 2025-07-08 7,022.6 hrs high

H-60-25-ASAM-10 pilot and copilot seat harness assembly replacement due 22 July 2025, still open.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-10 DESCRIPTION: PILOT AND COPILOT SEAT HARNESS ASSEMBLY REPLACEMENT. IS DUE: 22 JUL 202 5 CALENDAR | resolved: Inspected Pilot and Co-pilot seats; both seats are config 2. | status: closed | recorded…
Historical 2026-05-12 high

H-60-19-AMAM-03 main rotor deice/chip detector harness chaffing and re-routing not complied with prior to BEST induction.

H-60-19-AMAM-03, M/R DE-ICE/CHIP DETECTOR HARNESS CHAFFING AND RE-ROUTING, NOT COMPLIED WITH | at W6TU14 | on 2026-05-12
Historical 2026-05-12 high

H-60-25-ASAM-11 main landing gear axle radial movement inspection not complied with prior to BEST induction.

H-25-ASAM-11, MAIN LANDING GEAR AXLE RADIAL MOVEMENT INSPECTIO N, NOT COMPLIED WITH | at W6TU14 | on 2026-05-12
Historical 2026-05-12 high

H-60-22-AMAM-08 NAS1304 bolt inspection not complied with prior to BEST induction, due by 14 July 2026.

H-60-22-AMAM-08, NAS1304 BOLT INPSECTION, NOT COMPLIED WITH | at W6TU14 | on 2026-05-12
Historical 2026-05-12 medium

GEN-26-AMAM-01 ADS-B out inspection LCF update not complied with prior to BEST induction.

GEN-26-AMAM-01, ADS-B OUT INSPECTION LCF UPDATE, NOT COMLIED W ITH | at W6TU14 | on 2026-05-12
Historical 2026-05-12 medium

H-60-17-AMAM-11 torque the inner and outer duplex bearing retaining ring bolts not complied with prior to BEST induction.

H-60-17-AMAM-11, TORQU THE INNER AND OUTER DUPLEX BEARING RETA INING RING BOLTS, NOT COMPLIED WITH | at W6TU14 | on 2026-05-12
Fault 2025-07-10 7,022.6 hrs high

H-60-25-ASAM-10 pilot seat harness assembly replaced no later than 31 January 2026, resolved with compliance.

PILOT SEAT HARNESS ASSEMBLY REQUIRES REPLACEMENT PER H-60-25-A SAM-10 NO LATER THAN 31 JAN 26 | resolved: COMPLIED WITH H-60-25-ASAM-10 | status: closed | recorded 2025-07-10 @ 7022.6h | closed 2025-08-28 @ 7022.6h
Fault 2025-07-10 7,022.6 hrs high

H-60-25-ASAM-10 copilot seat harness assembly replaced no later than 31 January 2026, resolved with compliance.

COPILOT SEAT HARNESS ASSEMBLY REQUIRES REPLACEMENT PER H-60-25 -ASAM-10 NO LATER THAN 31 JAN 26 | resolved: COMPLIED WITH H-60-25-ASAM-10 | status: closed | recorded 2025-07-10 @ 7022.6h | closed 2025-08-28 @ 7022.6h
Fault 2025-06-12 7,022.6 hrs medium

H-60-25-ASAM-06 automatic dependent surveillance-broadcast (ADS-B out) inspection by 28 May 2025, resolved with compliance.

COMPLY WITH H-60-25-ASAM-06, AUTOMATIC DEPENDENT SURVEILLANCE- BROADCAST (OUT) (ADS-B(OUT)) INSPECTION BY 28 MAY 25. | resolved: ADS-B check complete. | status: closed | recorded 2025-06-12 @ 7022.6h | closed 2025-06-16 @ 7022.6h

The aircraft was inducted into the BEST program on 27 April 2026 at 7022.6 hours with no scheduled maintenance performed after that date. The main transmission filter impending bypass button has extended multiple times (most recently at 5506.7 hours), indicating filter loading and potential wear. Engines and APU have moderate time, and the receiving unit must torque duplex bearing retaining ring bolts at next PMI.

Fault 2026-04-27 7,022.6 hrs high

Aircraft inducted into BEST program on 27 April 2026 at 7022.6 hours, no scheduled maintenance performed after this date.

Aircraft inducted into the BEST Program on 27-APR-2026. No DA 2408-18 scheduled maintenance performed after this date. | status: open | recorded 2026-04-27 @ 7022.6h
Historical 2015-01-06 high

Main transmission filter impending bypass button extended at 5456.7 aircraft hours, oil inspection OK, indicating filter loading.

MAIN TRANSMISSION FILTER IMPENDING BYPASS BUTTON EXTENDED THIS DATE AT 5456.7 AIRCRAFT HOURS. OIL INSPECTION OK. Original L ocation: D CO 2-227 AVN REGT FORT HOOD TX, 76544 | at WH6BA0 Ft. Hood, TX | on 2015-01-06
Historical 2015-03-30 high

Main transmission oil filter bowl impending bypass button extended at 5506.7 aircraft hours, oil inspection OK, filters replaced.

MAIN TRANSMISSION OIL FILTER BOWL IMPENDING BYPASS BUTTON EXTE NDED AT 5506.7 ACFT HOURS. OIL INSPECTION OK. FILTERS REPLAC ED AND BUTTON RESET. Original Location: D CO 2-227 AVN REGT FO | at WH6BA0 Ft. Hood, TX | on 2015-03-30
Fault 2025-05-14 7,020.8 hrs medium

At next PMI the receiving unit will torque the inner and outer duplex bearing retaining ring bolts per work order.

At the next PMI, the receiving unit will torque the inner and outer duplex bearing retaining ring bolts IAW H-60-17-AMAM-11 (ESM2). | status: open | recorded 2025-05-14 @ 7020.8h
Fault 2024-08-02 6,935.5 hrs medium

Monitor main transmission oil pressure for the next 120 flight hours, close status symbol at 7055.5 flight hours if no issues.

Monitor Main Transmission oil pressure for the next 120 Flight Hours, close status symbol at 7055.5 Flight Hours. If low oil pressure continues replace both pressure regulating valves pe r TM 1-1520-237-23&P, WP 0095, Fault Procedure 11. …
Historical 2026-05-14 high

Engine 2 final reading at BEST induction: 364 hours, LCF1 215, LCF2 786, index 925.

ENG2 FINAL READING; SN: GEE903546, HIST REC SN: LMDH6096, LCF1 : 215, LCF2: 786, INDEX: 925, HOURS: 364 | at W6TU14 | on 2026-05-14
Historical 2026-05-14 high

Engine 1 final reading at BEST induction: 373 hours, LCF1 204, LCF2 601, index 638.

ENG1 FINAL READING; SN: GEE767118C, HIST REC SN: LMDH4008, LCF 1: 204, LCF2: 601, INDEX: 638, HOURS: 373 | at W6TU14 | on 2026-05-14
Historical 2026-05-14 high

APU final reading at BEST induction: 802.5 hours, 3875.0 events.

APU FINAL READING; SN: SPE112440, HRS: 802.5, EVENTS: 3875.0 | at W6TU14 | on 2026-05-14

Prior to delivery, the following items will be removed from the aircraft: GPS batteries, SATCOM wiring/antenna coaxes/HF switchbox, FM2 radio, ASE equipment, and cargo hook hardware. The buyer must be aware that these systems will not be functional and may require reinstallation or replacement.

Fault 2026-05-04 7,022.6 hrs high

Notice to buyer: prior to delivery the following items will be removed from the aircraft per seller direction.

REMARK/NOTICE TO BUYER: Prior to delivery of the aircraft to the buyer the following items will be removed from the aircraf t at the direction of the US Government; to include but not li mited to: CMWS JUNCTION BOX; SA-26669/ALE-47 (V)…
Fault 2026-05-18 7,022.6 hrs high

Notice to buyer: prior to delivery the following items will be removed from the aircraft at direction of U.S. government.

“REMARK/NOTICE TO BUYER: Prior to delivery of the aircraft to the buyer the following items will be removed from the aircra ft at the direction of the US Government; to include but not l imited to: CMWS JUNCTION BOX; SA-26669/ALE-47 (V)…
Fault 2026-05-12 7,022.6 hrs Entry error high

Entry error notice to buyer: the following items have been removed from the aircraft at direction of U.S. government.

[ENTRY ERROR] NOTICE TO BUYER: The following items have been removed from th e aircraft at the direction of the U.S. Government; to include but not limited to: CMWS JUNCTION BOC; SA-26669/ALE-47 (V) CM WS SEQUENCER; SENSOR ELECTRO-OPTIC…
Fault 2025-12-03 7,022.6 hrs medium

Informational write-up: batteries removed due to aircraft being on ORF status, batteries will be reinstalled prior to transfer.

INFORMATIONAL WRITE-UP: THE FOLLOWING BATTERIES WERE REMOVED D UE TO ACFT BEING ON ORF STATUS. THE BATTERIES WILL BE REINSTAL LED IF THE AIRCRAFT RETURNS TO A FLYABLE STATUS: GMR BATTERY, KGV BATTERY, KY-58 BATTERIES (2 EA), DOPPLER GPS…
Fault 2025-09-16 7,022.6 hrs medium

GPS battery removed for storage, batteries removed per write-up dated 3 December 2025.

GPS BATTERY REMOVED FOR STORAGE | resolved: BATTERIES REMOVED; SEE WRITE UP DATED 3 DEC 2025, SEQ #1 | status: closed | recorded 2025-09-16 @ 7022.6h | closed 2025-12-03 @ 7022.6h
Fault 2025-04-24 7,017.8 hrs high

FM2 inoperative, FM2 removed for divestment in the BEST program.

FM2 INOP | resolved: FM 2 removed for divestment in the BEST program. | status: closed | recorded 2025-04-24 @ 7017.8h | closed 2026-05-14 @ 7022.6h
Fault 2025-06-10 7,020.8 hrs medium

Removal of ASE due to end of EUCOM rotation, ASE removed.

REMOVAL OF ASE DUE TO END OF EUCOM ROTATION | resolved: REMOVED ASE | status: closed | recorded 2025-06-10 @ 7020.8h | closed 2025-06-11 @ 7020.8h
Historical 2017-04-10 medium

Single SATCOM wiring, antenna coaxes and HF/SATCOM switchbox removed permanently from aircraft per AMWO.

SINGLE SATCOM (AMWO 1-1520-237-SATCOM) WIRING, ANTENNA COAXES AND HF/SATCOM SWITCHBOX REMOVED PERMANENTLY FROM ACFT DURING I NSTALLATION OF AMWO 1-1520-237-ASC-15E (COMMUNICATION CENTRAL | at WH6BA0 Ft. Hood, TX | on 2017-04-10
Fault 2026-05-18 7,022.6 hrs medium

Main rotor blade A00716223 (currently yellow) tip cap serial number verification required at next removal.

M/R Blade A00716223 (currently Yellow) tip cap S/N verificatio n required at next removal. | status: open | recorded 2026-05-18 @ 7022.6h

There are 2 entry errors in the maintenance records: one regarding APR-39 failure/degraded status during self-test, and one regarding logbook reconciliation. Additionally, the aircraft was administratively grounded on 17 June 2020 due to a missing flashlight on a different aircraft, later cleared. These data quality issues should be reviewed for accuracy.

Fault 2025-05-28 7,020.8 hrs Entry error high

Entry error: APR-39 failure and APR-39 degraded populated during self-test, restricted for known hostile conditions due to entry error.

[ENTRY ERROR] APR-39 FAILURE AND APR-39 DEGRADED POPULATED DURING SELF TEST RESTRICTED FOR KNOWN HOSTILE CONDITIONS DUE TO APR-39 TEST FA ILURE | resolved: CLOSED IN ERROR BY Mcdougald, Zachary CW3 Entry mad e in error. | status: closed…
Fault 2025-06-24 7,022.6 hrs Entry error medium

Entry error: inspection A801 logbook reconciliation for helicopter utility UH-60L was entered in error.

[ENTRY ERROR] INSP A801 LOGBOOK RECON FOR HELICPTR UTIL UH-60L CAGE: 78286 P N: UH-60L NSN: 1520012984532 SN: 9326510 IS DUE. STATUS WILL U PGRADE TO X ON: 25 JUN 2025 | resolved: CLOSED IN ERROR BY Loya, Joseph CIV Entry made in e…
Historical 2020-06-18 medium

Aircraft 9326510 was administratively grounded on 17 June 2020 due to personal flashlight unaccounted for on different aircraft 9326525, flashlight later found and aircraft released.

17 JUNE 2020 ACFT 9326510 WAS ADMIN GROUNDED DUE TO A PERSONAL FLASHLIGHT UNACCOUNTED FOR ON ACFT 9326525. FLASHLIGHT WAS SE EN ONCE IN THE CABIN OF 525 AND LAST SEEN ON THE GROUND NEXT T | at WH6BA0 Ft. Hood, TX | on 2020-06-18
Historical 2007-12-05 Entry error low

Entry error: entry 1 dated 4 November 2007 entered in error, corrected in records.

[ENTRY ERROR] ENTRY 1 DATED 4 NOV O7 ENTERED IN ERROR Original Location: D C O 4-3 AVN BIAP, IRAQ | at WH6BA0 Ft. Hood, TX | on 2007-12-05

Records Search

Risk Analysis

Custom Analysis
