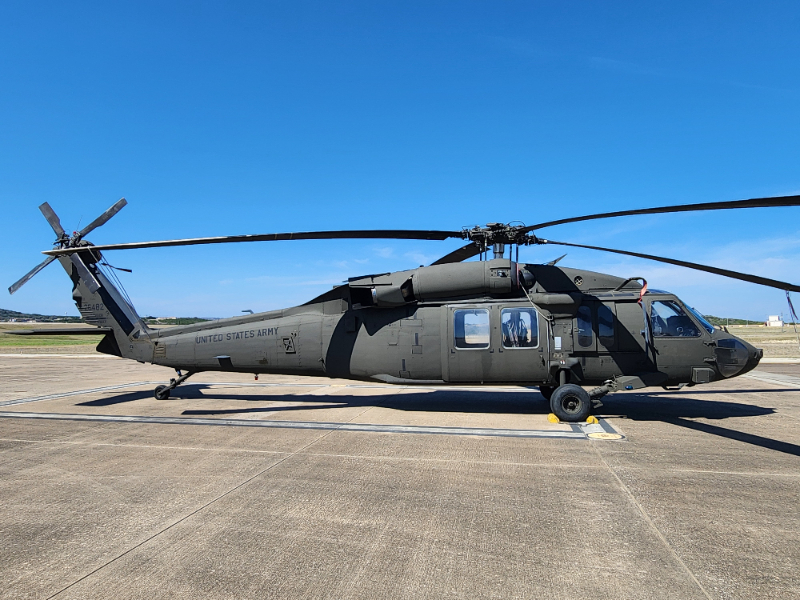

BladeStack UH-60L Demo

Component	PN	Serial	TSN	Hours at install	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
LATERAL SWASHPLATE LINK	70400-08151-061	1515207301	451.8	7,532 ACFT Hours at Install	2.4%	97.6%	18,548	19,000	$6,731
FORWARD BELLCRANK	70400-08101-046	J355-00638	7,983.6	2,355 ACFT Hours at Install	42.0%	58.0%	11,016	19,000	$5,934
STATIONARY SWASHPLATE PARENT: SWASHPLATE	70104-08010-054	F22202161	451.8	0 Parent Component Hours at Install	2.4%	97.6%	18,548	19,000	$63,454
MAIN ROTOR SHAFT PARENT: MAIN TRANSMISSION MODULE	70351-38131-042	C32700227	931.6	0 Parent Component Hours at Install	5.2%	94.8%	17,068	18,000	$24,194
MAIN ROTOR SHAFT EXTENDER	70351-08186-043	C28600946	5,328.6	6,354 ACFT Hours at Install	33.3%	66.7%	10,671	16,000	$30,199
SERVO ASSY, TAIL ROTOR	70410-06520-046	C30004004	3,511.6	6,714 ACFT Hours at Install	23.4%	76.6%	11,488	15,000	$74,675
LEFT TIE ROD ASSY	70400-08115-046	34402166	2,300.6	5,683 ACFT Hours at Install	16.4%	83.6%	11,699	14,000	$15,042
BIFILAR, M/R ROTOR ASSY	70107-08400-046	B32700033A	7,830.6	4,996 ACFT Hours at Install	60.2%	39.8%	5,169	13,000	$26,702
SAS ACTUATOR	70410-02500-049	C112-53469	2,488.8	7,532 ACFT Hours at Install	19.1%	80.9%	10,511	13,000	$15,282
SAS ACTUATOR	70410-02500-049	B112-10382	6,592.6	1,891 ACFT Hours at Install	50.7%	49.3%	6,407	13,000	$9,315
SAS ACTUATOR	70410-02500-049	C112-05916	4,182.6	6,112 ACFT Hours at Install	32.2%	67.8%	8,817	13,000	$12,819
AFT BELLCRANK	70400-08102-045	34504444	451.8	7,532 ACFT Hours at Install	3.5%	96.5%	12,548	13,000	$10,135
O/B RETENTION PLATE (T/R)	70102-11101-042	A25700539	3,840.6	6,957 ACFT Hours at Install	32.0%	68.0%	8,159	12,000	$9,253
PLANETARY CARRIER ASSY PARENT: MAIN TRANSMISSION MODULE	70351-38175-042	E31817466	931.6	0 Parent Component Hours at Install	7.8%	92.2%	11,068	12,000	$41,506
I/B RETENTION PLATE T/R PARENT: TAIL ROTOR GEARBOX ASSY	70358-06612-042	FM1689	5,574.6	4,587 Parent Component Hours at Install	46.5%	53.5%	6,425	12,000	$9,952
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	F47906534	1,952.6	0 Parent Component Hours at Install	16.3%	83.7%	10,047	12,000	$1,148
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	F47905629	2,635.6	0 Parent Component Hours at Install	22.0%	78.0%	9,364	12,000	$1,070
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	389133779	1,629.6	2,649 Parent Component Hours at Install	13.6%	86.4%	10,370	12,000	$1,185
NUT,PLAIN,ROUND PARENT: MAIN ROTOR SPINDLE ASSY	70102-08105-102	F479-07178	1,629.6	0 Parent Component Hours at Install	13.6%	86.4%	10,370	12,000	$1,185
LATERAL SERVO BELLCRANK	70400-08166-041	F337-01802	5,607.6	2,835 ACFT Hours at Install	51.0%	49.0%	5,392	11,000	$5,198
NUT ASSY, MAIN ROTOR	70103-08005-104	MSG192200	7,983.6	7,060 ACFT Hours at Install	88.7%	11.3%	1,016	9,000	$279
PISTON, MAIN L/GEAR STR PARENT: FWD FIXED GEAR SHOCK	70250-12067-102	P01949	8,014.6	3,759 Parent Component Hours at Install	89.1%	10.9%	985	9,000	$520
PISTON, MAIN L/GEAR STR PARENT: FWD FIXED GEAR SHOCK	70250-12067-102	BEM2348	2,297.6	0 Parent Component Hours at Install	25.5%	74.5%	6,702	9,000	$3,537
MAIN ROTOR BLADE ASSY	70150-09100-043	A00706092	4,169.0	7,892 ACFT Hours at Install	47.4%	52.6%	4,631	8,800	$86,063
MAIN ROTOR BLADE ASSY	70150-09100-043	A00717247	168.0	7,932 ACFT Hours at Install	1.9%	98.1%	8,632	8,800	$160,418
MAIN ROTOR BLADE ASSY	70150-09100-043	A007-07664	5,594.8	7,532 ACFT Hours at Install	63.6%	36.4%	3,205	8,800	$59,566
MAIN ROTOR BLADE ASSY	70150-09100-043	A00712166	2,724.8	7,973 ACFT Hours at Install	31.0%	69.0%	6,075	8,800	$112,902
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	33137501	1,629.6	323 Parent Component Hours at Install	18.7%	81.3%	7,070	8,700	$6,519
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	G24101554	2,635.6	0 Parent Component Hours at Install	30.3%	69.7%	6,064	8,700	$5,591
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	33137912	1,629.6	2,649 Parent Component Hours at Install	18.7%	81.3%	7,070	8,700	$6,519
CONTROL HORN ASSY PARENT: MAIN ROTOR SPINDLE ASSY	70102-08111-047	H241-01139	1,629.6	0 Parent Component Hours at Install	18.7%	81.3%	7,070	8,700	$6,519
HOUSING ASSY MGB PARENT: MAIN TRANSMISSION MODULE	70351-38110-045	H30701027	931.6	0 Parent Component Hours at Install	11.4%	88.6%	7,268	8,200	$90,469
MAIN ROTOR SPINDLE ASSY	70102-08200-069	D00112960	1,952.6	6,031 ACFT Hours at Install	31.5%	68.5%	4,247	6,200	$65,766
MAIN ROTOR SPINDLE ASSY	70102-08200-069	D001-13208	1,629.6	6,354 ACFT Hours at Install	26.3%	73.7%	4,570	6,200	$70,767
MAIN ROTOR SPINDLE ASSY	70102-08200-069	B001-00214	4,278.6	6,354 ACFT Hours at Install	69.0%	31.0%	1,921	6,200	$29,751
MAIN ROTOR SPINDLE ASSY	70102-08200-069	A00110071	2,635.6	5,348 ACFT Hours at Install	42.5%	57.5%	3,564	6,200	$55,191
GEARSHAFT, BEVEL PARENT: TAIL ROTOR GEARBOX ASSY	70358-06620-102	A32003830	3,384.6	4,587 Parent Component Hours at Install	58.4%	41.6%	2,415	5,800	$14,576
FWD BELLCRANK SPT ASSY	70400-08162-042	B367-09752	931.6	7,052 ACFT Hours at Install	17.3%	82.7%	4,468	5,400	$17,193
HUB, M/R ROTOR ASSY	70103-08112-047	D308-00243	1,629.6	6,354 ACFT Hours at Install	32.0%	68.0%	3,470	5,100	$125,887
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	G23720615	164.0	4,077 Parent Component Hours at Install	3.3%	96.7%	4,836	5,000	$11,095
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	G23703479	2,724.8	2,714 Parent Component Hours at Install	54.5%	45.5%	2,275	5,000	$5,220
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	G23704063	997.0	116 Parent Component Hours at Install	19.9%	80.1%	4,003	5,000	$9,184
M/R BLADE CUFF PARENT: MAIN ROTOR BLADE ASSY	70150-09109-041	E23701095	2,214.0	4,864 Parent Component Hours at Install	44.3%	55.7%	2,786	5,000	$6,392
FAN AXIAL	70361-03005-107	D51203356	458.4	7,882 ACFT Hours at Install	11.9%	88.1%	3,382	3,840	$30,382
T/R PITCH CHANGE SHAFT	70400-06100-042	B23301069	3,979.6	7,052 ACFT Hours at Install	32.3%	67.7%	1,948	2,880	$5,979

Component	PN	Serial	TSN	Hours at install	TSN % of ACFT	Value remaining
MAIN TRANSMISSION MODULE	70351-48100-042	A80301786	931.6	7,052 ACFT Hours at Install	11.7%	$1,445,000
TAIL ROTOR GEARBOX ASSY	70358-06600-046	A00600861	6,539.6	6,031 ACFT Hours at Install	81.9%	$195,500
INPUT MODULE	70351-08001-049	A264-00140	6,831.6	2,455 ACFT Hours at Install	85.6%	$192,100
INPUT MODULE	70351-08001-049	A264-07236	4,790.6	3,193 ACFT Hours at Install	60.0%	$192,100
SWASHPLATE	70104-08000-063	A10706886	451.8	7,532 ACFT Hours at Install	5.7%	$167,492
TAIL ROTOR BLADE ASSY	70101-31000-043	A00914822	556.6	7,427 ACFT Hours at Install	7.0%	$116,875
TAIL ROTOR BLADE ASSY	70101-31000-043	A009-11470	2,853.6	7,532 ACFT Hours at Install	35.7%	$116,875
FWD FIXED GEAR SHOCK	70250-12051-045	C00101703	8,014.6	4,927 ACFT Hours at Install	100.4%	$56,289
FWD FIXED GEAR SHOCK	70250-12051-045	BEM2348	2,297.6	5,686 ACFT Hours at Install	28.8%	$95,692
SERVO, PRIMARY MAIN ROTOR	274000-1031	B30310581	3,233.6	5,683 ACFT Hours at Install	40.5%	$80,580
ATTITUDE HEADING REFERENCE UNIT	765100-200	10635	1,241.3	7,730 ACFT Hours at Install	15.5%	$69,417
STABILATOR ACTUATOR	70400-06641-117	B29206000	2,925.8	7,532 ACFT Hours at Install	36.6%	$64,175
STABILATOR ACTUATOR	DL2155M31MOD1	2080	841.4	7,142 ACFT Hours at Install	10.5%	$64,175
GENERATOR	28B302-8-DM	83A0944	5,488.6	2,495 ACFT Hours at Install	68.7%	$63,822
AUTOMAT FLT CONT COMPUTER	825050-1-001	3098377	2,312.0	7,391 ACFT Hours at Install	29.0%	$46,750
SERVO, PRIMARY MAIN ROTOR	70410-02820-054	B30312275	3,970.6	5,683 ACFT Hours at Install	49.7%	$43,775
SERVO, PRIMARY MAIN ROTOR	70410-02820-054	B30300244B	5,696.6	5,683 ACFT Hours at Install	71.4%	$43,775
MIXER ASSEMBLY	70400-02300-048	TMD0484376401	1,594.6	6,389 ACFT Hours at Install	20.0%	$37,825
PUMP MODULE ASSY, HYDRAULIC	53023-06	K4298ABR	1,934.5	7,525 ACFT Hours at Install	24.2%	$36,975
ACCESSORY MODULE	70351-08080-045	A258-00485	7,768.6	2,455 ACFT Hours at Install	97.3%	$36,422
ACCESSORY MODULE	70351-08080-045	A258-02270	8,945.6	2,455 ACFT Hours at Install	112.0%	$21,425
TAIL CONE FITTING	70219-05001-042	B497-01154	7,983.6	6,714 ACFT Hours at Install	100.0%	$34,000
INTERMEDIATE GEARBOX	70357-06300-042	A00501354	6,625.6	4,996 ACFT Hours at Install	83.0%	$33,079
VALVE, SOLENIOD	3213850-3-1	18961	81.0	7,903 ACFT Hours at Install	1.0%	$32,304
VALVE, SOLENIOD	3213850-3-1	19304	2,300.6	5,683 ACFT Hours at Install	28.8%	$32,304
PUMP MODULE ASSY, HYDRAULIC	70652-02300-050	7600209R	5,488.6	2,495 ACFT Hours at Install	68.7%	$29,750
PUMP MODULE ASSY, HYDRAULIC	70652-02300-050	7600220R	5,488.6	2,495 ACFT Hours at Install	68.7%	$29,750
GENERATOR	70550-02031-111	4884	3,830.6	5,071 ACFT Hours at Install	48.0%	$28,292
ACCUMULATOR	3197170-5	5217A	52.0	7,932 ACFT Hours at Install	0.7%	$27,476
STABILATOR AMPLIFIER (DUAL)	1011445-1	2685281	2,114.5	7,666 ACFT Hours at Install	26.5%	$26,775
ENGINE SEQUENCING UNIT	4504587	346	4,951.6	4,637 ACFT Hours at Install	62.0%	$22,525
PANEL INDICATOR (PDU)	100-601581-000	1068	7,765.6	4,637 ACFT Hours at Install	97.3%	$19,524
DAMPER ASSY, M/R	70106-08100-046	WG10600476	3,178.6	5,134 ACFT Hours at Install	39.8%	$18,371
DAMPER ASSY, M/R	70106-08100-046	A10602586D	3,759.6	6,354 ACFT Hours at Install	47.1%	$18,371
DAMPER ASSY, M/R	70106-08100-046	WG10601356	5,306.6	4,996 ACFT Hours at Install	66.5%	$18,371
DAMPER ASSY, M/R	70106-08100-046	R10603333	1,948.8	7,532 ACFT Hours at Install	24.4%	$18,371
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	B32439331	1,947.6	1,021 Parent Component Hours at Install	24.4%	$16,996
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	D32452333	451.8	2,184 Parent Component Hours at Install	5.7%	$16,996
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	D32450485	931.6	3,347 Parent Component Hours at Install	11.7%	$16,996
ELASTOMERIC BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7001-048	B32441464	1,629.6	698 Parent Component Hours at Install	20.4%	$16,996
INDICATOR, HEIGHT	A3060591	680AA	781.0	7,903 ACFT Hours at Install	9.8%	$15,300
DRIVESHAFT ASSY ENGINE	70361-08014-041	C845-02365	4,275.6	4,637 ACFT Hours at Install	53.6%	$14,684
DRIVESHAFT ASSY ENGINE	70361-08014-041	C845-02397	4,275.6	4,637 ACFT Hours at Install	53.6%	$14,684
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	A272-06433	7,983.6	4,637 ACFT Hours at Install	100.0%	$13,494
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	A272-06434	7,983.6	4,637 ACFT Hours at Install	100.0%	$13,494
SHAFT ASSY, T/R SEC 3,4,5	70361-05001-051	WG3005000039	2,300.6	5,683 ACFT Hours at Install	28.8%	$13,494
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	A84902609	2,536.0	4,077 Parent Component Hours at Install	31.8%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	A84908881	2,724.8	2,714 Parent Component Hours at Install	34.1%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	B84902102	2,942.0	116 Parent Component Hours at Install	36.9%	$12,591
M/R BLADE TIP CAP PARENT: MAIN ROTOR BLADE ASSY	70150-09207-041	B84919549	112.4	5,482 Parent Component Hours at Install	1.4%	$12,591
RECEIVER-TRANSMITTER, RADAR ALT	SM-C-967292	666ANNN	517.8	7,532 ACFT Hours at Install	6.5%	$12,015
AFT WALKING BEAM	70400-08104-048	E34612376	1,060.8	7,532 ACFT Hours at Install	13.3%	$11,513
PANEL INDICATOR (PDU)	70450-01916-104	765	5,490.6	4,637 ACFT Hours at Install	68.8%	$9,860
SHOCK ABSORBER (TAIL)	70250-13101-044	BMC-1104	2,626.6	6,354 ACFT Hours at Install	32.9%	$9,779
SHAFT ASSY, T/R DRV SEC 7	70361-06002-047	A27403358	5,528.6	4,637 ACFT Hours at Install	69.2%	$8,003
AFT BELLCRANK SPT ASSY	70400-08163-043	B365-00747	7,983.6	0 ACFT Hours at Install	100.0%	$7,948
TAIL PYLON FITTING	70209-06051-043	B496-00832	7,983.6	0 ACFT Hours at Install	100.0%	$7,930
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	B325-39572	4,678.6	0 Parent Component Hours at Install	58.6%	$7,646
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	B305-35011	3,958.6	683 Parent Component Hours at Install	49.6%	$7,646
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	B325-39670	3,267.6	2,649 Parent Component Hours at Install	40.9%	$7,646
THRUST BEARING PARENT: MAIN ROTOR SPINDLE ASSY	SB7002-048	B325-34939	3,958.6	0 Parent Component Hours at Install	49.6%	$7,646
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	C50411129	1,952.6	0 Parent Component Hours at Install	24.5%	$6,375
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	C50410633	2,635.6	0 Parent Component Hours at Install	33.0%	$6,375
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	C504-15181	1,629.6	2,649 Parent Component Hours at Install	20.4%	$6,375
TIE ROD (M/R SPINDLE) PARENT: MAIN ROTOR SPINDLE ASSY	38023-10372-101	C504-08578	1,629.6	0 Parent Component Hours at Install	20.4%	$6,375
SHAFT ASSY, T/R DRV SEC 2	70361-03009-047	WG 30040-00031	2,635.6	5,348 ACFT Hours at Install	33.0%	$6,105
AFT TIE ROD ASSY	70400-08111-043	E392-00043	6,578.6	2,355 ACFT Hours at Install	82.4%	$5,173
SHAFT ASSY, T/R DRV SEC 6	70361-05002-045	A273-01836	7,983.6	4,637 ACFT Hours at Install	100.0%	$5,088
SHAFT ASSY, T/R DRV SEC 1	70361-03001-045	A271-01653	7,983.6	4,637 ACFT Hours at Install	100.0%	$4,671
BLADE PIN, SOLID	70103-08108-041	B94163199	653.4	7,330 ACFT Hours at Install	8.2%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-08178	2,620.6	6,183 ACFT Hours at Install	32.8%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-00687	4,256.6	4,637 ACFT Hours at Install	53.3%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94157363	653.4	7,330 ACFT Hours at Install	8.2%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-00570	4,256.6	6,957 ACFT Hours at Install	53.3%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94116433	653.4	7,330 ACFT Hours at Install	8.2%	$4,165
BLADE PIN, SOLID	70103-08108-041	B941-08039	3,915.6	6,183 ACFT Hours at Install	49.0%	$4,165
BLADE PIN, SOLID	70103-08108-041	B94161832	653.4	7,330 ACFT Hours at Install	8.2%	$4,165
RIGHT TIE ROD ASSY	70400-08165-043	B366-01041	7,983.6	0 ACFT Hours at Install	100.0%	$3,996
BRNG T/R PITCH CHG SHFT PARENT: T/R PITCH CHANGE SHAFT	SB1162-102	C84018149	931.6	3,048 Parent Component Hours at Install	11.7%	$3,484
CTG AIRCRAFT FIRE EXT	897899-1	013142	748.6	7,235 ACFT Hours at Install	9.4%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	067719	748.6	7,235 ACFT Hours at Install	9.4%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	067684	748.6	7,235 ACFT Hours at Install	9.4%	$2,398
CTG AIRCRAFT FIRE EXT	897899-1	013122	748.6	7,235 ACFT Hours at Install	9.4%	$2,398
SERVO BEAM FITTING	70209-22103-054	B33802200	7,983.6	0 ACFT Hours at Install	100.0%	$2,023
SERVO BEAM FITTING	70209-22103-056	B33801554	7,983.6	0 ACFT Hours at Install	100.0%	$1,970
SERVO BEAM FITTING	70209-22103-050	B33802538	7,983.6	0 ACFT Hours at Install	100.0%	$1,938
SERVO BEAM FITTING	70209-22103-052	B33802799	7,983.6	0 ACFT Hours at Install	100.0%	$1,814
AFT TIE ROD SUPT FITTING	70400-08112-046	E391-00529	6,578.6	2,355 ACFT Hours at Install	82.4%	$974

Component	PN	Serial	TSN	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
TIE ROD COMPRESSOR PARENT: COLD SECTION MODULE	5043T04P02	GATHN96C	2,894.0	28.9%	71.1%	7,106	10,000	$24,619
RING, SPACER COMPRESSOR PARENT: COLD SECTION MODULE	5066T79P01	PAMHL997	2,894.0	28.9%	71.1%	7,106	10,000	$8,010
COMPRESSOR REAR SHAFT PARENT: COLD SECTION MODULE	6080T48P01	FIAAYPYH	2,894.0	34.0%	66.0%	5,606	8,500	$49,860
GAS GEN TURBINE SHAFT PARENT: COLD SECTION MODULE	6068T44P02	GATHN7KJ	2,894.0	36.2%	63.8%	5,106	8,000	$58,268
STAGE 1 BLISK PARENT: COLD SECTION MODULE	6043T56G02	GLHTM4KK	2,894.0	41.3%	58.7%	4,106	7,000	$54,114
STAGE 2 BLISK PARENT: COLD SECTION MODULE	6032T27P08	GLHTM5RJ	2,894.0	41.3%	58.7%	4,106	7,000	$39,379
STAGE 3 & 4 BLISK PARENT: COLD SECTION MODULE	6038T08P04	GLHTM6N1	2,894.0	41.3%	58.7%	4,106	7,000	$52,648
STAGE 5 BLISK PARENT: COLD SECTION MODULE	6038T09P04	GLHTM637	2,894.0	41.3%	58.7%	4,106	7,000	$28,240
STAGE 1 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T06P03	GATHNDFN	2,894.0	41.3%	58.7%	4,106	7,000	$63,016
STAGE 2 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T12P03	GATHNE0H	2,894.0	41.3%	58.7%	4,106	7,000	$59,619
STG 1 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T09P01	GFF5EWW8	2,894.0	41.3%	58.7%	4,106	7,000	$51,227
COMPRESSOR IMPELLER PARENT: COLD SECTION MODULE	6055T59P03	GLHTM5TE	2,894.0	57.9%	42.1%	2,106	5,000	$51,559
STAGE 3 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T32P02	GATHNELE	2,894.0	57.9%	42.1%	2,106	5,000	$38,452
STAGE 4 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T34P06	GATHND33	2,894.0	57.9%	42.1%	2,106	5,000	$50,566
POWER TURBINE SHAFT PARENT: POWER TURBINE MODULE	5125T92G01	GATHNGDR	2,894.0	57.9%	42.1%	2,106	5,000	$95,075
STG 2 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	4106T80P01	GFF5EWN4	2,894.0	57.9%	42.1%	2,106	5,000	$32,610
STG 2 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T07P06	GFF5ETPR	2,894.0	68.9%	31.1%	1,306	4,200	$20,111
STG 1 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T08P03	GFF5ETWL	2,894.0	76.2%	23.8%	906	3,800	$19,143

Component	PN	Serial	TSN	Life used %	Life remaining %	Time remaining (hrs)	Life limit (hrs)	Value remaining
TIE ROD COMPRESSOR PARENT: COLD SECTION MODULE	5043T04P02	GATHJEL7	2,833.0	28.3%	71.7%	7,167	10,000	$24,831
RING, SPACER COMPRESSOR PARENT: COLD SECTION MODULE	4045T08P01	GAT6360F	4,631.0	46.3%	53.7%	5,369	10,000	$6,052
COMPRESSOR REAR SHAFT PARENT: COLD SECTION MODULE	6080T48P01	FIA0HPTM	1,374.0	16.2%	83.8%	7,126	8,500	$63,380
GAS GEN TURBINE SHAFT PARENT: COLD SECTION MODULE	6068T44P02	GATHT0CL	2,421.0	30.3%	69.7%	5,579	8,000	$63,666
STAGE 1 BLISK PARENT: COLD SECTION MODULE	6043T56G02	GLHTWPGW	916.0	13.1%	86.9%	6,084	7,000	$80,182
STAGE 2 BLISK PARENT: COLD SECTION MODULE	6032T27P08	GLHTWN9N	916.0	13.1%	86.9%	6,084	7,000	$58,349
STAGE 3 & 4 BLISK PARENT: COLD SECTION MODULE	6038T08P04	GLHTWRM5	916.0	13.1%	86.9%	6,084	7,000	$78,011
STAGE 5 BLISK PARENT: COLD SECTION MODULE	6038T09P04	GLHTWW71	916.0	13.1%	86.9%	6,084	7,000	$41,843
STAGE 1 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T06P03	GATHK1JA	2,303.0	32.9%	67.1%	4,697	7,000	$72,086
STAGE 2 TURBINE DISK PARENT: MTCHD ROTOR/STATOR ASSY	6064T12P03	GATJ249W	2,034.0	29.1%	70.9%	4,966	7,000	$72,106
STG 1 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T09P01	GFF5GCH1	1,606.0	22.9%	77.1%	5,394	7,000	$67,296
COMPRESSOR IMPELLER PARENT: COLD SECTION MODULE	6055T59P03	GLHTM4NR	1,252.0	25.0%	75.0%	3,748	5,000	$91,758
STAGE 3 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T32P02	GATHRRML	2,619.0	52.4%	47.6%	2,381	5,000	$43,473
STAGE 4 TURBINE DISK PARENT: POWER TURBINE MODULE	6038T34P06	GATHRP6H	2,619.0	52.4%	47.6%	2,381	5,000	$57,169
POWER TURBINE SHAFT PARENT: POWER TURBINE MODULE	5125T92G01	GATHT04D	1,855.0	37.1%	62.9%	3,145	5,000	$141,980
STG 2 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	4106T80P01	GFF5EC43	1,989.0	39.8%	60.2%	3,011	5,000	$46,624
STG 2 AFT COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T07P06	GFF5EFFH	2,875.0	68.5%	31.5%	1,325	4,200	$20,404
STG 1 FWD COOLING PLATE PARENT: MTCHD ROTOR/STATOR ASSY	6064T08P03	GFF5GDN9	2,454.0	64.6%	35.4%	1,346	3,800	$28,439

Component	PN	Serial	TSN	TSN % of Engine	Value remaining
COLD SECTION MODULE	6071T25G01	GEC991743	2,894.0	100.0%	$421,896
COMBUSTION LINER	6080T13G08	GGM9C5E1	2,894.0	100.0%	$282,885
MTCHD ROTOR/STATOR ASSY	3048T90G01	MRSCS214	2,894.0	100.0%	$265,200
FUEL CONTROL (HMU)	4046T52G42	17799187	3,156.0	109.1%	$154,753
ACCESSORY MODULE	6071T27G01	GED991743	2,894.0	100.0%	$256,588
STAGE 1 NOZZLE ASSY	6071T04G32	MDK2WP4J	2,894.0	100.0%	$137,275
POWER TURBINE MODULE	6071T26G02	GEL991743	2,894.0	100.0%	$114,750
PARTICLE SEPARATOR BLOWER	6034T62P18	SUPK5484	2,894.0	100.0%	$67,076
CONTROL UNIT,SUPERVISORY,TURBINE	4082T99G12	EMDU7123	3,851.0	133.1%	$21,000
VALVE ASSEMBLY,ANTI- ICING,JET ENGINE	4046T28G14	COMH9909	3,225.0	111.4%	$14,425
NO 1 BALL BEARING PARENT: OUTPUT SHAFT ASSY	6064T34P02	FCAT0767	2,894.0	100.0%	$20,903
HISTORY RECORDER	4046T26G05	LMDH5258	2,894.0	100.0%	$20,025
O/S DRAIN VALVE ASSY	3046T17G02	APM632JG	2,894.0	100.0%	$19,437
COOLER, OIL	4046T25G06	UDDK2833	2,894.0	100.0%	$12,563
NO 2 ROLLER BEARING PARENT: OUTPUT SHAFT ASSY	5121T46P02	FCAT2057	2,894.0	100.0%	$12,360

Component	PN	Serial	TSN	TSN % of Engine	Value remaining
COLD SECTION MODULE	6071T25G01	GEC001117	3,654.0	70.9%	$421,896
COMBUSTION LINER	6080T13G08	GGM9CJ1F	3,366.0	65.3%	$282,885
MTCHD ROTOR/STATOR ASSY	3048T90G01	MRSCU994	2,038.0	39.5%	$265,200
ACCESSORY MODULE	6071T27G01	GED903998	2,147.0	41.6%	$256,588
POWER TURBINE MODULE	6071T26G02	GEL003426C	6,479.0	125.7%	$67,500
FUEL CONTROL	4046T52G27	13437220	6,302.0	122.3%	$48,392
PARTICLE SEPARATOR BLOWER	6034T62P18	GHJ02813	1,739.0	33.7%	$67,076
NOZZLE,TURBINE,AIRCRAFT GAS TURBINE EN	6071T04G29	MDK2KP7J	3,321.0	64.4%	$41,480
CONTROL UNIT,SUPERVISORY,TURBINE	4082T99G12	EDMU5460	3,965.0	76.9%	$35,700
ANTI-ICE VALVE	5066T38G07	GRTS7757	3,866.0	75.0%	$25,936
NO 1 BALL BEARING PARENT: OUTPUT SHAFT ASSY	6064T34P02	FCAL2259	5,370.0	104.2%	$12,296
HISTORY RECORDER	4046T26G05	LMDH3783	1,739.0	33.7%	$20,025
O/S DRAIN VALVE ASSY	3046T17G02	APM280JK	2,162.0	41.9%	$19,437
COOLER, OIL	4046T25G06	UDDK0367	3,301.0	64.0%	$12,563
NO 2 ROLLER BEARING PARENT: OUTPUT SHAFT ASSY	5121T46P02	FCAT2056	3,996.0	77.5%	$12,360

Insp #	Item	Type	Frequency	Completed	Next due	Life used %	Life remaining %	Status	Price	Value remaining
A160	90 DAY CORROSION INSPECTION	Calendar	90 D	31 Dec 2025	31 Mar 2026	205.6%	-105.6%	DUE	$10,152	$0
A501	MAIN ROTOR BLADE SPAR PRESSURE CHECK	Calendar	6 M	27 Aug 2025	27 Feb 2026	169.5%	-69.5%	DUE	$1,897	$0
A533	PITOT STATIC SYSTEM INSPECTION	Calendar	12 M	23 Apr 2025	23 Apr 2026	119.7%	-19.7%	DUE	$5,147	$0
A401	PMI-2	Hours	960 H	7531.8	8011.8	97.1%	2.9%	NEAR DUE	$230,000	$6,670
A673	FUEL CELL CORROSION INSPECTION	Calendar	48 M	30 Aug 2022	30 Aug 2026	96.1%	3.9%	NEAR DUE	$20,000	$780
A305	LUBRICATE ROTARY INPUTS	Hours	480 H	7531.8	8011.8	94.1%	5.9%	NEAR DUE	$10,037	$592
A665	REPLACE FUEL CELL O-RING SEAL PN MS29513-215	Calendar	48 M	18 Jan 2023	18 Jan 2027	86.4%	13.6%	NEAR DUE	$20,000	$2,720
A675	FLIGHT CONTROL RODS INSPECTION	Calendar	48 M	18 Jan 2023	18 Jan 2027	86.4%	13.6%	NEAR DUE	$20,000	$2,720
A670	CABIN TUB INSPECTION	Calendar	48 M	26 Jan 2023	26 Jan 2027	85.9%	14.1%	NEAR DUE	$20,000	$2,820
A399	PMI DUE	Calendar	48 M	26 Jan 2023	26 Jan 2027	85.9%	14.1%	NEAR DUE	$80,000	$11,280
A210	120 HOUR INSPECTION REQUIREMENTS	Hours	120 H	7891.6	8010.1	77.9%	22.1%	NEAR DUE	$12,766	$2,821
A472	REPLACE T/R SHAFT SUPPORT BEARINGS (CENTER)	Hours	2880 H	5874.3	8754.3	73.2%	26.8%	OK	$10,000	$2,680
A471	REPLACE T/R SHAFT SUPPORT BEARINGS (FWD)	Hours	2880 H	5874.3	8754.3	73.2%	26.8%	OK	$10,000	$2,680
A473	REPLACE T/R SHAFT SUPPORT BEARINGS (AFT)	Hours	2880 H	5874.3	8754.3	73.2%	26.8%	OK	$10,000	$2,680
A477	REPLACEMENT OF STABILATOR ACTUATOR BOLTS	Hours	5000 H	4418.7	9418.7	71.3%	28.7%	OK	$10,000	$2,870
A320	ENGINE INSPECTION CLEANING	Hours	480 H	7669.3	8149.3	65.5%	34.5%	OK	$2,240	$773
A400	PMI-1	Hours	960 H	7531.8	8491.8	47.1%	52.9%	OK	$125,000	$66,125
A470	REPLACE NUMBER TWO CROSSFEED VALVE	Hours	1500 H	7423.2	8923.2	37.4%	62.6%	OK	$10,000	$6,260
A110	PMS 40 HOUR INSPECTION	Hours	40 H	7972.8	8011.9	29.3%	70.7%	OK	$6,325	$4,472
A625	REPLACEMENT OF SLAB BATTERY (SLAB)	Calendar	60 M	21 Feb 2025	21 Feb 2030	27.3%	72.7%	OK	$5,000	$3,635
A296	INSPECT STABILATOR ATTACH FITTINGS	Hours	360 H	7891.6	8251.8	25.5%	74.5%	OK	$4,223	$3,146
A648	REPLACE T/R SPRING CAPSULE ASSY	Calendar	180 M	18 Jan 2023	18 Jan 2038	23.1%	76.9%	OK	$20,000	$15,380
A485	REPLACE BELLCRANK BOLT 70400-08159-105,106,1 07,108	Hours	10000 H	7051.9	17051.9	9.3%	90.7%	OK	$10,000	$9,070
A480	REPLACE PIVOT BOLT 70400-08159-101,102,103,1 04	Hours	10000 H	7051.9	17051.9	9.3%	90.7%	OK	$10,000	$9,070

This aircraft has one critical open safety item requiring immediate attention: compliance with H-60-26-SOF-02 regarding non-conforming primary main rotor servos is required prior to next flight but not to exceed 17 DEC 2025. Additionally, the aircraft is restricted from cargo hook operations due to squib removal for the BEST program, and a glide slope flag is present on the copilot's attitude indicator.

Fault 2026-01-05 7,980.0 hrs high

Open requirement to comply with non-conforming primary main rotor servos message prior to next flight but not to exceed 17 DEC 2025.

COMPLY WITH H-60-26-SOF-02 , NON-COMFORMING PRIMARY MAIN ROTOR SERVOS, PRIOR TO NEXT FLIGHT, BUT NOT TO EXCEED 17 DEC 25 | resolved: COMPLIED WITH H-60-26-SOF-02 , NON-COMFORMING PRIMARY MAIN ROTOR SERVOS, | status: closed | recorded…
Fault 2026-01-07 7,980.3 hrs high

Aircraft restricted from cargo hook operations due to removal of squib for BEST program, limiting mission capability.

RESTRICTED FROM CARGO HOOK OPERATONS DUE TO REMOVAL OF SQUIB F OR THE BEST PROGRAM | status: open | recorded 2026-01-07 @ 7980.3h
Fault 2025-09-07 7,952.3 hrs high

Glide slope flag present on copilot's attitude indicator, affecting instrument flight capability.

GLIDE SLOPE FLAG PRESENT ON COPILOTS ATTITUDE INDIDCATOR | status: open | recorded 2025-09-07 @ 7952.3h
Fault 2025-07-31 7,949.0 hrs high

Aircraft restricted from use of windshield wipers due to copilot windshield wiper converter and cable not functioning properly.

RESTRICTED FROM USE OF WINDSHIELD WIPERS DUE TO CO-PILOT WINDS HIELD WIPER CONVERTER AND CABLE NOT FUNCTIONING PROPERLY. REQU IRES REPLACEMENT. | resolved: REPLACED CONVERTER AND FLEX HOSE ASSEMBLY | status: closed | recorded 2025-07-31 @…
Fault 2025-08-15 7,949.0 hrs high

Aircraft restricted from GPS navigation due to 128D screen not powering on, limiting navigation capability.

AIRCRAFT RESTRICTED FROM GPS NAVIGATION DUE TO 128D SCREEN NOT POWERING ON. | resolved: CDU SN: 0442C removed and replaced with CDU SN: 1812 due t o Control Exchange to AIRCRAFT UH-60L 9326519. Control Exc hange # 25234002 see DA…

This aircraft has one critical open item: an aft cabin floor section with a front L/H corner that is cracked around hardware. Additional open items include torn upper cabin door seals, loose rivets on HIRSS exhaust suppressor cores, and an open pilot's aft outboard seat resilient mount that is torn.

Fault 2025-05-06 7,931.6 hrs high

Aft cabin floor section front L/H corner is cracked around hardware, requiring structural repair.

AFT CABIN FLOOR SECTION, FRONT L/H CORNER CRACKED AROUND HDWR [WP0456] | status: open | recorded 2025-05-06 @ 7931.6h
Fault 2025-03-11 7,902.6 hrs high

R/H upper cabin door seal is torn and requires replacement.

R/H UPPER CABIN DOOR SEAL TORN. PN: 70217-02721-151 | status: open | recorded 2025-03-11 @ 7902.6h
Fault 2025-03-11 7,902.6 hrs high

L/H upper cabin door seal is torn and requires replacement.

L/H UPPER CABIN DOOR SEAL TORN. PN: 78286/70217-02721-140 | status: open | recorded 2025-03-11 @ 7902.6h
Fault 2025-05-06 7,931.6 hrs high

Number 2 HIRSS exhaust has 2 loose rivets on suppressor core requiring repair.

#2 HIRSS EXHAUST 2EA LOOSE RIVETS ON SUPRESSOR CORE [WP0715] | status: open | recorded 2025-05-06 @ 7931.6h
Fault 2025-05-06 7,931.6 hrs high

Number 1 HIRSS exhaust has 4 loose rivets on suppressor core requiring repair.

#1 HIRSS EXHAUST 4EA LOOSE RIVETS ON SUPRESSOR CORE [WP0715] | status: open | recorded 2025-05-06 @ 7931.6h
Fault 2025-05-06 7,931.6 hrs high

Pilot's aft outboard seat resilient mount is torn and requires replacement.

PILOTS AFT OUTBOARD SEAT RESILIENT MOUNT TORN [WP0402] | status: open | recorded 2025-05-06 @ 7931.6h

This aircraft has multiple open Aviation Safety Action Messages requiring compliance. Critical items include H-60-26-SOF-02 (non-conforming primary main rotor servos) due by 17 DEC 2025, H-60-25-ASAM-10 (pilot/copilot seat harness replacement) due by 31 JAN 26, and H-60-25-ASAM-09 (hydraulic reservoir pumping unit filter replacement) due at 8011.9 aircraft hours. The aircraft also has an open H-60-22-AMAM-08 (NAS1304 bolt inspection) due 14 JUL 2026.

Fault 2026-01-05 7,980.0 hrs high

H-60-26-SOF-02 non-conforming primary main rotor servos compliance required prior to next flight but not to exceed 17 DEC 2025.

COMPLY WITH H-60-26-SOF-02 , NON-COMFORMING PRIMARY MAIN ROTOR SERVOS, PRIOR TO NEXT FLIGHT, BUT NOT TO EXCEED 17 DEC 25 | resolved: COMPLIED WITH H-60-26-SOF-02 , NON-COMFORMING PRIMARY MAIN ROTOR SERVOS, | status: closed | recorded…
Fault 2025-07-09 7,940.8 hrs high

H-60-25-ASAM-10 pilot and copilot seat harness assembly replacement due 22 JUL 2025, extended to 31 JAN 26.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-10 DESCRIPTION: PILOT AND COPILOT SEAT HARNESS ASSEMBLY REPLACEMENT. IS DUE: 22 JUL 202 5 CALENDAR | resolved: COMPLIED WITH H-60-25-ASAM-10 DESCRIPTION: PILOT AND COPIL OT SEAT HARNESS ASSEMBLY…
Fault 2025-07-08 7,940.8 hrs high

H-60-25-ASAM-10 copilot seat harness assembly requires replacement no later than 31 JAN 26.

COPILOT SEAT HARNESS ASSEMBLY REQUIRES REPLACEMENT IAW H-60-25 -ASAM-10 NO LATER THAN 31 JAN 26 | resolved: SEAT BELT HARNESS HAS BEEN REPLACED WITH NSN:01-708-4299 I AW H-60-25-ASAM-10 | status: closed | recorded 2025-07-08 @ 7940.8h |…
Fault 2025-07-08 7,940.8 hrs high

H-60-25-ASAM-10 pilot seat harness assembly requires replacement no later than 31 JAN 26.

PILOT SEAT HARNESS ASSEMBLY REQUIRES REPLACEMENT IAW H-60-25-A SAM-10 NO LATER THAN 31 JAN 26 | resolved: SEAT BELT HARNESS HAS BEEN REPLACED WITH NSN:01-708-4299 I AW H-60-25-ASAM-10 | status: closed | recorded 2025-07-08 @ 7940.8h |…
Fault 2025-07-22 7,949.0 hrs high

H-60-25-ASAM-09 hydraulic reservoir pumping unit filter requires replacement at 8011.9 aircraft hours not to exceed 22 JUL 2025.

Hydraulic Reservior Pumping Unit Filter Requires replacment pe r H-60-25-ASAM-09 at (8011.9) aircraft hours not to exceed 31 JAN 26 | status: open | recorded 2025-07-22 @ 7949h
Fault 2022-10-14 7,531.8 hrs high

H-60-22-AMAM-08 NAS1304 bolt inspection is due 14 JUL 2026 calendar.

SAFETY MESSAGE NUMBER: H-60-22-AMAM-08 DESCRIPTION: NAS1304 BO LT INSPECTION. IS DUE: 14 JUL 2026 CALENDAR | status: open | recorded 2022-10-14 @ 7531.8h
Fault 2025-04-28 7,931.6 hrs high

H-60-25-ASAM-07 reliability enhanced stabilator actuator inspection compliance required.

SAFETY MESSAGE NUMBER: H-60-25-ASAM-07 DESCRIPTION: "COMPLY WI TH H-60-25-ASAM-07, RELIABILITY ENHANCED STABILATOR ACTUATOR I NSPECTION, PRIOR TO NEXT FIGHT, BUT NOT TO EXCEED 01 MAY 25.". IS DUE: 01 MAY 2025 CALENDAR | resolved: "Complied…
Fault 2025-08-15 7,949.0 hrs high

H-60-25-ASAM-11 main landing gear axle radial movement inspection due at 8011.8 aircraft hours at next 120-hour inspection.

Comply with H-60-25-ASAM-11, Main Landing Gear Axle Radial Mov ement Inspection, at [8011.8] aircraft hours at the NEXT sched uled Preventive Maintenance Inspection (PMI), but not to excee d 14 AUG 27. | status: open | recorded 2025-08-15…

This aircraft is approaching several component life limits and has been inducted into the BEST program as of 06 APR 2026. Three major gearboxes (APU, intermediate gearbox, and tail rotor gearbox) require oil samples prior to next flight due to incomplete records. The tail rotor gearbox sight glass is staining and requires monitoring. Multiple components are nearing scheduled replacement intervals.

Fault 2026-04-28 7,983.6 hrs high

Auxiliary power unit requires oil sample prior to next flight due to incomplete records.

AUXILIARY POWER UNIT SN: SPE102184 REQUIRES OIL SAMPLE PRIOR T O NEXT FLIGHT DUE TO INCOMPLETE RECORDS | status: open | recorded 2026-04-28 @ 7983.6h
Fault 2026-04-28 7,983.6 hrs high

Intermediate gear box requires oil sample prior to next flight due to incomplete records.

INTERMEDIATE GEAR BOX SN: A00501354 REQUIRES OIL SAMPLE PRIOR TO NEXT FLIGHT DUE TO INCOMPLETE RECORDS | status: open | recorded 2026-04-28 @ 7983.6h
Fault 2026-04-28 7,983.6 hrs high

Tail rotor gear box requires oil sample prior to next flight due to incomplete records.

TAIL ROTOR GEAR BOX SN: A00600861 REQUIRES OIL SAMPLE PRIOR TO NEXT FLIGHT DUE TO INCOMPLETE RECORDS | status: open | recorded 2026-04-28 @ 7983.6h
Fault 2025-04-22 7,919.8 hrs medium

Tail rotor gear box sight glass is staining and oil level is still visible but requires continued monitoring.

Tail rotor gear box sight glass is staining. Oil level is stil l visible. Continue to monitor. | status: open | recorded 2025-04-22 @ 7919.8h
Fault 2026-04-23 7,983.6 hrs high

Aircraft inducted into BEST Program on 06 APR 2026 with no DA 2408-18 scheduled maintenance performed after this date.

Aircraft inducted into the BEST Program on 06-APR-2026. No DA 2408-18 scheduled maintenance performed after this date. | status: open | recorded 2026-04-23 @ 7983.6h
Fault 2025-08-27 7,949.0 hrs high

Second 40-hour torque check on L/H stabilator attachment fitting hardware required at aircraft hours 7971.6 due to replacement.

INSPECTION MANUALLY GENERATED ON 27 AUG 2025. INSP A298 LUBRIC ATE TAIL WHEEL BEARINGS FOR HELICPTR UTIL UH-60L CAGE: 78286 P N: UH-60L NSN: 1520012984532 SN: 9326482 IS DUE. STATUS WILL U PGRADE TO X ON: 8434.0 AIRCRAFT HOURS OR 22 SEP…
Fault 2025-09-11 7,972.8 hrs high

Third 40-hour torque check on L/H stabilator attachment fitting hardware required at aircraft hours 8012.8 due to replacement.

THIRD 40 HR TQ CHECK ON LH STABILATOR ATTACHMENT FITTING HDWR REQUIRED AT ACFT HRS 8012.8 DUE TO REPLACEMENT IAW WP 0280 UN DER "Stabilator Hinge Fitting Torque Check" | resolved: COMPLETED IN CONJUNCTION WITH 40 HR INSP AND PASSED |…

NOTICE TO BUYER: Multiple items have been removed from this aircraft at the direction of the U.S. Government for the BEST program induction. Removed components include cargo hook squib (restricting cargo hook operations), FM1 radio (removed for BEST program induction), and various other mission-essential equipment. The aircraft was inducted into the BEST Program on 06 APR 2026, and no scheduled maintenance has been performed after this date.

Fault 2026-04-17 7,983.6 hrs high

Notice to buyer entry states items have been removed from aircraft at direction of U.S. Government.

NOTICE TO BUYER: The following items have been removed from th e aircraft at the direction of the U.S. Government; to include but not limited to: CMWS JUNCTION BOC; SA-26669/ALE-47 (V) CM WS SEQUENCER; SENSOR ELECTRO-OPTIC MISSLE…
Fault 2026-01-07 7,980.3 hrs high

Aircraft restricted from cargo hook operations due to removal of squib for BEST program.

RESTRICTED FROM CARGO HOOK OPERATONS DUE TO REMOVAL OF SQUIB F OR THE BEST PROGRAM | status: open | recorded 2026-01-07 @ 7980.3h
Fault 2025-06-26 7,939.3 hrs high

FM1 radio component removed for induction into BEST program.

FM1 WILL RECEIVE BUT NOT TRANSMIT. | resolved: component removed for induction into BEST program. | status: closed | recorded 2025-06-26 @ 7939.3h | closed 2026-03-03 @ 7983.6h
Fault 2026-04-23 7,983.6 hrs high

Aircraft inducted into BEST Program on 06 APR 2026 with no DA 2408-18 scheduled maintenance performed after this date.

Aircraft inducted into the BEST Program on 06-APR-2026. No DA 2408-18 scheduled maintenance performed after this date. | status: open | recorded 2026-04-23 @ 7983.6h
Fault 2026-01-13 7,983.6 hrs high

Aircraft prepared for lateral transfer to ASF Hood with multiple components removed as documented in 13-2 forms.

ACFT PREPARED FOR LATERAL TRANSFER TO ASF HOOD. SEE 13-2'S FOR FOLLOWING COMPONENTS RMVD. | resolved: COMPONENTS RMVD | status: closed | recorded 2026-01-13 @ 7983.6h | closed 2026-01-13 @ 7983.6h
Fault 2026-01-13 7,983.6 hrs high

Blanking plates required on areas where components were removed for ASF Hood lateral transfer.

BLANKING PLATES REQUIRED ON AREAS COMPONENTS WERE RMVD FOR ASF HOOD LATERAL TRANSFER. | resolved: HDWR AND CANNON PLUGS COVERED ALONG W/ BLANKING PLATES. RE FER TO 13-1 "LATERAL TRANSFER COMPONENT REMOVAL" FOR LOCAT IONS COVERED. | status:…

This aircraft has several administrative data-quality issues including multiple entry errors that were corrected, missing toolbox inventory numbers on maintenance forms, and incomplete records requiring oil samples for three major gearboxes. Several entries were made in error and subsequently closed, indicating potential record-keeping inconsistencies.

Fault 2025-11-05 7,980.0 hrs Entry error high

Entry error for MLG service requirement was entered in error and subsequently closed.

[ENTRY ERROR] MLG REQUIRES SERVICE | resolved: ENTERRED IN ERROR | status: closed | recorded 2025-11-05 @ 7980h | closed 2025-11-10 @ 7980h
Fault 2025-11-05 7,980.0 hrs Entry error high

Entry error for MLG service requirement was entered in error and subsequently closed.

[ENTRY ERROR] MLG REQUIRES SERVICE | resolved: ENTERRED IN ERROR | status: closed | recorded 2025-11-05 @ 7980h | closed 2025-11-10 @ 7980h
Fault 2025-11-05 7,980.0 hrs Entry error high

Entry error for MLG service requirement was entered in error and subsequently closed.

[ENTRY ERROR] MLG REQUIRES SERVICE | resolved: ENTERRED IN ERROR | status: closed | recorded 2025-11-05 @ 7980h | closed 2025-11-10 @ 7980h
Fault 2025-04-15 7,915.1 hrs Entry error high

Entry error for pilot headrest torn was entered in error and subsequently closed.

[ENTRY ERROR] #2 SIDE PILOT HEADREST TORN | resolved: ENTERED IN ERROR | status: closed | recorded 2025-04-15 @ 7915.1h | closed 2025-04-15 @ 7915.1h
Fault 2025-08-15 7,949.0 hrs Entry error medium

Entry error for CDU removal due to controlled exchange was closed in error by maintenance.

[ENTRY ERROR] CDU REMOVED DUE TO CONTROLLED EXCHANGE WITH AIRCRAFT UH-60L - 8926180 | resolved: CLOSED IN ERROR BY Liles, Bryan SGT Entry made in error. | status: closed | recorded 2025-08-15 @ 7949h | closed 2025-08-15
Fault 2025-06-05 7,933.3 hrs Entry error high

Entry error for 9-11 hour torque checks required on main rotor pitch control rod jamnuts was entered in error.

[ENTRY ERROR] 9-11 HOUR TQ CHECKS REQUIRED ON ALL M/R PC ROD JAMNUTS DUE TO TRACK AND BALANCE | resolved: WRITE UP ENTERED IN ERROR | status: closed | recorded 2025-06-05 @ 7933.3h | closed 2025-06-06 @ 7933.3h
Fault 2025-10-13 7,973.8 hrs Entry error high

Entry error for inspection manually generated for engine history recorder readings was entered in error.

[ENTRY ERROR] INSPECTION MANUALLY GENERATED ON 13 OCT 2025. INSP A100 LH/RH ENGINE HISTORY RECORDER READINGS DUE FOR HELICPTR UTIL UH-60L CAGE: 78286 PN: UH-60L NSN: 1520012984532 SN: 9326482 IS DUE. STATUS WILL UPGRADE TO X ON: 18 NOV…
Fault 2026-04-28 7,983.6 hrs high

Auxiliary power unit requires oil sample prior to next flight due to incomplete records.

AUXILIARY POWER UNIT SN: SPE102184 REQUIRES OIL SAMPLE PRIOR T O NEXT FLIGHT DUE TO INCOMPLETE RECORDS | status: open | recorded 2026-04-28 @ 7983.6h
Fault 2026-04-28 7,983.6 hrs high

Intermediate gear box requires oil sample prior to next flight due to incomplete records.

INTERMEDIATE GEAR BOX SN: A00501354 REQUIRES OIL SAMPLE PRIOR TO NEXT FLIGHT DUE TO INCOMPLETE RECORDS | status: open | recorded 2026-04-28 @ 7983.6h
Fault 2026-04-28 7,983.6 hrs high

Tail rotor gear box requires oil sample prior to next flight due to incomplete records.

TAIL ROTOR GEAR BOX SN: A00600861 REQUIRES OIL SAMPLE PRIOR TO NEXT FLIGHT DUE TO INCOMPLETE RECORDS | status: open | recorded 2026-04-28 @ 7983.6h

Records Search

Risk Analysis

Custom Analysis
